3

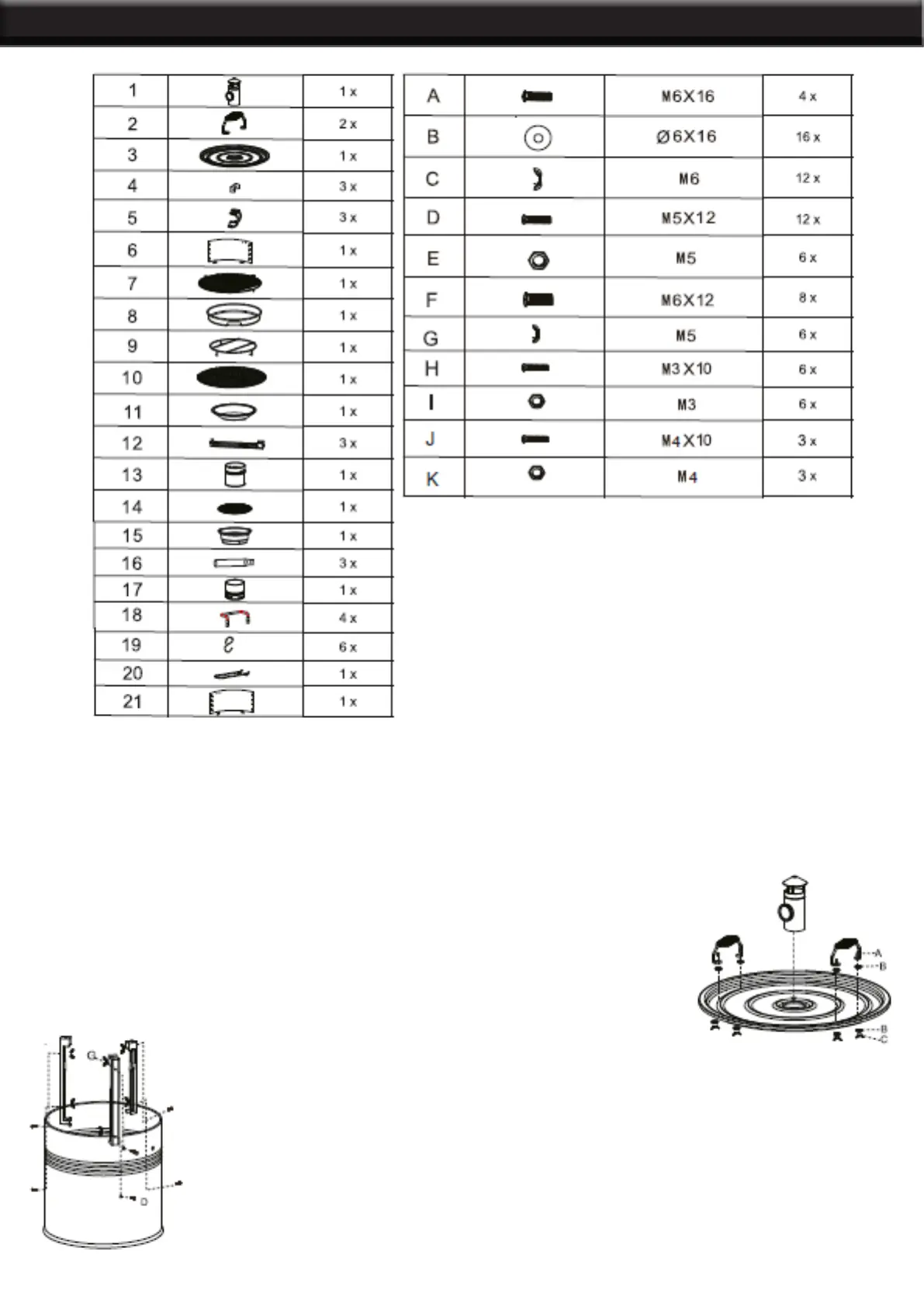

PARTS and ASSEMBLY
ASSEMBLY:
1. Take the device out of the packaging and remove any lms and stickers that may be present. Check the
device for any transport damage. If you nd any damage, do not operate the grill.
2. Set up all parts on a dry, at, solid surface.
3. Attach both lid handles (2) to the lid (3). Place two washers (B) and 1 lid handle
on the pre-punched holes. Push through two screw (A) from above and secure
each of them from below with 1 washer (B) and 1 wing nut (C). Proceed in exactly
the same way for the second lid handle.
4. Attach the holders (12) for the smoking rack (9) and the fat collecting tray (11)
in the upper drum (13). Place 1 holder on the inside in the pre-punched holes and
secure it with 2 screws (D) from the outside and 2 wing nuts (G) from the inside.
Proceed in exactly the same way for the remaining holders.
