1.3 HANDLING AND LIFTING THE GEARBOXES
GEARBOX
CE
Size
11
12
13-13+
14 - 15
16
18
20
Eyebolt hole dimension
M10
M10
M10
M12
M12
M12
M20
Approximate weight (kg)
(depending on motor flange)
45
50
80
90
190/230
190/230
190/230

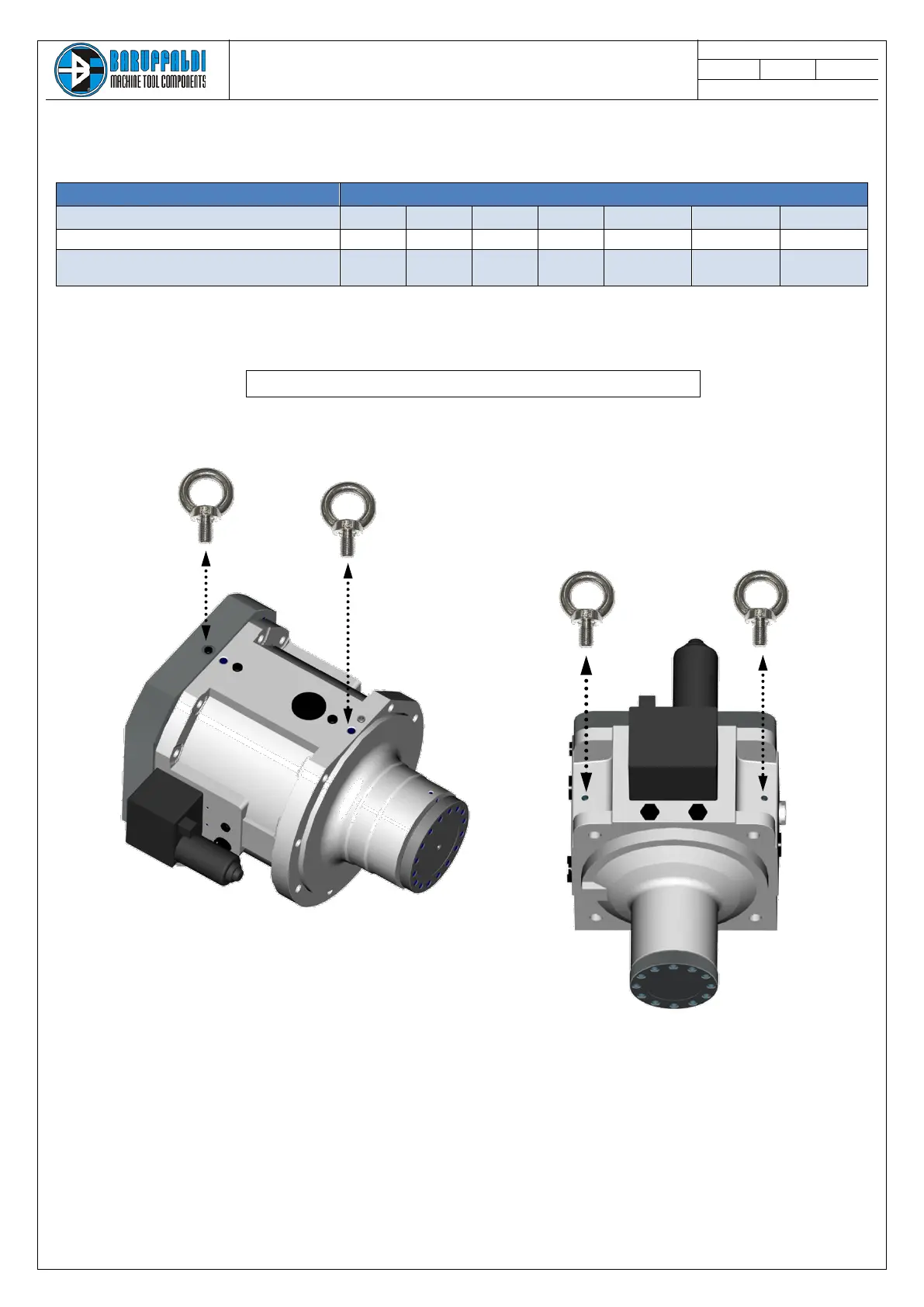

Use the holes shown below for gearbox lifting
