Mechanical mounting
Attention: the hole at the bottom is designed to drain the water. Do not
intentionally close it. Also it is necessary to make a drain for water at the
bottom of the niche which will serve to divert water out.

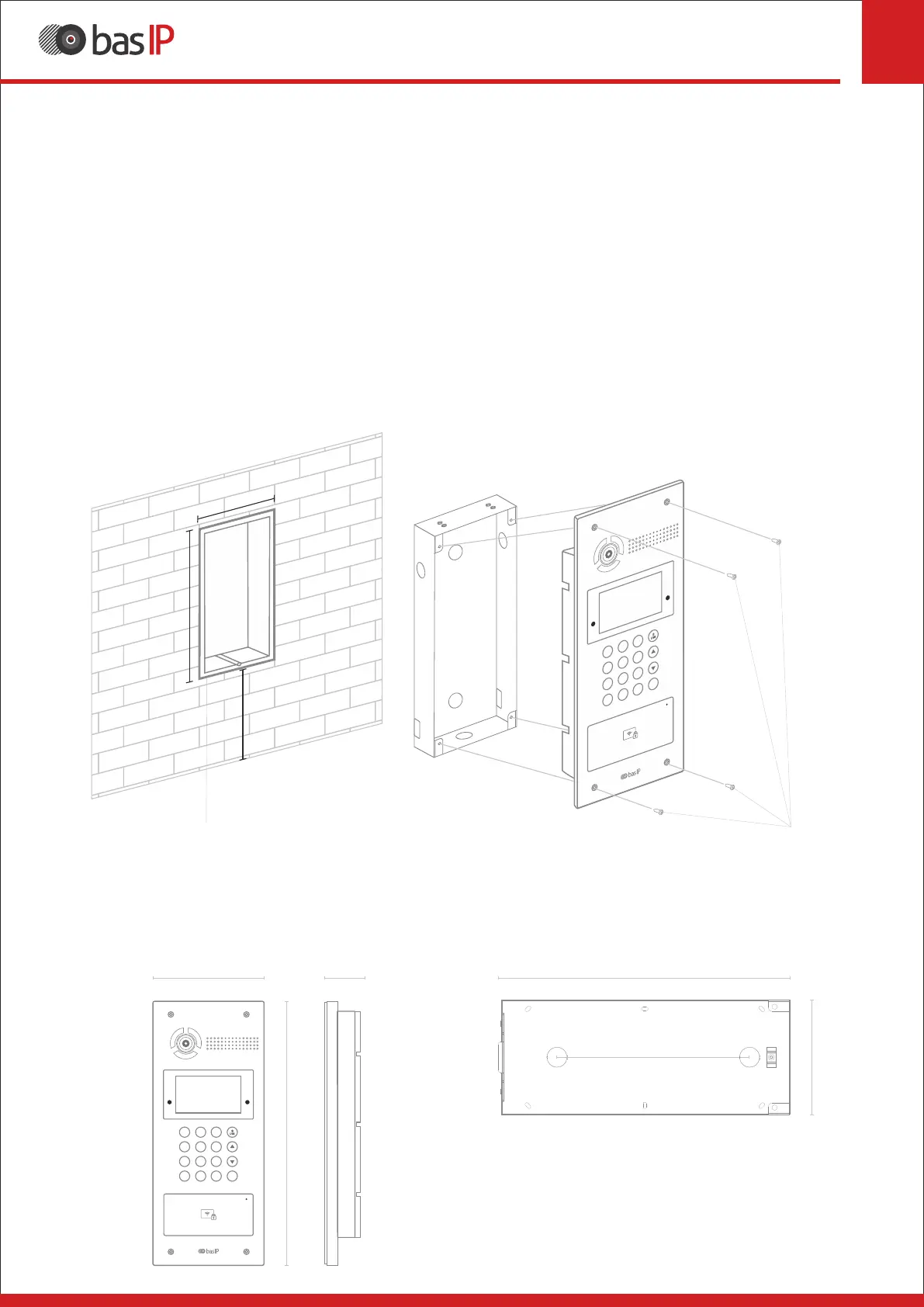

Before installation of the outdoor panel it is necessary to provide a hole or a
recess into a wall with dimensions 143×353x61 mm (for flush mount)
dimensions of the bracket (mounting box) = 141×351×60 mm.
It is also necessary to provide supply of a power cable, additional modules and
the local network.
Outdoor Panel
Flush Bracket
351 mm
141 mm
Niche ScrewsOutdoorPanel
143 mm
353 mm
10
9
-
1
30
cm
5
Eng
155 mm
375 mm
55 mm
1
2
3
4
5
6
7 8 9
0
*
#
T
239 mm
1
2
3
4
5
6
7
8
9
0
*
#
T
Flush Bracket
