BAS C3 - C3 Back Panel Layout

Back Panel Controls and
Connections
1. Cell Lead Connector.
2. Remote Connector. 25-pin D connector for remote control of C3
3. Gas Inlet Connector for Cell Purging. Bulkhead fitting providing connection to
external gas source. NOTE: 5 psi maximum.
4. Thumb screws
5. Fuse Holder.
6. Power On/Off Switch.
7. Power Cord. Be sure that the 3-prong power cord is connected to a grounded circuit.

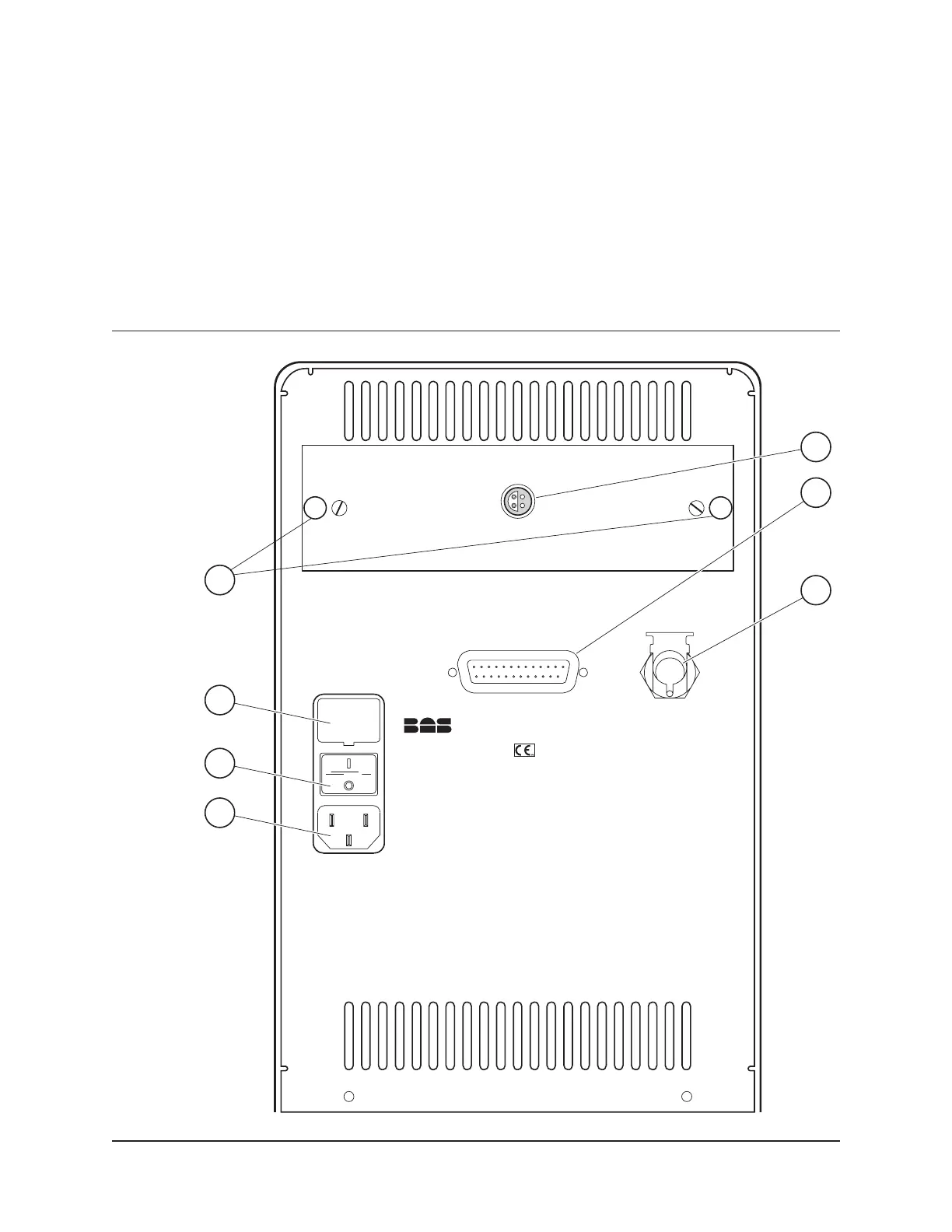

Figure 2. Back Panel
2.0 Amp Slow Blow
100-240 VAC 50/60 Hz
FUSES:
C3 Cell Stand
Bioanalytical Systems, Inc.
Made in USA
REMOTE
CELL
Disconnect Power Before Removing Fuses.
No User Serviceable Parts Inside. DO NOT
Remove Cover. Refer Servicing To Factory
Personnel.
CAUTION:
GAS INLET
5 psi max
5
4
6
7
1
2
3
Section 3. Installation
6
