BAS C3 - C3 Electrode Lead Connections

Electrode Leads
The electrode lead wires extend through the front panel. The connectors are the
spring-loaded, press-on type. Simply push the connector over the corresponding pin in the
electrode to make the connection (Figure 7). Each wire is color coded to the electrode it
attaches. The code is:
Black .........Working Electrode
White ........ Reference Electrode
Red..........Auxiliary Electrode
Alligator clips with the appropriate pin and colored boot are included for connection to
electrodes that cannot be connected to the sockets on the cell lead.

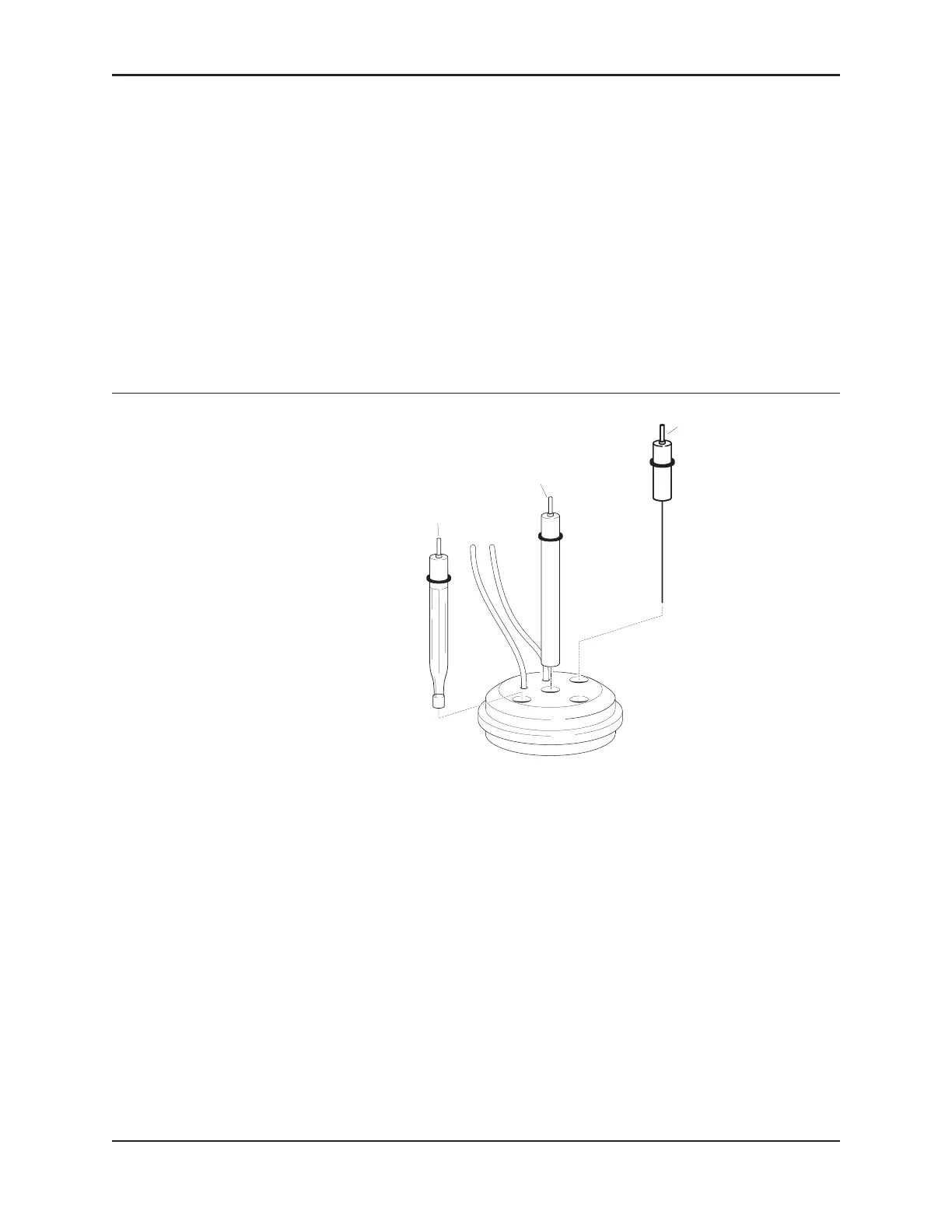

Figure 7. Electrode Lead Connections
CONNECT TO BLACK
(WORK) LEAD
CONNECT TO
RED (AUX) LEAD
CONNECT TO WHITE
(REF) LEAD
Section 3. Installation
11
