ZENITH SERIES
6
EXPANDABLE/RETRACTABLE SLEEP DECK SUPPLEMENTAL MANUAL
GF Health Products, Inc. - www.grahamfield.com Expandable/Retractable Sleep Deck Supplement 999-0881-190D JANUARY 2014
SLEEP DECK POSITIONING - FOLLOW ALL INSTRUCTIONS
1. Your Expandable/Retractable Sleep Deck can be set into three
widths: Fully Retracted = 35.00”; Expanded Partly = 39.00”; and
Fully Expanded = 42.00”.

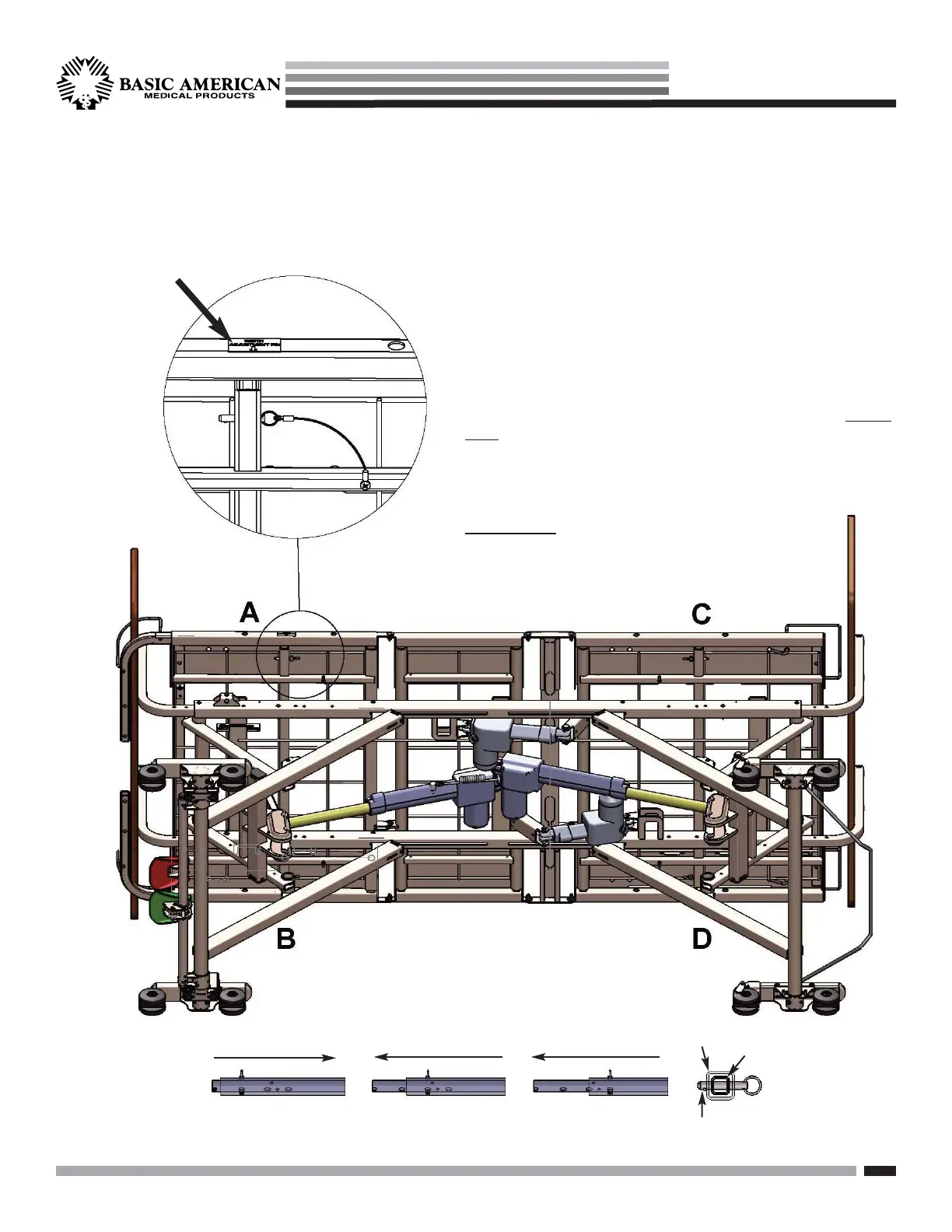

2. To adjust the deck positions, first remove all four quick-release
“detent” pins from the underside of both Head and Foot Decks
by simply pulling out the pins by the small rings. Each detent
pin is attached to a lanyard (cord) which is connected to a screw
on the underside of the decks to prevent misplacement (Please
see illustrations below and at left).
3. Grab the entire left or right side of the expandable decks (not the
ends) and either pull out toward you to expand or push inward
to center to retract. On the underside, line up the desired hole
position on the decks’ insert tubes with the single hole in the
ends of the mainframe cross tubes (See below).
4. IMPORTANT
: Reinsert the detent pins in all four
locations (A - D), making sure the ball at the end
of the Detent Pin extends through the other side
of all four mainframe position holes.
IT IS RECOMMENDED TO FIRST REMOVE
YOUR MATTRESS AND ASSIST DEVICES
PRIOR TO ADJUSTING YOUR BED. PATIENT
SHOULD NEVER BE IN THE BED DURING
ADJUSTMENT!
Labels on side of decks
indicate location of 4
removable detent pins.
35.00” Position
Fully Retracted
39.00” Position
Partially Extended
42.00” Position
Fully Extended
Ball of Detent Pin
Mainframe Tube
Deck Tube
