Basler acA2440-75 - Page 91

AW00123409000 Physical Interface
Basler ace USB 3.0 81
For more information about GPIO pin assignments and pin numbering, see Section 5.2.1 on
page 68.
For more information about setting the GPIO line operation, see Section 5.11 on page 91 and
Section 5.12 on page 95.

6-pin
Receptacle

6-pin
Receptacle

+3.3 VDC
(Typical)
1
6
3
4
2
5
Camera
Logic Gate
Input Buffer
FPGA Input
Ground for
Direct-coupled
GPIO

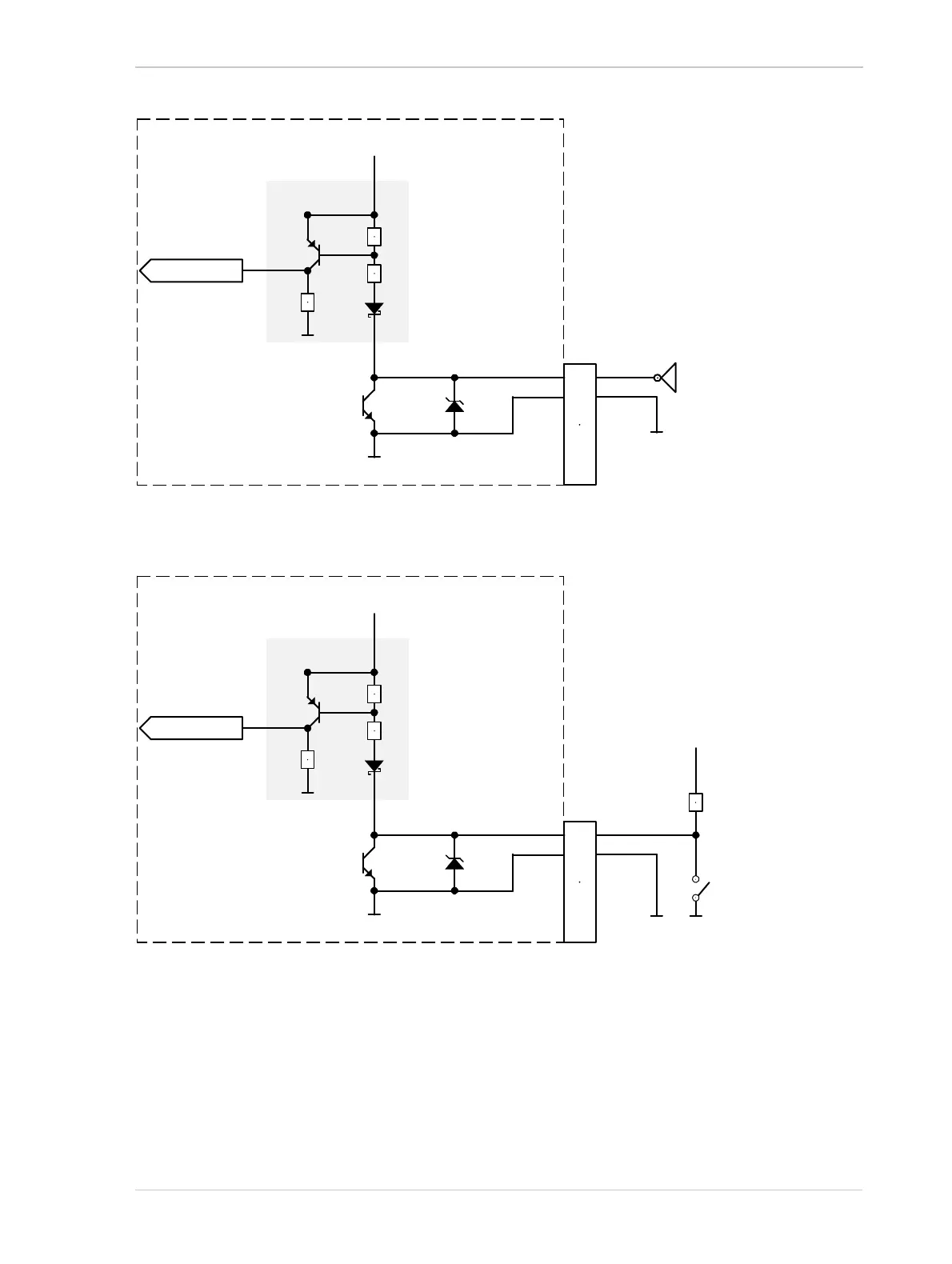

Fig. 43: Direct-coupled GPIO Line Schematic with the GPIO Line Set as an Input and with a Typical External Circuit
Using a Logic Gate (Illustration for Pin 1 as an Example; Simplified)
FPGA Input
6-pin
Receptacle
+3.3 VDC
(Typical)
1
6
3
4
2
5
Camera
Input Buffer
+3.3 V ... +5.0 V
Ground for
Direct-
coupled
GPIO
Fig. 44: Direct-coupled GPIO Line Schematic with the GPIO Line Set as an Input and with a Typical External Circuit
(Illustration for Pin 1 as an Example; Simplified)
