9424200772 Rev D 13
BE1-11 Quick Start Guide

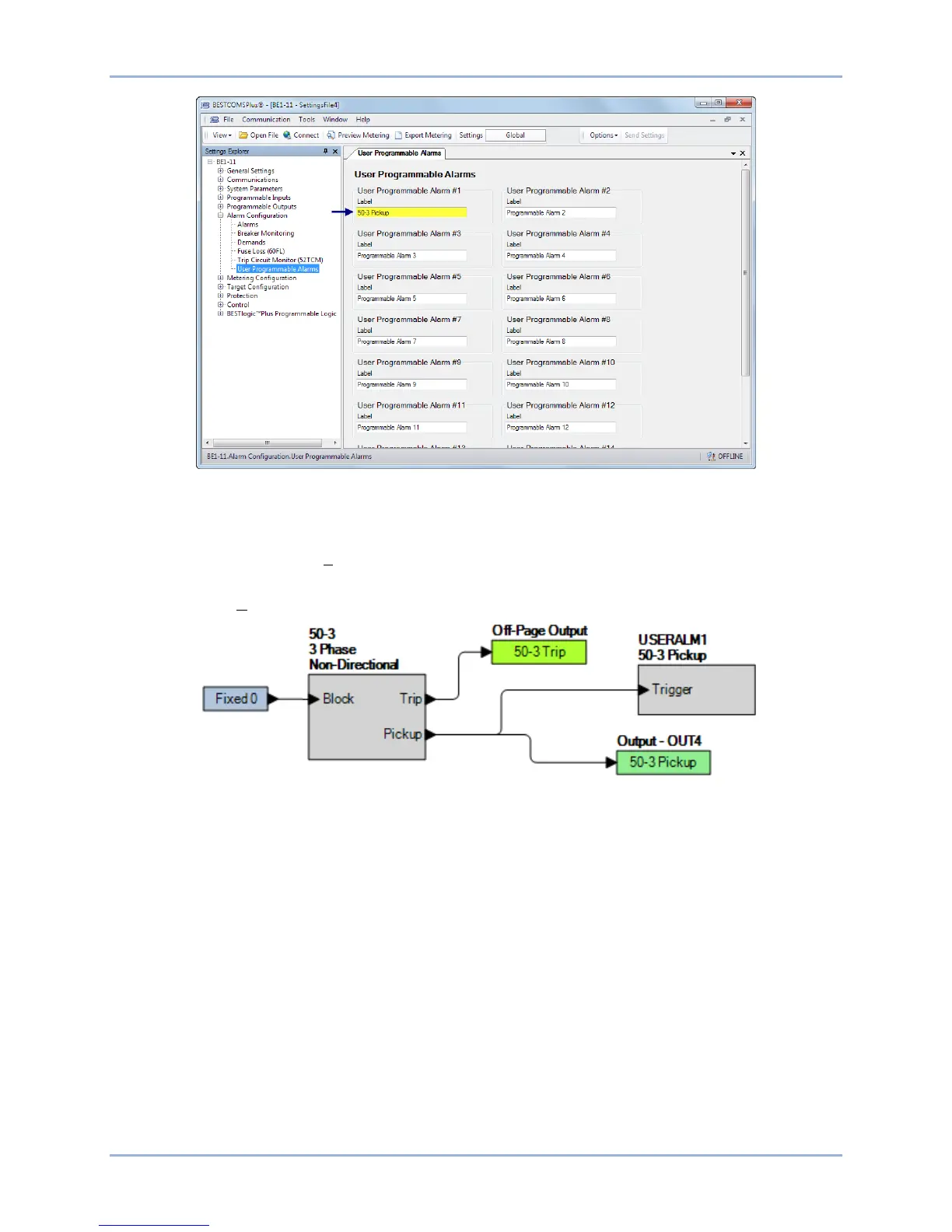

Figure 20. User Programmable Alarms Screen
Step 15: Figure 21 shows the user-defined labels of OUT4 and USERALM1 that were named in Step 13
and Step 14.
Step 16: Select Save from the File pull-down menu to save your new settings file.
Step 17: To make your new settings active in the BE1-11, select Upload Settings and Logic to Device
from the Communication pull-down menu. Enter the username and password.
Figure 21. OUT4 and USERALM1 with User-Defined Labels
