A-2 BE1-50/51B Time Characteristic Curves 9252000991 Rev N

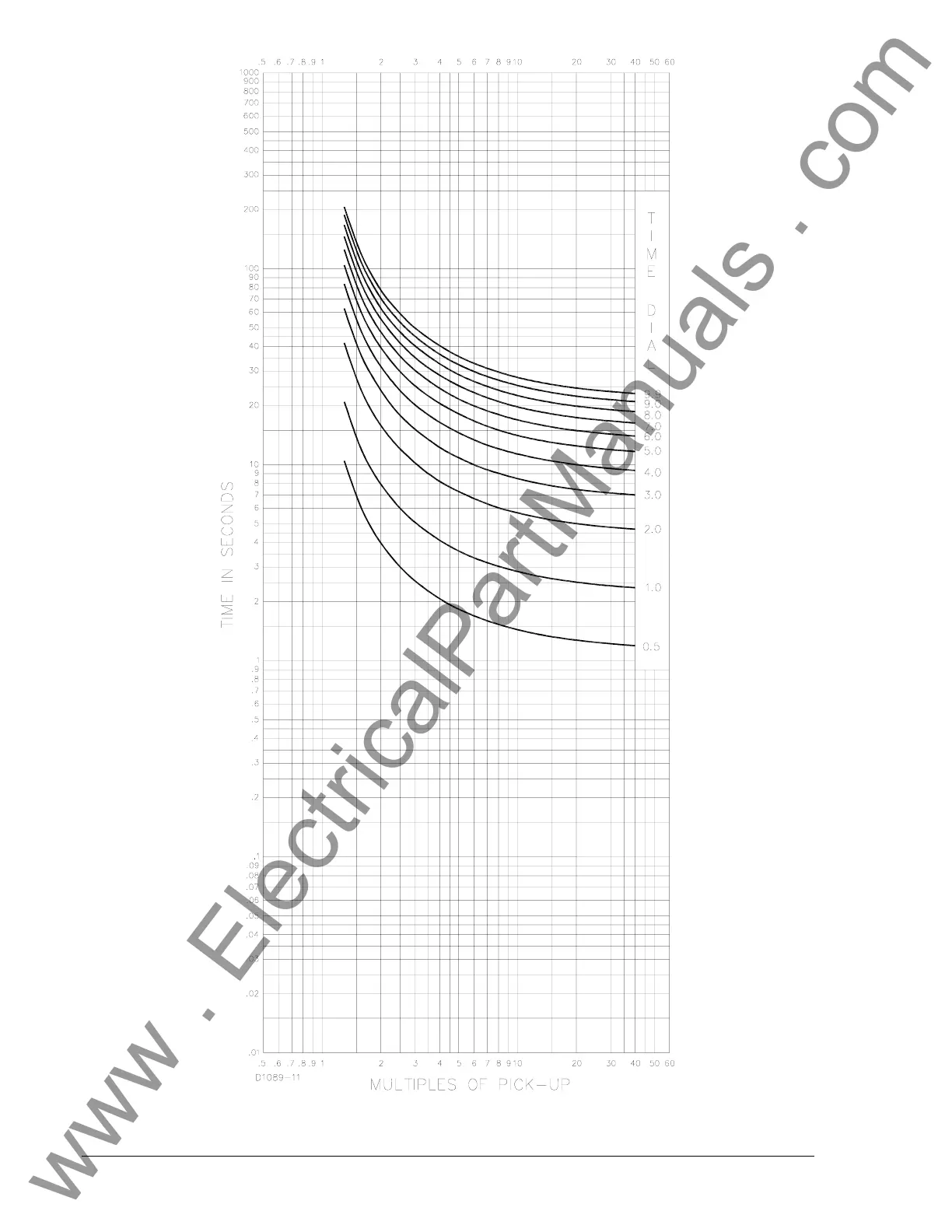

Figure A-2. Time Characteristic Curve, L-Long Inverse
(SW3-3 OFF, Similar to ABB CO-5)
www . ElectricalPartManuals . com
