A-6 BE1-50/51B Time Characteristic Curves 9252000991 Rev N

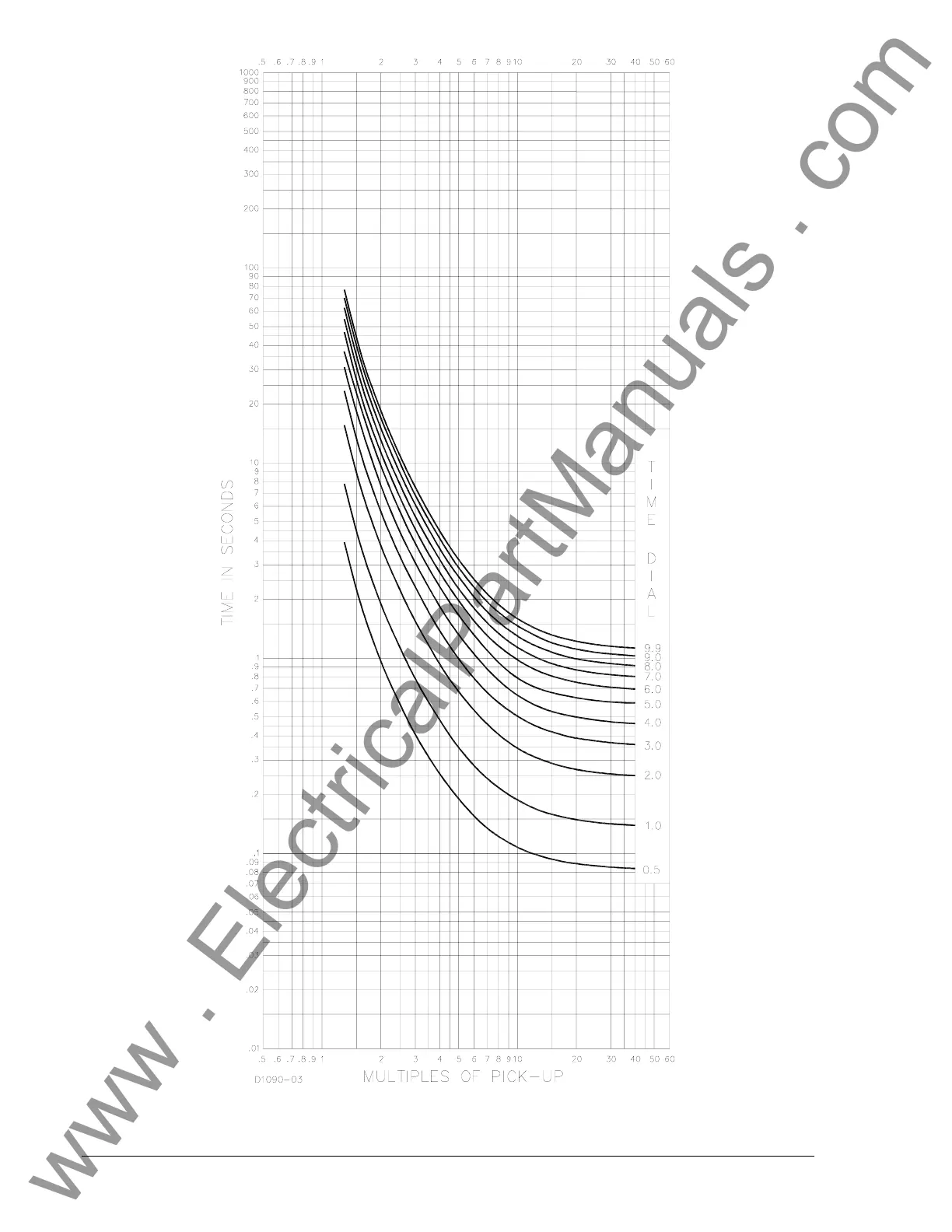

Figure A-6. Time Characteristic Curve, V-Very Inverse
(SW3-3 OFF, Similar to ABB CO-9)
