A-10 BE1-50/51B Time Characteristic Curves 9252000991 Rev N

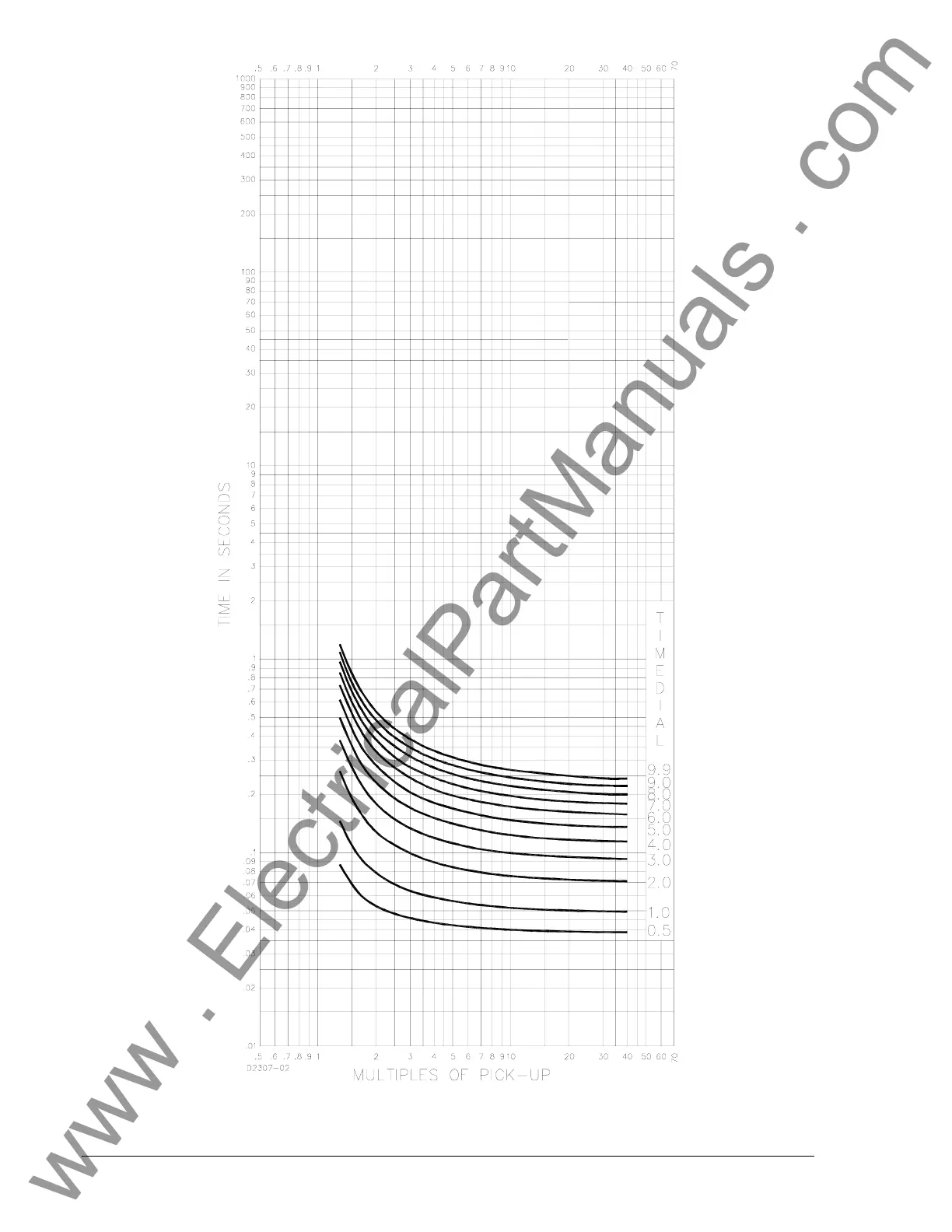

Figure A-10. Time Characteristic Curve, S2-Short Inverse
(SW3-3 ON, Similar to GE IAC 55)
