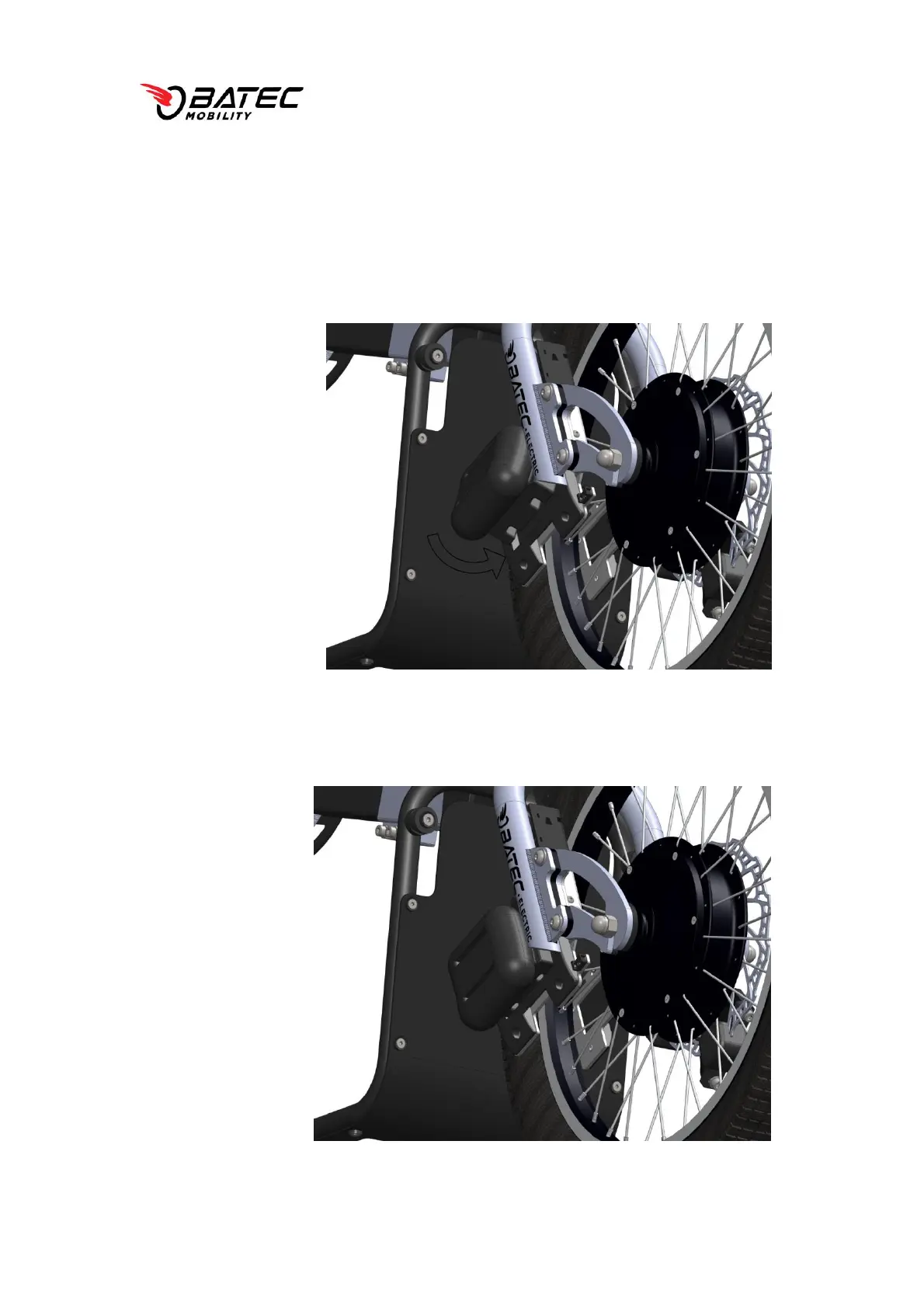

To inse
rt the weight
s:
1)
Hold
the
weight
with
one
hand.
Tilt
it
slight
ly
and
insert
the
two
tabs into the
weight m
ount slot.
2)
Push the
bottom
of the weight
inward u
ntil it cli
cks int
o place.
