4.14. USING BATEC
QUAD HYBRID
CONTROLS
4.14.1. BA
TEC QUA
D GRIPS
of BATEC
QUAD HYBRI
D

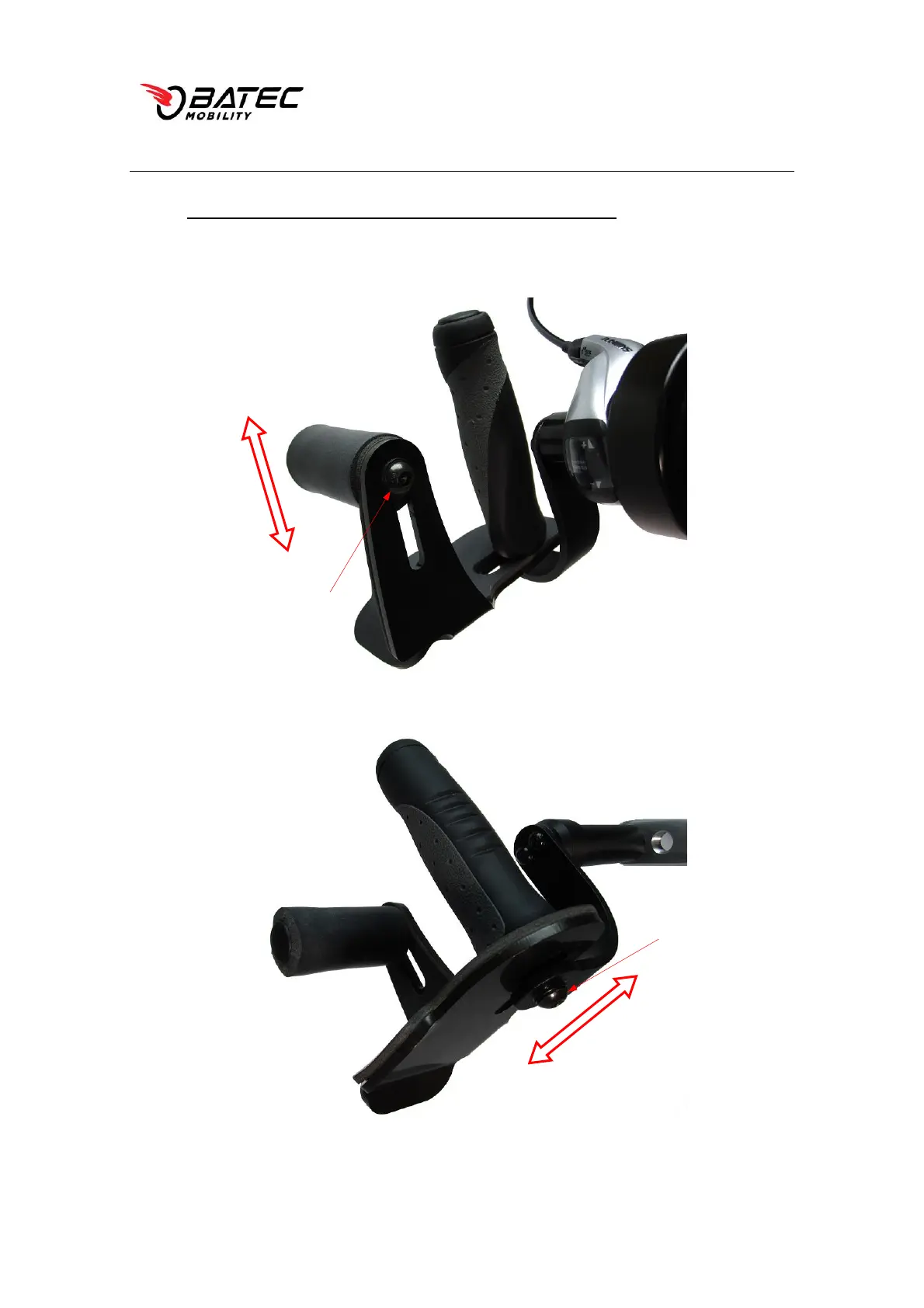

User adjus
tments
1.
Adjust
to wrist
vertically
. Tighten s
crew to
20 Nm.
2.
Adjust
to wrist
horizontal
ly. Tighte
n screw to
20 Nm.
2
1
84
86
