Rev. A-052518 Page 9 VDC12117TC-MNL
BatteryMINDer Plus Model 12117TC
Electrical Cable & Physical Parameters
Input Connector Wall mount
Output Cord SPT-2 18AWG with quick connector, total length 10 Feet
Extension Cord
construction
SPT-2 18AWG Connector with color code battery clamp, total
length 2 Feet
SPT-2 18AWG Connector with Blade Terminal fuse with Fuse
Holder & Ring Terminal Assembly 2 Feet (Optional)
Enclosure Dimensions 3.8” L x 2.6” W x 2.2” H (95.8 [L] x 65.5 [W] x 55.6 [H] mm)
Weight 1.1 lbs. (0.5Kg)
Safety & Protection
Safety Standards Design according to UL1236
EMC Standards FCC part-15
Built-in Temperature
Protection
Output short-circuit, reverse polarity protection
Temperature
Compensation Range
14°F - 122°F (-10°C - 50°C)
In float and maintenance stages the minimum voltage will be
13.0V ±0.15V
Storage Temperature -4°F - 185°F (-20°C - 85°C)
Operating Humidity Range 0 to 90% Relative Humidity
1 8765432
V
Bulk 1 MaintenanceFloatEqualizationAnalysis 2AbsorptionBulk 2Analysis 1
6V<Vbatt<13.2V
1.0A Bad Cells 1.0A Max
Vbatt=13.2VVbatt=13.2VVbatt=14.6VVbatt<12.5VVbatt=14.4VVbatt<14.4VVbatt<11.8V
Pulse up to 15kHz frequency1.0A Battery Weak 1.0A Max 1.0A Max
A

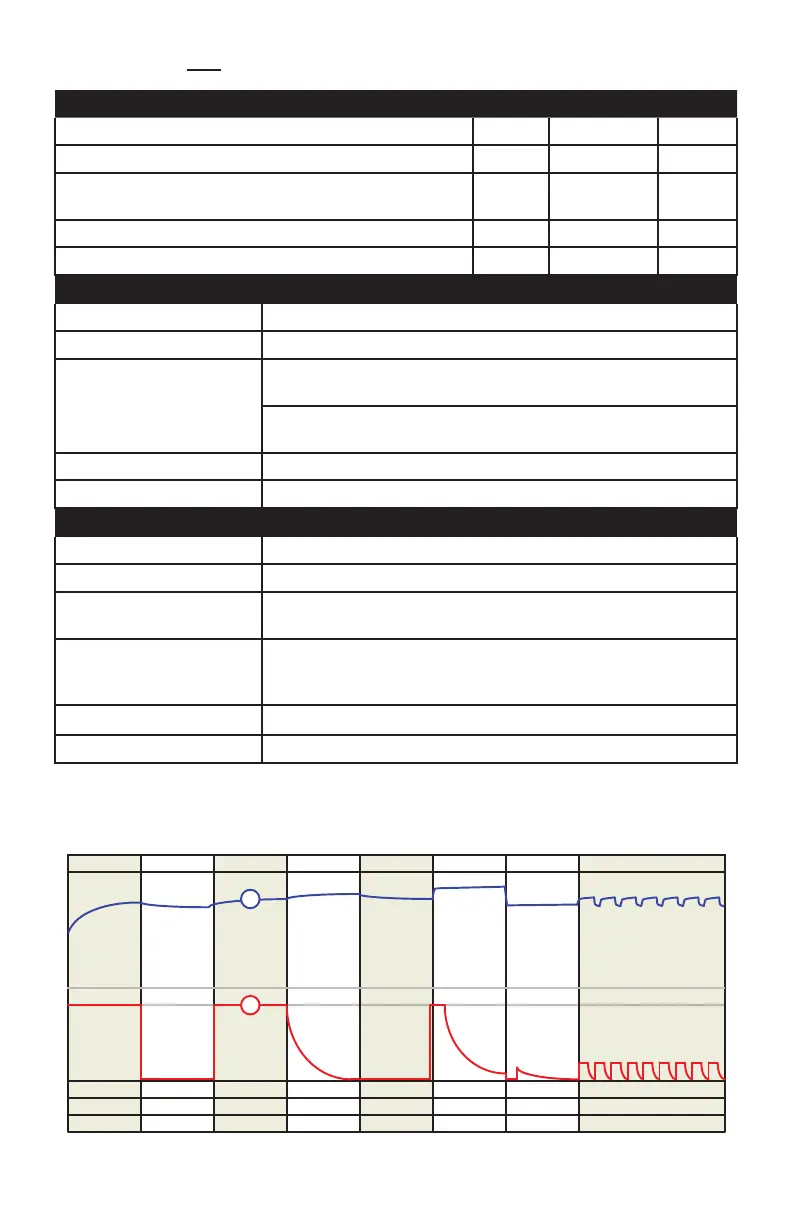

CHARGING CURVE
AC Power Input Characteristics Normal Withstand Unit
Input voltage 100-120 90 - 140 Vac
Input voltage frequency 50/60 47 - 63 Hz
Input quiescent power consumption when no battery is
connected
0.5 max. W
Input current consumption 0.28 max. A/ac
Nominal efficiency >76%
All Values are related to 77°F (25°C) Ambient Temperature
