Betriebsanleitung für Smart RAIN
23

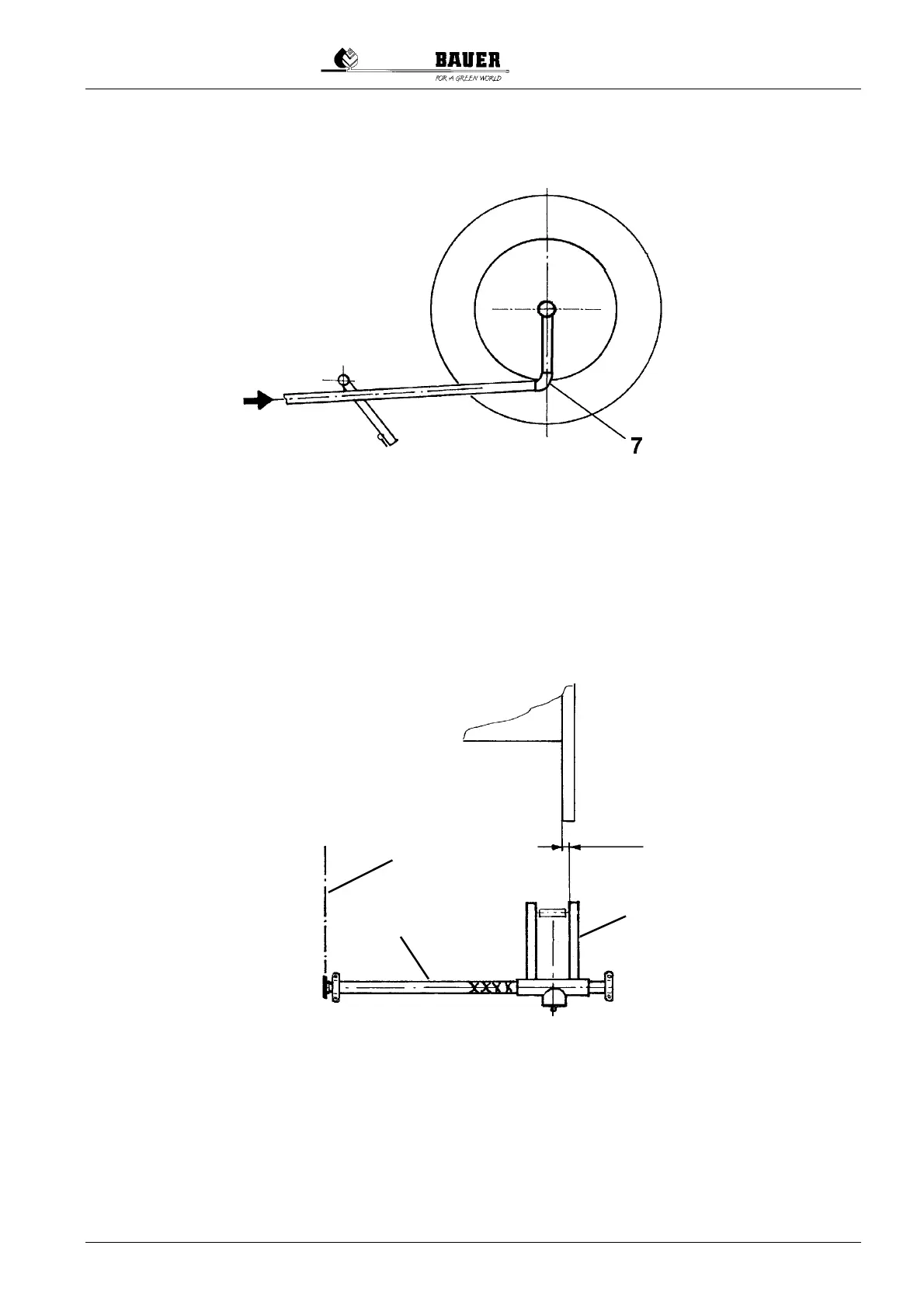

11 WINDING MECHANISM – STARTING POSITION
Step 1:
Pull off the PE-pipe and adjust the connecting bend (7) in a vertical position pointing down.
Step 2:
Loosen the winding chain (1) between the reel and the helically grooved spindle (2).
Step 3:
By turning the helically grooved spindle (2), the winding carriage (3) is moved to the right outer reversing point
of the groove Æ value: 13 mm.
1
2
3
13 mm
