Betriebsanleitung für Smart RAIN
26

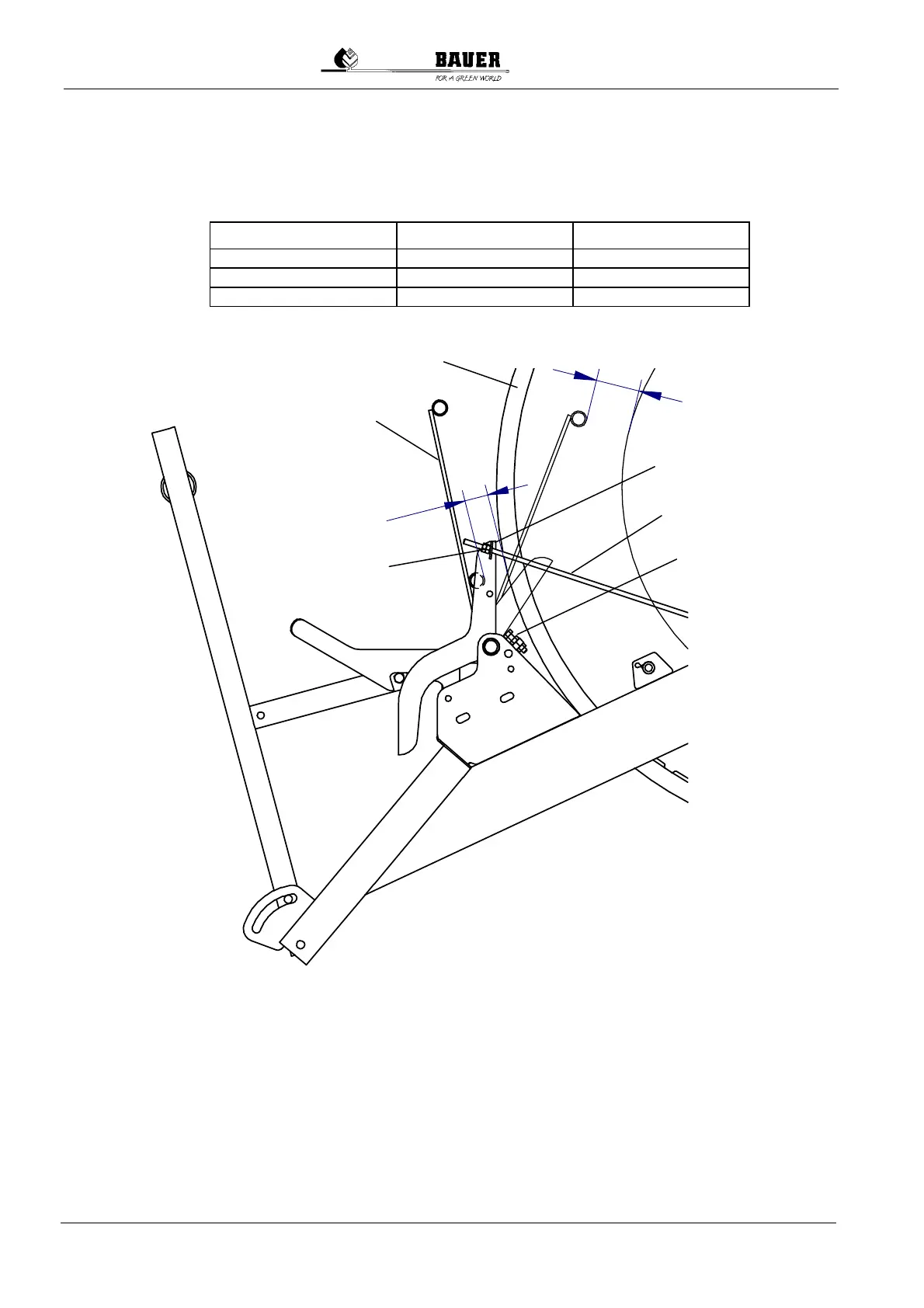

The shut-off frame (13) is set at
X mm off the reel (17) ( see below table ).
The hex nut (15) on the shifting rod (16) is approached to the lever (14) of the shut-off frame. Secure the nut.
Machine X mm Y mm
Smart RAIN 45 75
X
Y
Set the adjusting screw (18) to the shut-off frame (13) at the value of "Y" and secure it.
12.1 TESTING THE SHUT-OFF DEVICE
Put the shut-off frame (13) against the PE-pipe (last layer).
Move the shut-off lever (9) to position "PE-pipe retraction".
Pull the shut-off frame (13) to shut-off position (=
X mm off the reel).
The shut-off lever must jump to shut-off position!
17
13
15
14
18
16
