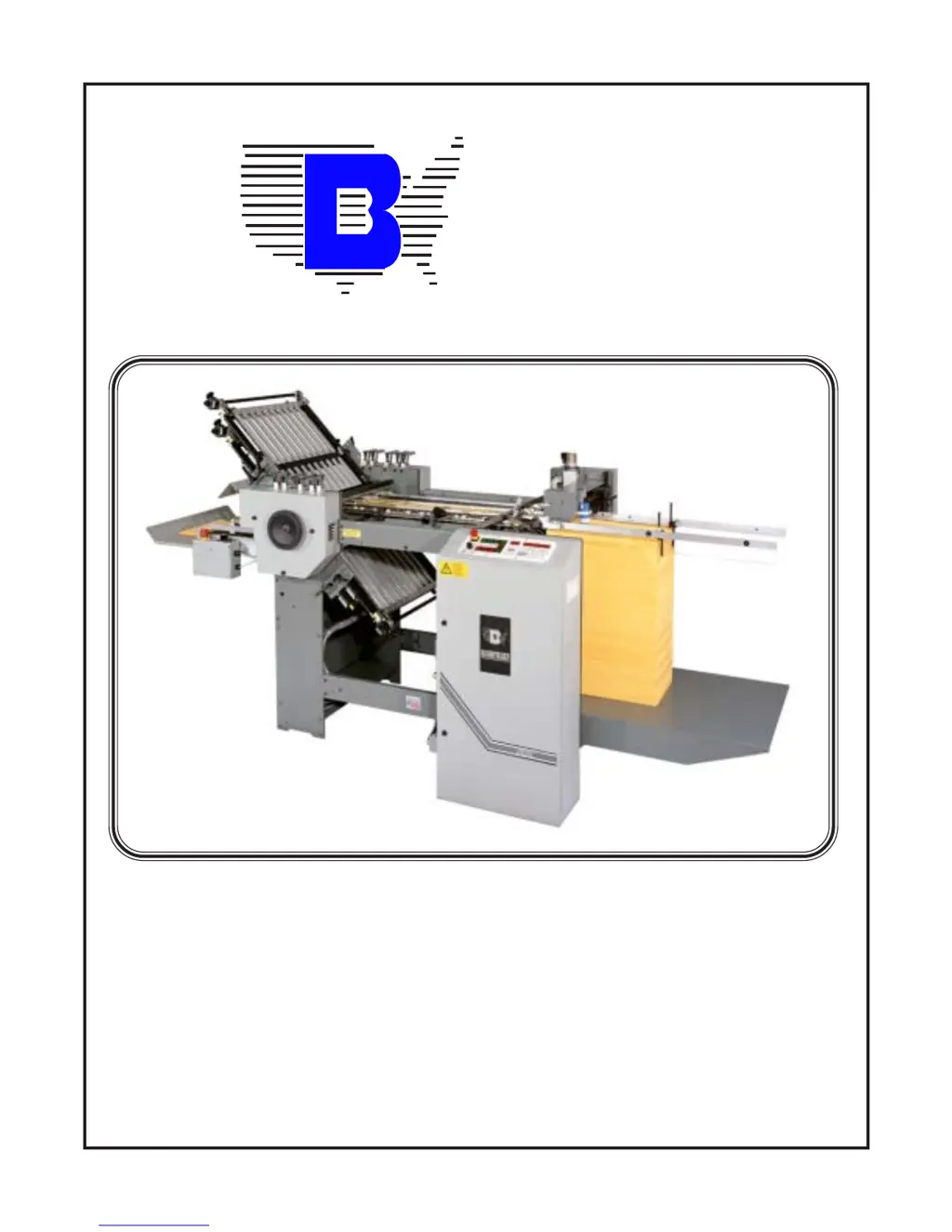

Baum 2020 User Manual (English)

Other manuals for Baum 2020

Questions and Answers:

J
Joshua SmithJul 27, 2025
Why is my Baum 2020 wrinkling after the 1st fold?
- G
  George WilsonJul 27, 2025
  If your Baum Folding Machines experience wrinkling after the first fold (either across or parallel), it could be due to several reasons. The register guide may not be at right angles to the folding rollers, or the sheet might be drawn too sharply against the register guide. Also, the buckle plate feed stop may not be parallel to the incoming sheet edge, or the folding rollers could be set too tight. To resolve this, correctly set the register guide angle, insert fewer or lighter balls, correct the buckle plate stop setting, and slacken the roller setting.
L
Lisa MurphyAug 3, 2025
What to do if sheet remains lying on the roller table of the 2nd station in Baum 2020 Folding Machines?
- S
  sherry35Aug 4, 2025
  If the sheet remains lying on the roller table of the 2nd station or fails to run into the 1st buckle plate of the 2nd folding station of your Baum Folding Machines, it may be due to electrostatic charge in the product caused by friction with rollers and deflectors, coupled with relatively low humidity. Another potential cause is that the damping rods and sheet holder are set too low. To fix this, fit a discharge unit at the exit to the 1st station or arrange for appropriate humidity on the premises. Also, raise the damping rods and sheet holder as necessary.
T
Thomas RiveraAug 11, 2025
How to fix sheet corners buckled after the 1st fold in Baum 2020?
- K
  Kelsey MckeeAug 11, 2025
  If the sheet corners are buckled up or down after the first fold in your Baum Folding Machines, this is likely due to the sheet deflector being set too low. If the corners are buckled upwards, set the upper sheet deflectors back evenly. If the corners are buckled downwards, the lower deflectors must similarly be set back evenly by underlaying pieces of card. Do not alter the basic setting of the deflectors.
M
matthewsmelindaAug 19, 2025
Why is the perforation crooked after the 1st fold in Baum Folding Machines?
- K
  Karen WoodAug 19, 2025
  If you notice a crooked perforation after the first fold in your Baum Folding Machines, it could be due to a few reasons. The register guide and buckle plate stop might not be at right angles to each other. There could be a faulty setting of the folding rollers and slitter shaft. Or, the lower buckle plate lip could be crooked. To resolve this, reset the register guide and buckle plate stop, check and reset the folding rollers and slitter shaft as necessary, and set the lower buckle plate lip to the zero position.

Baum 2020 Specifications

General

Brand	Baum
Model	2020
Category	Folding Machines
Language	English

Summary

Safety First

General Safety Precautions

Essential safety rules for operating the folding machine safely, including guarding and work area cleanliness.

Introduction and Machine Setup

Machine Overview and Components

Identifies the main components of the Baum 2020 1st station folder with pile feed.

Squaring the Machine

Procedure for ensuring the folding machine is square for proper operation.

Transportation and Installation Guide

Instructions for safely handling and installing the Baum folder upon receipt.

Electrical Connections

Wiring the Pump

Detailed instructions for wiring the pressure/vacuum pump for 3-phase and 1-phase systems.

Other Electrical Connections

Information on main power connections and other electrical hookups.

Transformer Tapping and Pump Connections

Guide to tapping the transformer and connecting air hoses to the pump.

Quick Start Instructions

Turning the Main Switch On

Steps for powering on the machine and its initial self-test procedure.

Pile Feeder Lift Table Operation

Instructions on how to raise and lower the pile feeder lift table.

Starting Production

Procedure for starting the folder drive and pump for production.

Operator Controls and Modes

Operator Control Panel Overview

Description of the main operator control panel and its buttons.

Control Panel BAN-5 Details

Detailed explanation of displays, status indicators, and pushbuttons.

Run Mode Functions

Overview of various operating modes available on the machine's counter.

Machine Setup and Diagnostic Mode

Guide to accessing and adjusting machine setup and diagnostic parameters.

Counter Setup Mode

Procedure for setting up batch counts, output types, and timing parameters.

Easy, Continuous, Learn, and Make Ready Modes

Detailed setup procedures for Easy, Continuous, Learn, and Make Ready modes.

Network Job and Production Modes

Instructions for using Network Job Mode and setting up Production Mode.

Parameters, Variables, and Messages

Logic Board Status Indicators

Explanation of the LED indicators on the logic board for system status.

Process Variables Definitions

Definitions of key process variables such as counts, rates, and run times.

Counter Setup Variables

Details on batch preset, output type, sheet length, and gap length settings.

System Messages and Faults

Guide to interpreting power-up, run-time, and machine error messages for troubleshooting.

Pile Feeder Operations

Loading the Pile Feeder

Step-by-step guide for correctly loading paper onto the pile feeder.

Air and Vacuum Settings

Instructions for adjusting air flow and vacuum for optimal sheet separation.

Front Blow Tube Settings

Guide to setting up the front blow tubes for proper sheet handling.

Register and Baumset Adjustment

Register Operation

Procedures for setting up the register guide for accurate paper alignment.

Double Sheet Detector

Explanation of the double sheet detector's functionality and adjustment.

Baumset Adjustment

Guide to adjusting folding rollers using the Baumset device for folding accuracy.

Fold Plates, Deflectors, and Stacker

Setting Fold Plates

Instructions for installing and adjusting fold plates for desired folds.

Setting Sheet Deflectors

How to adjust sheet deflectors to ensure correct paper path guidance.

Stacker Delivery Operation

Features and setup of the motorized stacker for paper collection.

Scoring, Slitting, and Perforating

Slitter Shaft Accessories Removal

Procedures for removing and installing slitter shaft accessories.

Scoring Operations

Instructions on how to perform scoring on paper sheets for accurate folding.

Perforating Operations

Guide to setting up and performing perforating on paper sheets.

Slitting Operations

Instructions for cutting or slitting sheets using the folder's blades.

Trimming Operations

Procedures for trimming booklet edges and center strips of paper.

Blade Installation and Safety

Important safety warnings and steps for installing cutting blades.

Lubrication, Maintenance, and Specifications

Lubrication and Maintenance Schedule

Recommended lubrication points and maintenance procedures for the machine.

Technical Specifications

Key performance data including sheet size, speed, and electrical requirements.

Available Accessories

List of optional accessories that enhance the folder's functionality.

Troubleshooting and Operating Tips

Troubleshooting Common Issues

Solutions for common problems encountered during folder operation.

Operating Tips for Folding

Practical advice and techniques for optimizing folding performance and setup.

Job Setup and Folding Principles

Principles of Mechanical Folding

Explanation of the basic theory behind buckle folding mechanisms.

Job Setup Example and Guide

Step-by-step example for setting up a job and configuring the folder.

Impositions and Manual Usage

Impositions Guide

Reference for 18 popular folding impositions with diagrams and layouts.

Manual Usage Explanation

Guidance on how to read and interpret diagrams and information within the manual.

Typical Layout and Sheet Orientation

Understanding sheet layout, fold pans, and orientation for different impositions.

Service Information

Contacting Baumfolder Service

Information on how to contact Baumfolder for parts and dealer support.
