Center Trimming
Slitting Blades are
located tight against the
sharp, flat side of the
anvil.
Note: Grooves in
lower scoring
collar are NOT
used for slitting or
perforating
Spacers for
setting width
of strip
Center trim
stripping collar.
Rotates loose on
lower slittershaft
trapped between the
anvils
Center stripper wire. Lay wire
in center groove and twist ends
together at the bottom. Wire
floats free and attracts center
waste and directs it to the floor

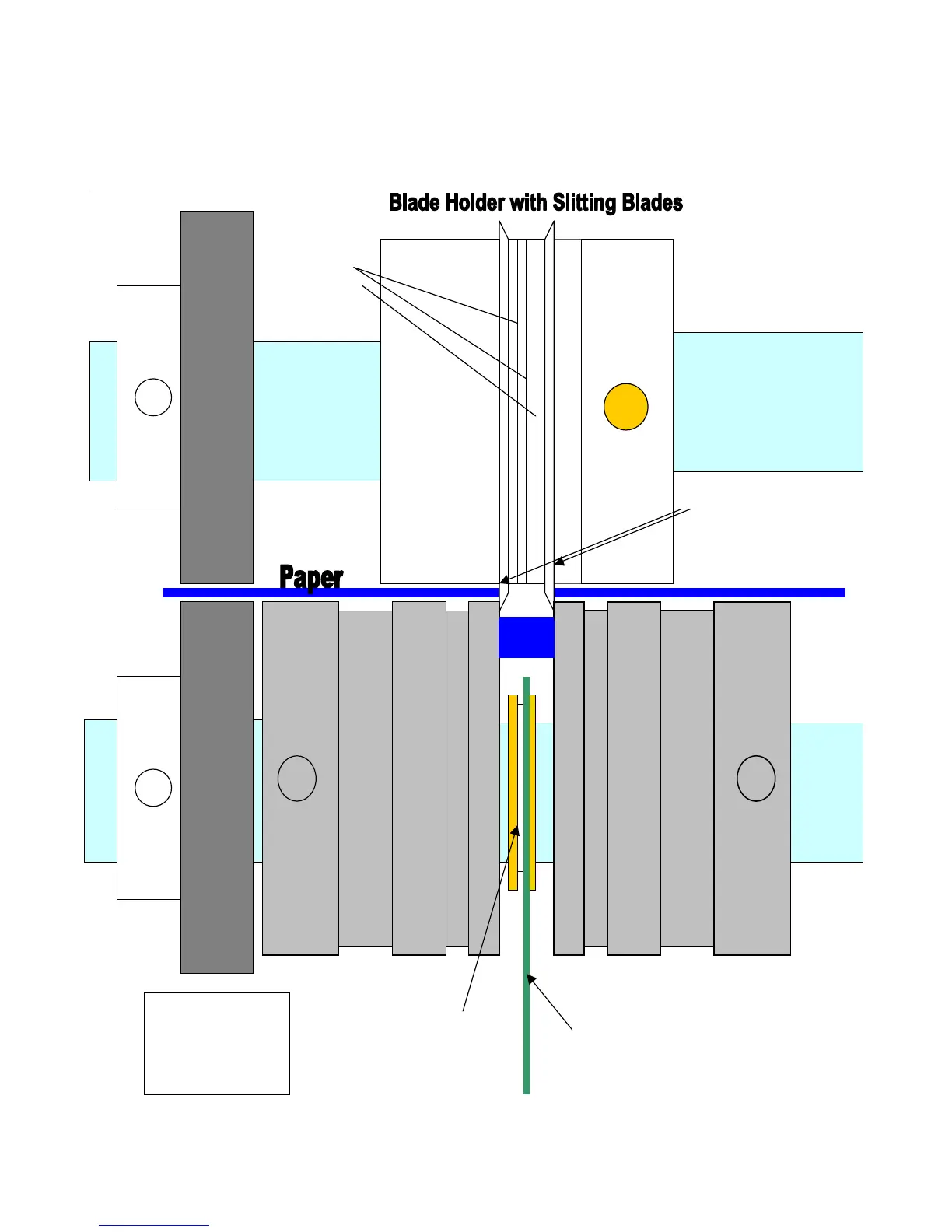

Figure 31
