14

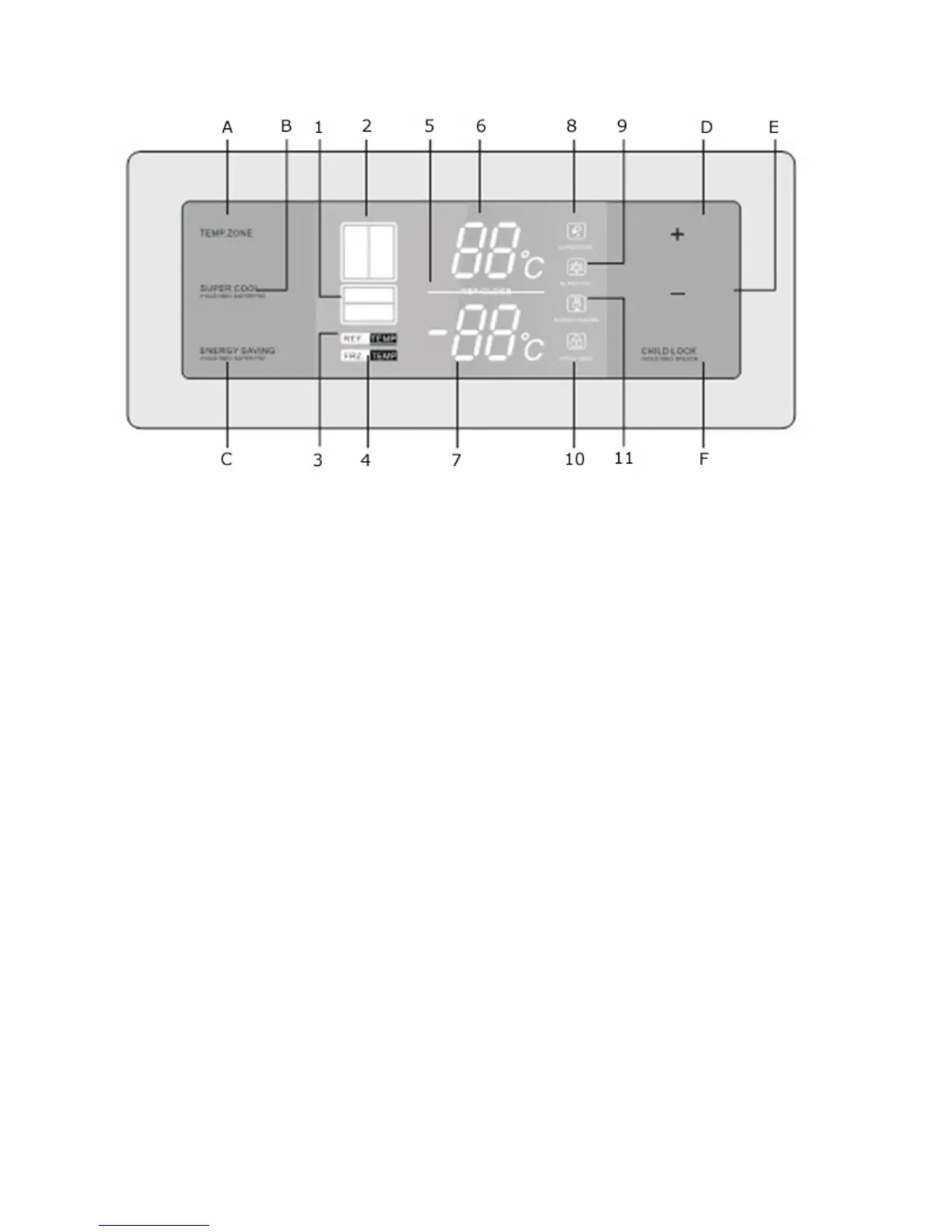

Control panel
The control panel is located outside the refrigerator and is used to
control the fridge and freezer.
Operation buttons
A. Temp Zone. Use this button to select either the fridge or
freezer.
B. Super Cool. Use this button to select Super Cool or Super
Freeze functions.
C. Energy Saving. Use this button to turn on Energy Saving mode.
D. Plus button (“+”). Increase selection button.
E. Minus button (“-“). Decrease selection button.
F. Child Lock. Use this button to lock the control panel from
accidental misuse.
Display icons
1. Freezer icon
2. Fridge icon
3. Fridge temperature setting icon
4. Freezer temperature setting icon
5. Refrigerator Off icon
6. Fridge temperature display
7. Freezer temperature display
8. Super Cool icon
9. Super Freeze icon
10. Energy Saving icon
11. Child lock icon
