8 Baumatic BAF90EG 900mm Upright Oven User Manual
Important Information for Installing the
Appliance
Appliance Gas Connection:
• IMPORTANT: This appliance must be installed by an authorised person.
• WARNING: DO NOT MODIFY THIS APPLIANCE
• If the appliance cannot be adjusted to perform correctly, contact the service department.
• This appliance utilises a threaded 1/2" gas male fitting.
• To connect the appliance to the gas network with a flexible hose, a supplemental hose nipple fitting is needed
which is supplied with the appliance. (Fig. 05)
Location and Aeration

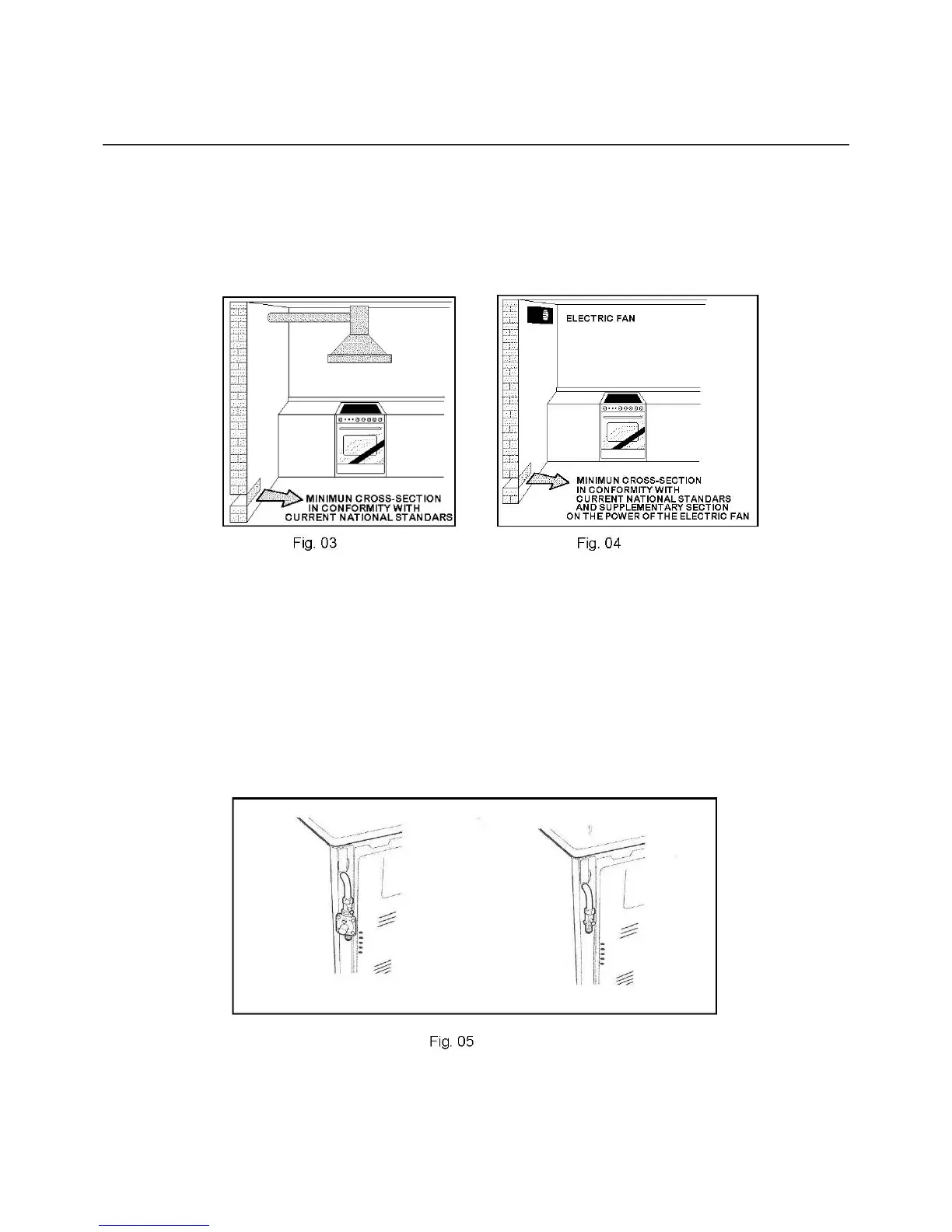

• Gas cooking appliances must always evacuate the combustion products by means of hoods connected to
chimneys, flues or directly outside (Fig. 03). If a hood cannot be installed It is possible to use a fan installed on a
window or directly facing outdoors, to be operated together with the appliance ( Fig. 04), provided that there is
strict compliance with the ventilation regulations. Disposing of old appliances
Gas inlet positions with different leg heights – mm
Gas inlet (mm) - Nat gas Gas inlet (mm) - LPG
From RH rear side: 35 mm From RH rear side: 35mm
Up from floor: 560 - 595mm (590mm nominal) Up from floor: 645 – 680mm (675 mm nominal)
