Connecting the mains supply cable
IMPORTANT
The wires in the mains lead are coloured in accordance with the
following code:
GREEN AND YELLOW EARTH
BLUE NEUTRAL
BROWN LIVE
L
N
Live Terminal
Earth Terminal
Neutral Terminal
Cable Clamp
Mains Cable

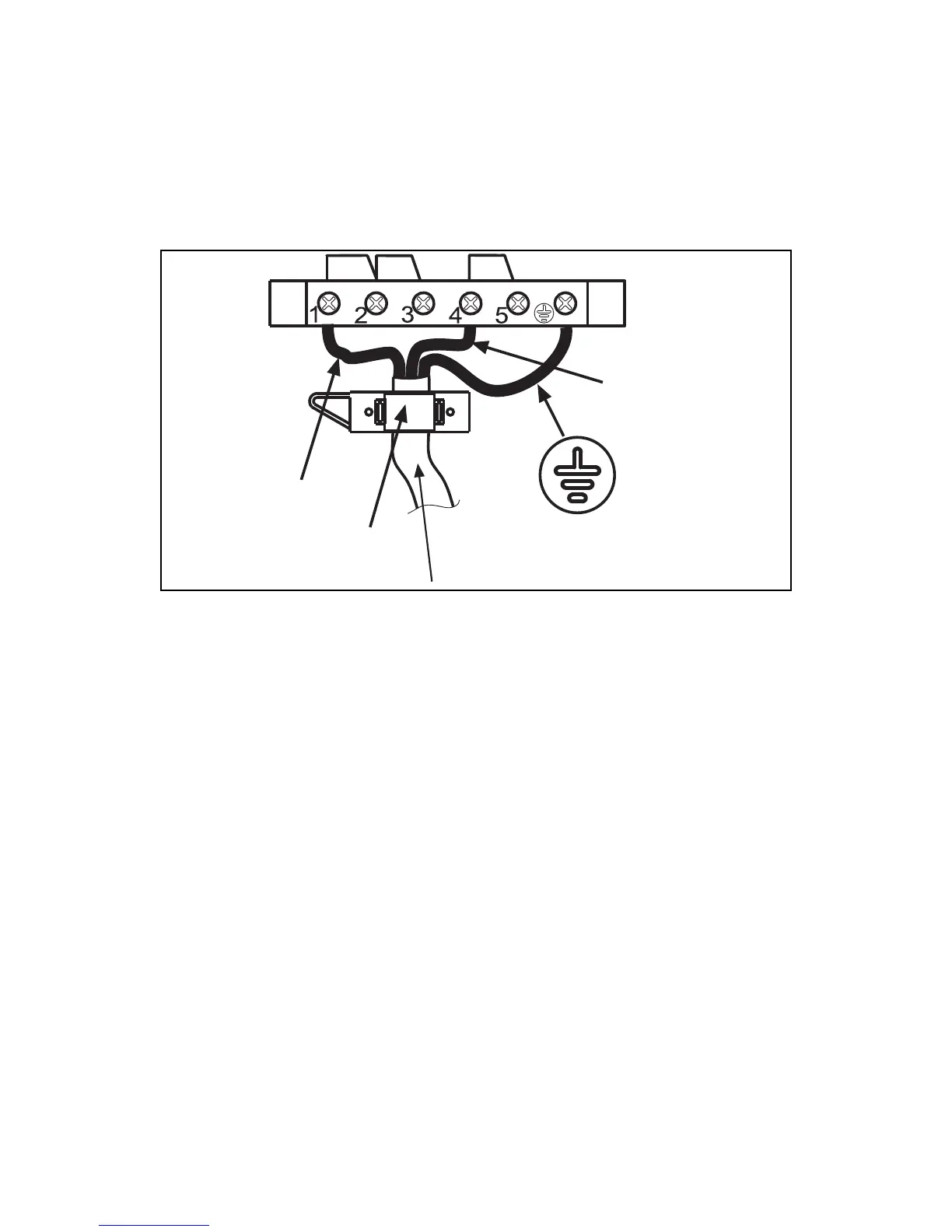

o Connect to the mains terminal block as shown in the image
above. It is accessed by removing the cooker back panel.
o The power cable must be laid so that no parts of it ever reach a
temperature of 75°C.
o For connecting do not use adapters or shunts as they could
cause false contacts resulting in hazardous overheating.
o When connecting directly to the mains, install a multi-polar
switch that can withstand the appliance load, with a minimum
opening between the contacts of 3 mm.
