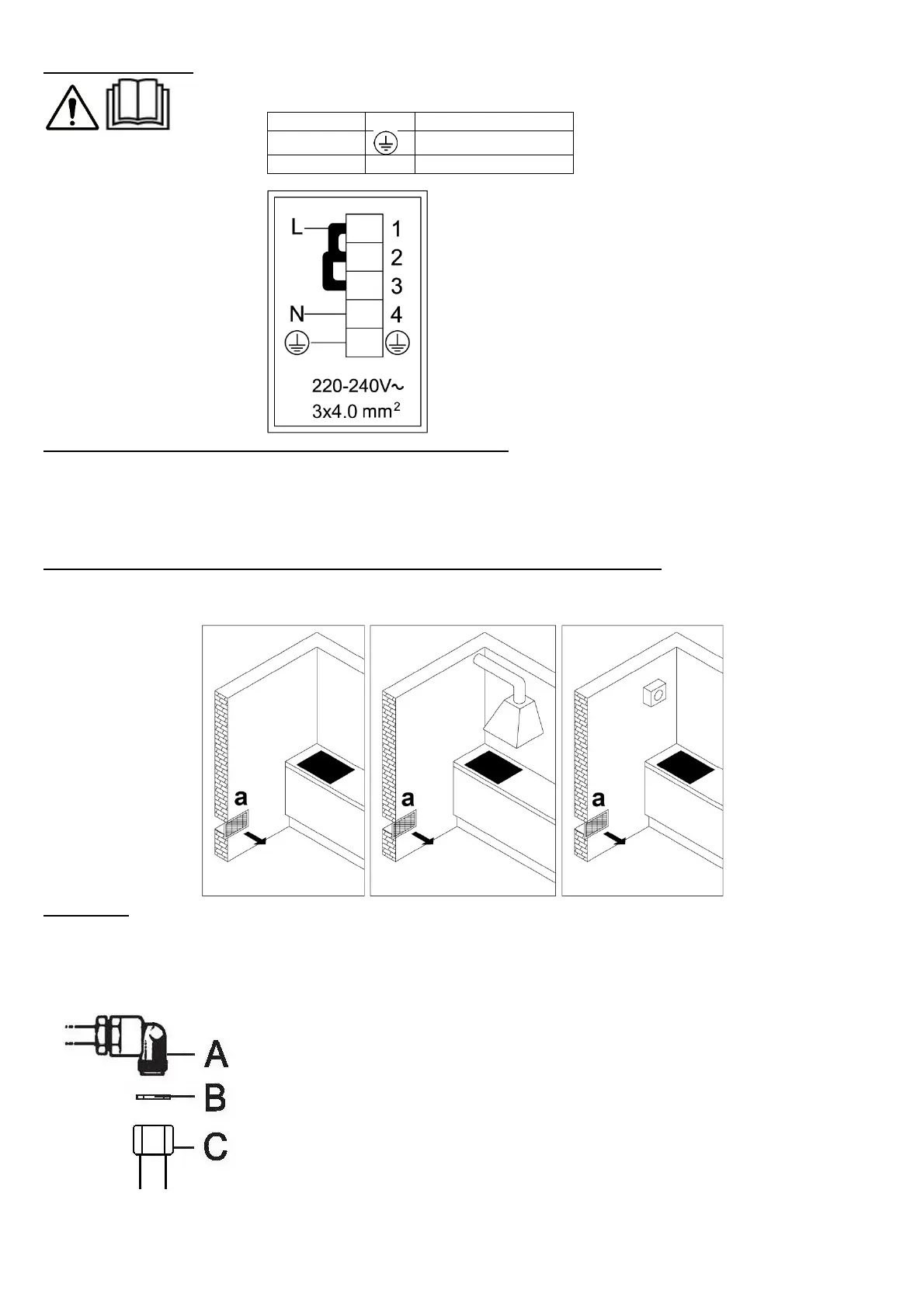

Connection diagram
The following can be used for connection:
H05V2V2V-F
LIVE L BROWN
EARTH GREEN / YELLOW
NEUTRAL N BLUE
CONNECTING THE COOKING HOB TO THE GAS SUPPLY
• The appliance must be connected in compliance with all relevant regulations, and it may only be used in well ventilated /
aerated rooms. Before connecting or using the appliance, please read the instruction manual.
• Before installing and connecting, make sure the local natural gas supply network and connection (type of gas and
pressure), are compatible with your appliance version.
• The version of this appliance is indicated on the rating plate.
The category with the related types of gas which can be used, is included in Table 5
• This appliance is not suitable for connection to a burning fumes exhaust system (i.e. a chimney). The appliance must be
installed and connected in compliance with the relevant effective installation regulations. Special care must be taken to
ensure adequate ventilation / aeration. (a = min. 100 cm
2
).
Connection
• When connecting the appliance to the gas supply, follow the regulations of the local gas
distributor.
• On the lower side, the cooking hob is fitted with a gas connection plug with a thread.
• When connecting, the knee should be held firmly to prevent it from rotating.
• For sealing of the connection joints, use a non-metal approved gaskets and approved
sealants.
• The gaskets should only be used once. The thickness of the flat non-metal gaskets
should not be deformed more than by 25 percent.
• To connect the appliance to the gas supply, use a tested and certified flexible hose.
• The flexible connection hose should be able to move freely.
It should not come into contact with the movable parts of the furniture, or the bottom of
the cooking hob.
• If an electric oven is built into the kitchen element under the cooking hob, it should be
fitted with a cooling fan.
After connecting the gas hob, check the joints for any leaks.
A ISO7-1 R1/2 connection plug
B Non-metal gasket with thickness of 2 mm
