22
Use a spanner to adjust the height of the adjustable feet.
If your aperture has a height of 820 mm, then the adjustable
o If your aperture has a height of 870 mm, then the adjustable
The appliance should be flush with the underside of the worktop
A cut out must be made in the plinth/kickboard for ventilation.
o Insert the plinth/kickboard and then refit the grid in its original
o IMPORTANT: Please note that as shown in the above
o
o
feet should be fully tightened.
feet should be set at a height of 50 mm.
o
and be level. IMPORTANT: If the appliance is not level, then the
door and door seal may be affected.
o

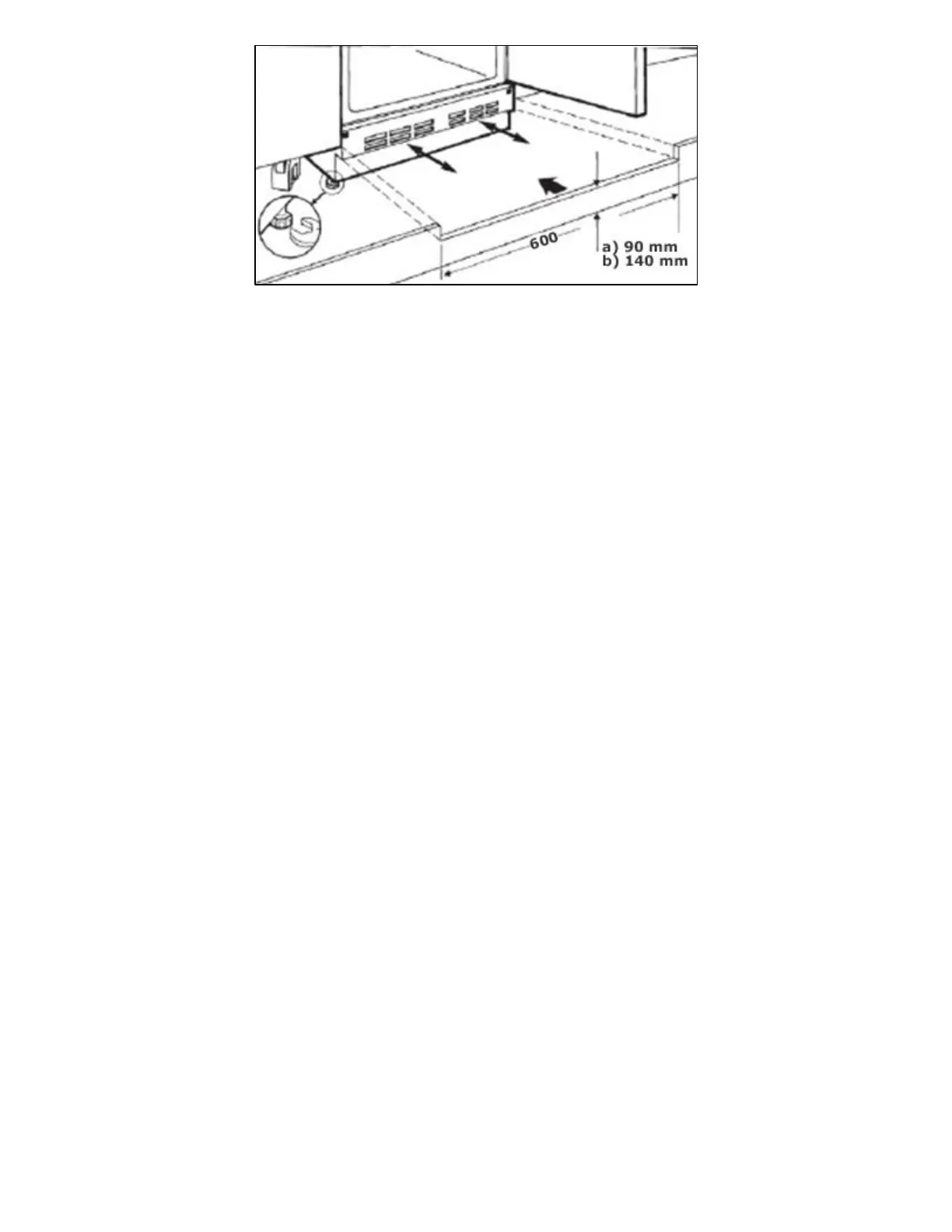

The cut out should measure 600mm in width, and between
140mm and 90mm in height, depending on the height that you
have set your appliance.
position to hold it in place.
drawing, an appropriately sized ventilation cut out MUST
be made in the furniture plinth/kickboard.
