Baumatic BR16.5 - Aperture and Appliance Dimensions

18
1) Your appliance requires ventilation. The minimum amount of
ventilation that it requires is shown in figure 1.
Aperture and appliance dimensions

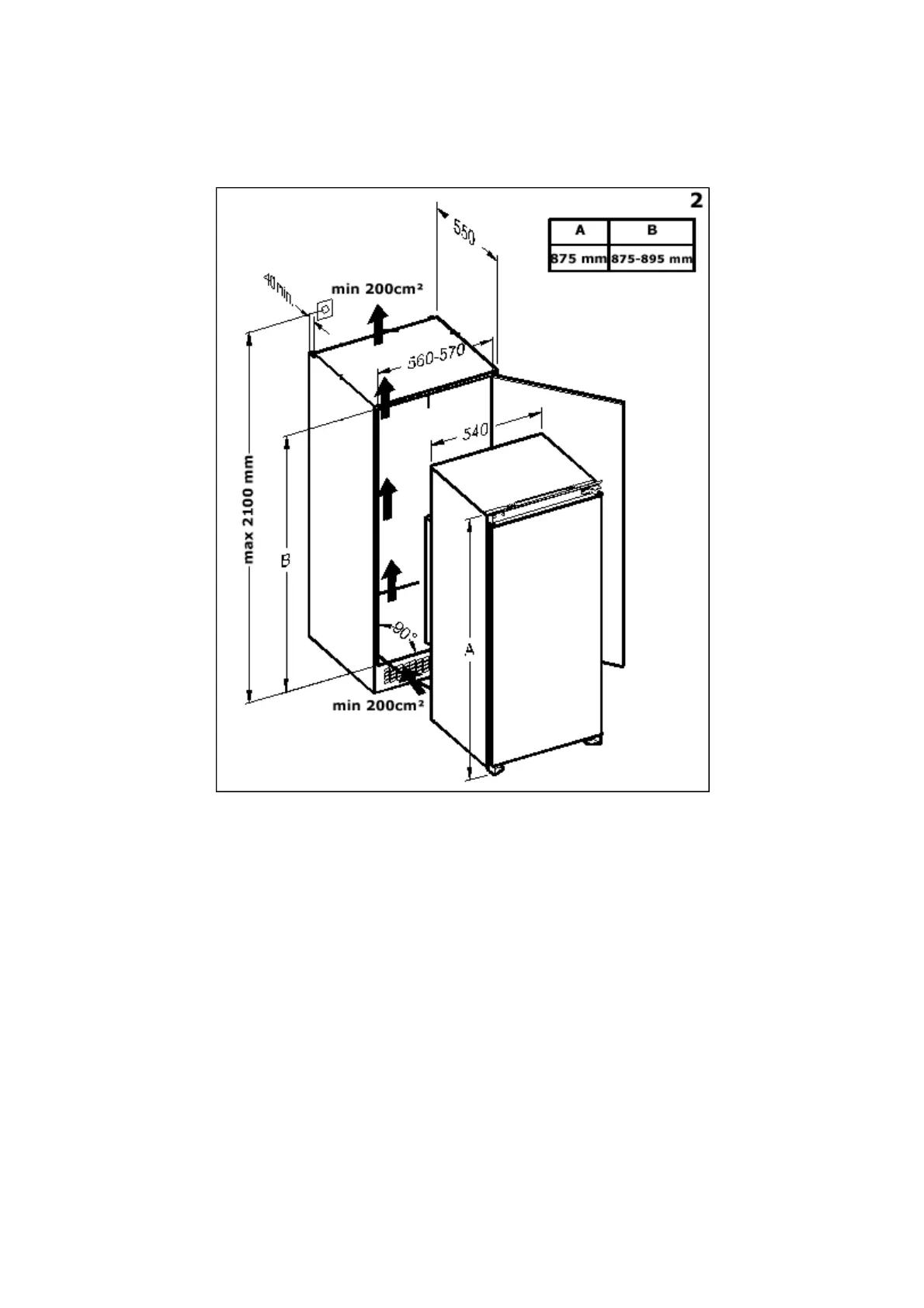

2) Figure 2 shows the aperture size that you will need to be able to
install your appliance.
o The appliance must be stood on a level floor.
