Baumatic BR201.5 - Page 25

25

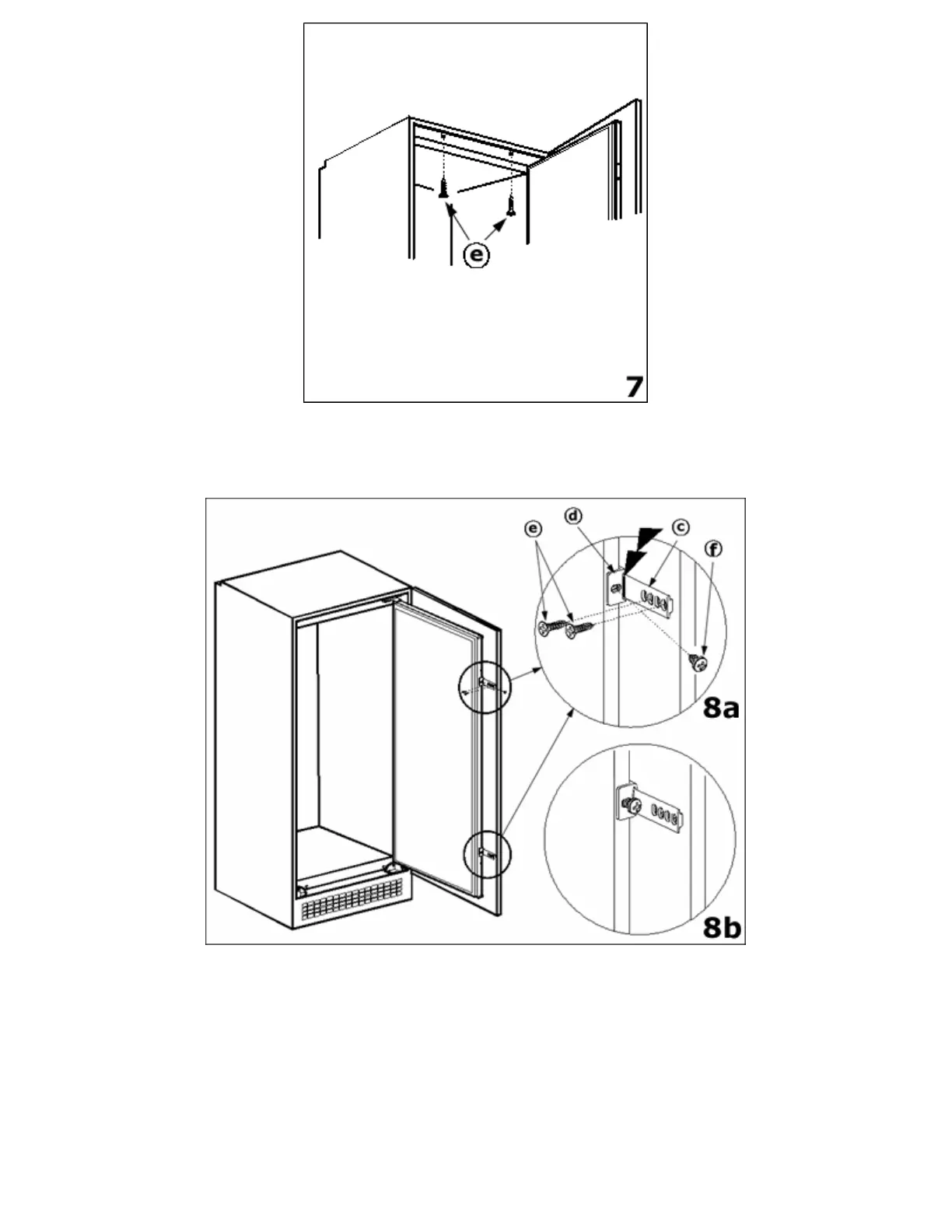

7) Screw the top fixing bar to the underneath of the kitchen unit using
the Ø4 x 17 fixing screws (e).
8a) Fit the door guides (d) to the appliance door but do not secure
them at this stage.
o Open the furniture door and the appliance door to their fullest
positions. Both of the doors should still be in contact with each
other.
