o Using a pencil, mark where the edge of the appliance door meets
with the furniture door.
o From the edge of the furniture door, using a pencil you should
mark a distance, which is the thickness of the cabinet wall + 10
mm. This is where the edge of the door slide (c) should be
placed, in line with the door guide (d).
o Fix the door slide (c) to the furniture door using the Ø4 x 17
fixing screws (e). The outer edge of the door slide should be
placed on the second pencil mark that you made and in line with
the door guide.
8b) Insert the door guides (d) into the door slides (c) and using the
Ø4.2 x 9.5 fixing screws (f), secure the door guides (d) to the
appliance door, through the predrilled hole.
o Close the furniture door and appliance door until they are almost
fully shut. In this position the door guide (d) should not come
past the outer edge of the door slide (c). If it does, then your
door slide is too close to the edge of your furniture door and
should be moved further in.
Reversing the door of your appliance
Caution! After unscrewing any of the fixing
hinges, hold the door to prevent it from falling
and causing damage.
Any parts that you remove from the appliance whilst
reversing the door, should be retained for later use.
o WHILST SUPPORTING THE
DOOR. Unscrew the upper
hinge screws.

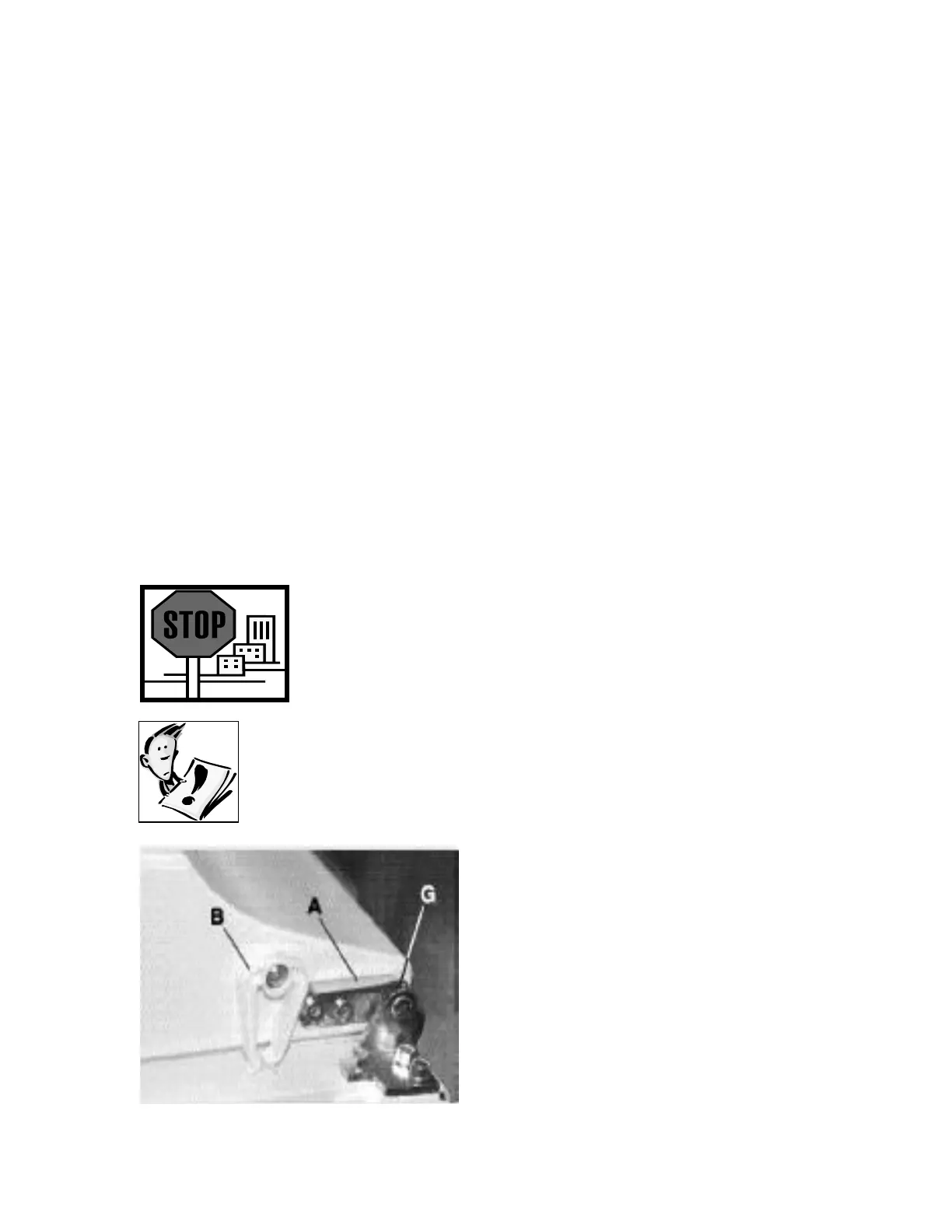

o On the bottom side of the
door unscrew the swing
stopper screws and remove
the stopper (A). Fix the
attached stopper with its
bearing on the opposite side
of the door.
