c) Use a screwdriver to adjust the gap on the lower section of the
adjusting bolts. The gap should be set to approximately 9 mm (as
shown in the above drawing).
d) Fix the lower bracket to the bottom of the furniture door and the
underneath of the appliance door (as shown in the drawing on the
previous page).
o It is possible to make minor adjustments to the position of the
furniture door using the screws on the top and the bottom of the
appliance door. You should make these adjustments so that the
furniture door is level.
e) Insert the cover plate to the top of the appliance; this will just clip
into place.
f) Open the appliance door.

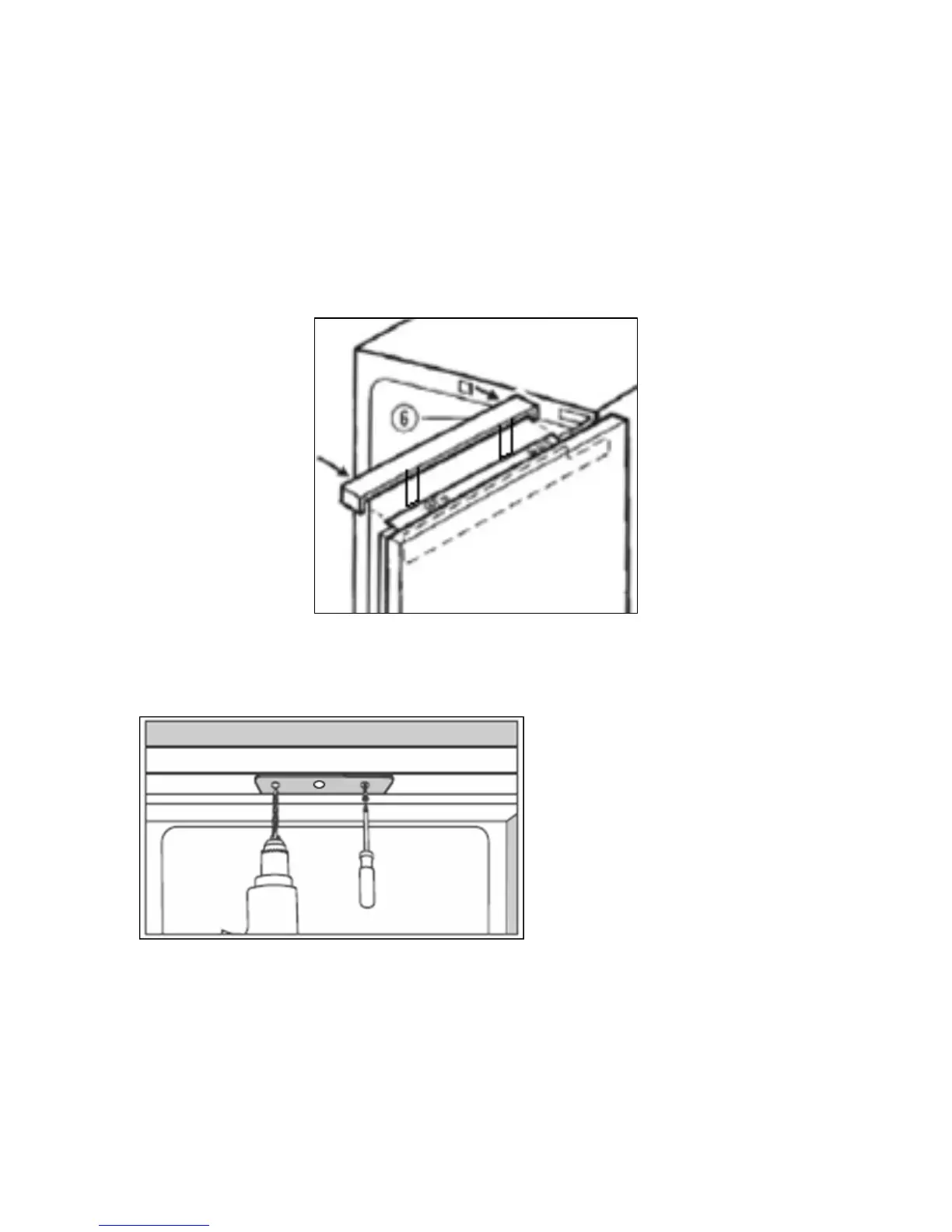

o Use a suitably sized drill bit to drill through the three holes in the
bracket, into the work top. IMPORTANT: The drill bit should be
appropriate for the material that your work top is made from.
o Secure the bracket to the underside of the worktop, using the
screws provided. IMPORTANT: These screws should be fully
tightened.
