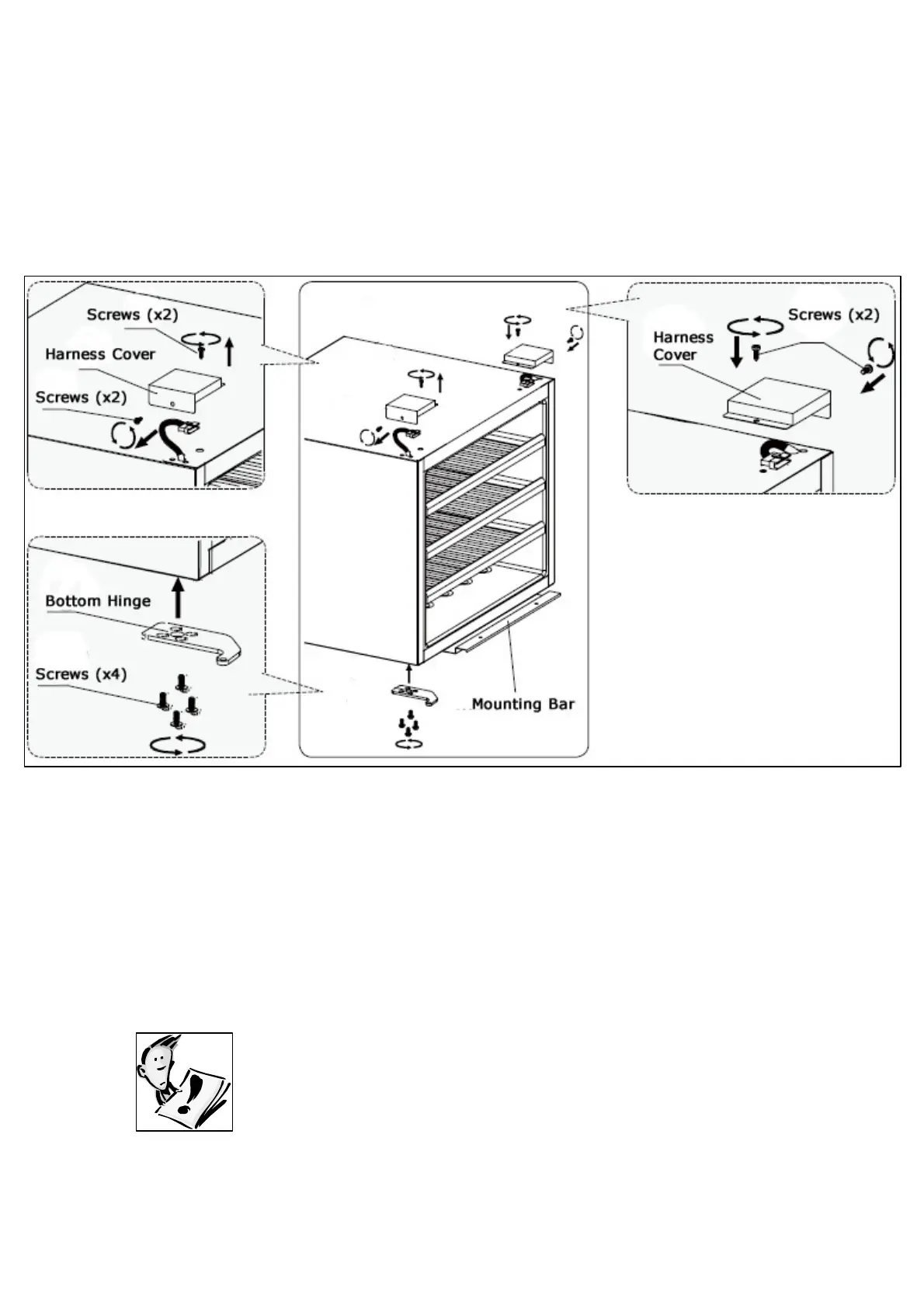

8) Loosen the 2 screws to take out the harness cover from the top
left side of the cabinet.
9) Install the harness cover at the top right side of the cabinet to
cover the harness there.
10) Install the bottom hinge on the bottom left side of the cabinet
with 4 screws.
11) Install the upper left hinge to the top left side of the cabinet
with 3 screws.
12) Fix the door to the bottom hinge with a screw.
13) Connect the two wiring harnesses through their terminals.
14) Tidy the harnesses and install the upper left hinge cover with
the screw.
Any parts that you remove from the appliance whilst
reversing the door, should be retained for later use.
