Baumatic P619BS - Ventilation Requirements

Ventilation requirements

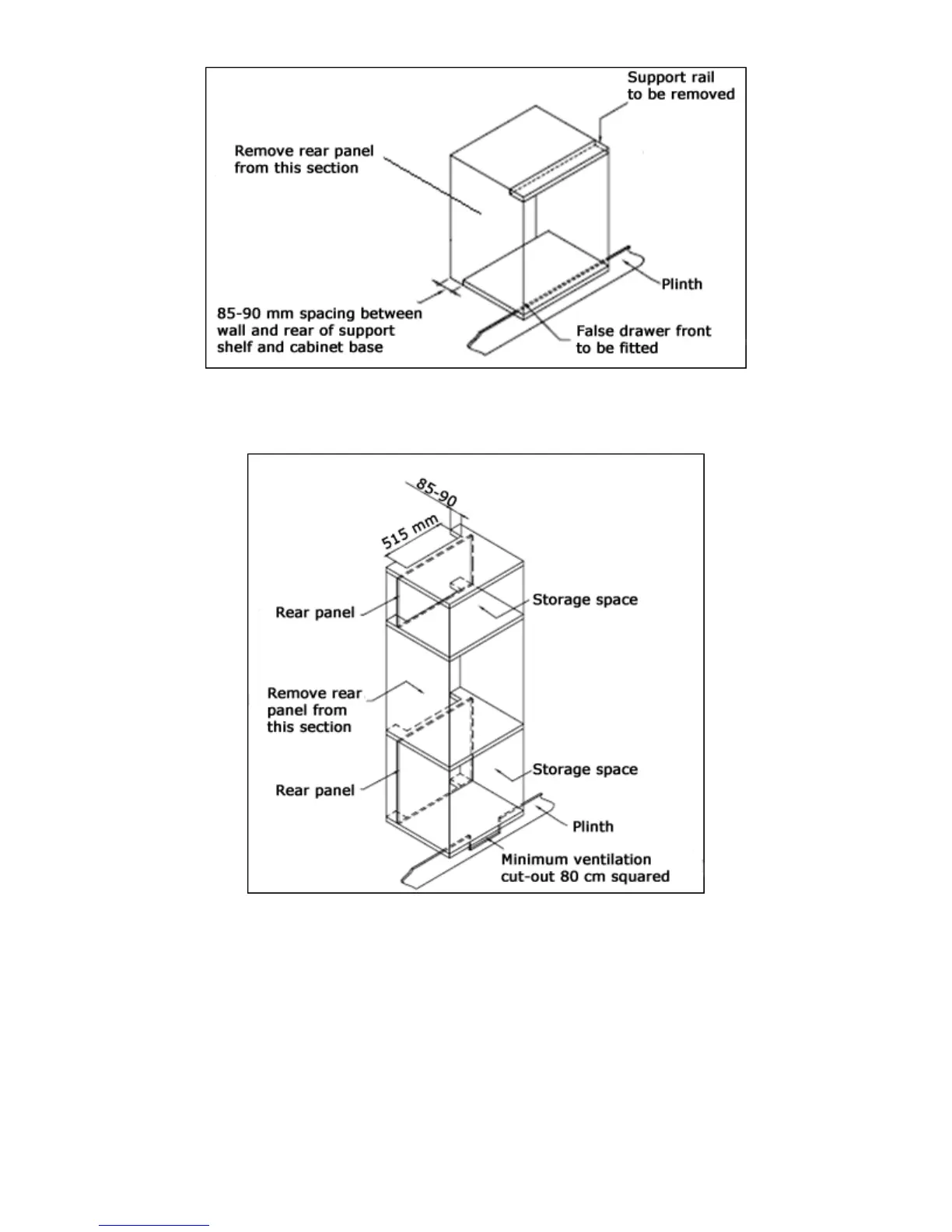

(Figure shows the ventilation and cut-out requirements for the
installation of the appliance into a standard kitchen unit).
(Figure shows the ventilation and cut-out requirements for the
installation of the appliance into a tall housing unit).
32
