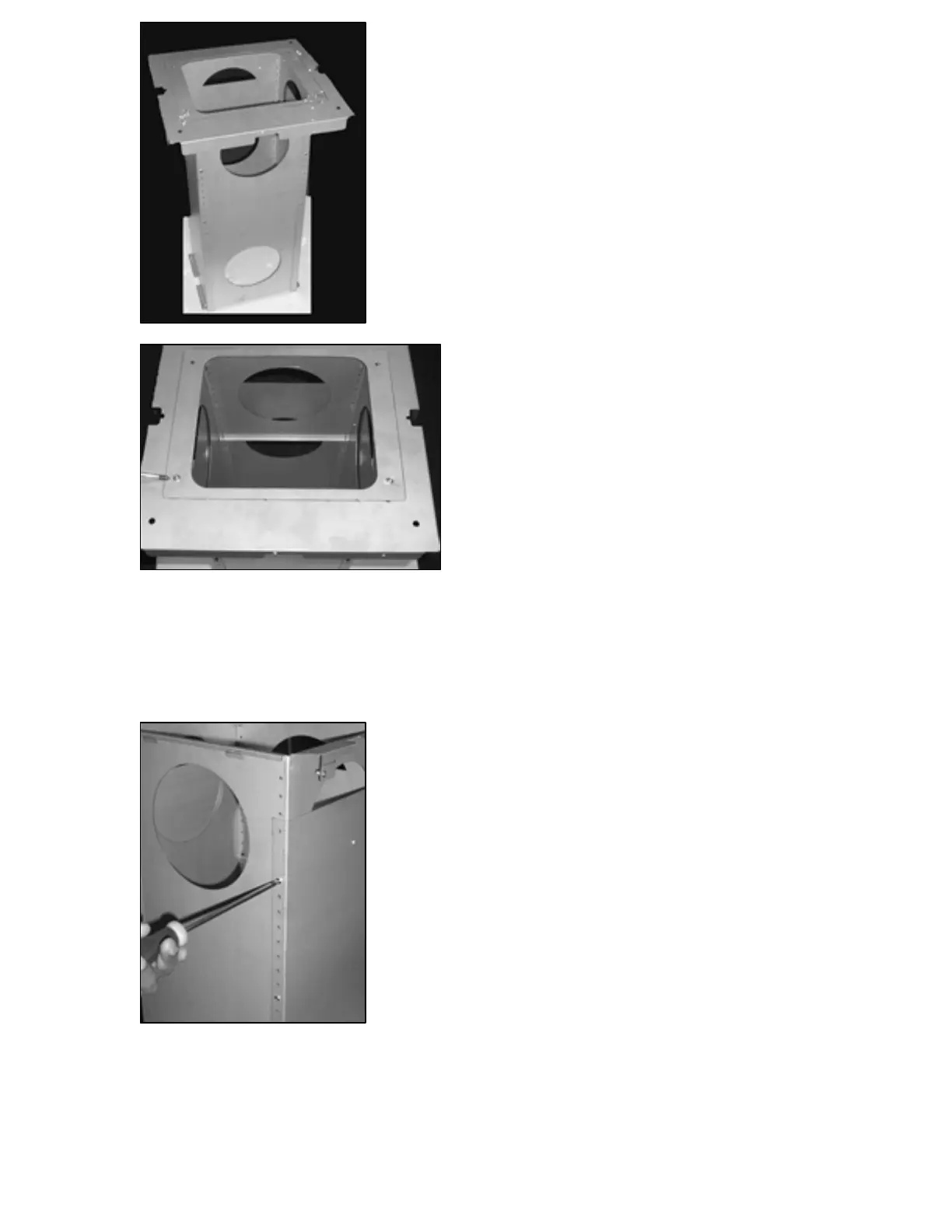

6) Turn the framework upside down (see
picture), so that the upper plate is pointing
upwards.
7) Remove the two nuts and bolts
that hold the upper plate to the
framework.
8a) If necessary adjust the height of the framework to the correct
height for your particular installation. IMPORTANT: You must keep in
mind the height of the hood and the minimum distance that the
bottom of the hood can be from the hob top below.
8b) To make an adjustment to the height of
the framework, unscrew the 8 screws that
hold it in place, lift the framework to your
required height and refix the 8 screws into
the framework.
IMPORTANT: These screws must be fully
retightened.
