28

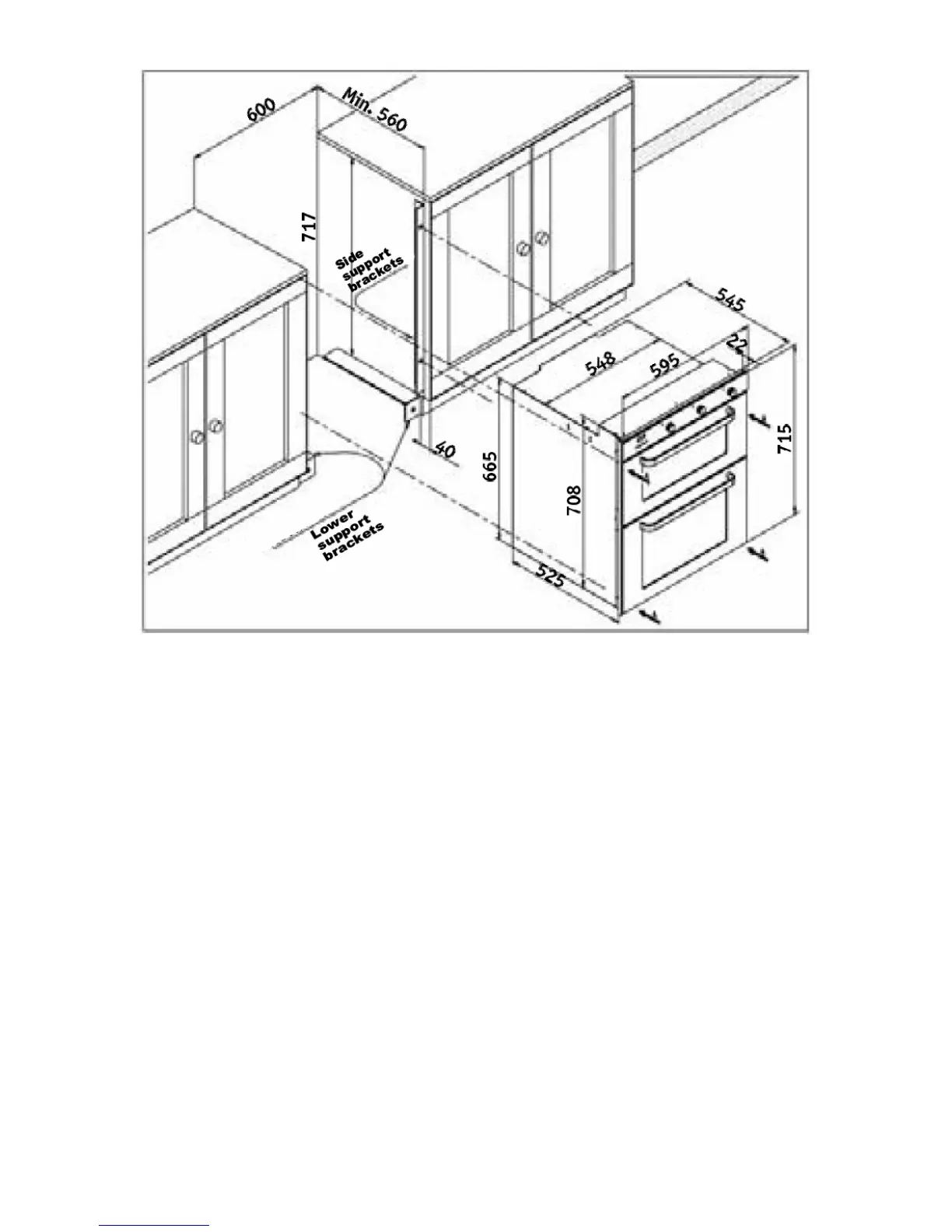

Installation between two separate cabinet units
o Measure a distance of 717 mm from the underside of the work
top and mark the position of the lower support brackets.
o Fix the lower support brackets in this position to the side of the
rt brackets into position.
d
cabinet units. They need to be positioned 40 mm back from the
front edge of the cabinet units
o Mark the position of the side support brackets, ensuring that
they are also positioned 40 mm back from the front edge of the
cabinet units. Fix the side suppo
o Gently slide the oven back onto the lower support brackets an
fix the oven to the front frame of the cabinets by using the four
screws provided.
