Installation into the underside of a kitchen cabinet

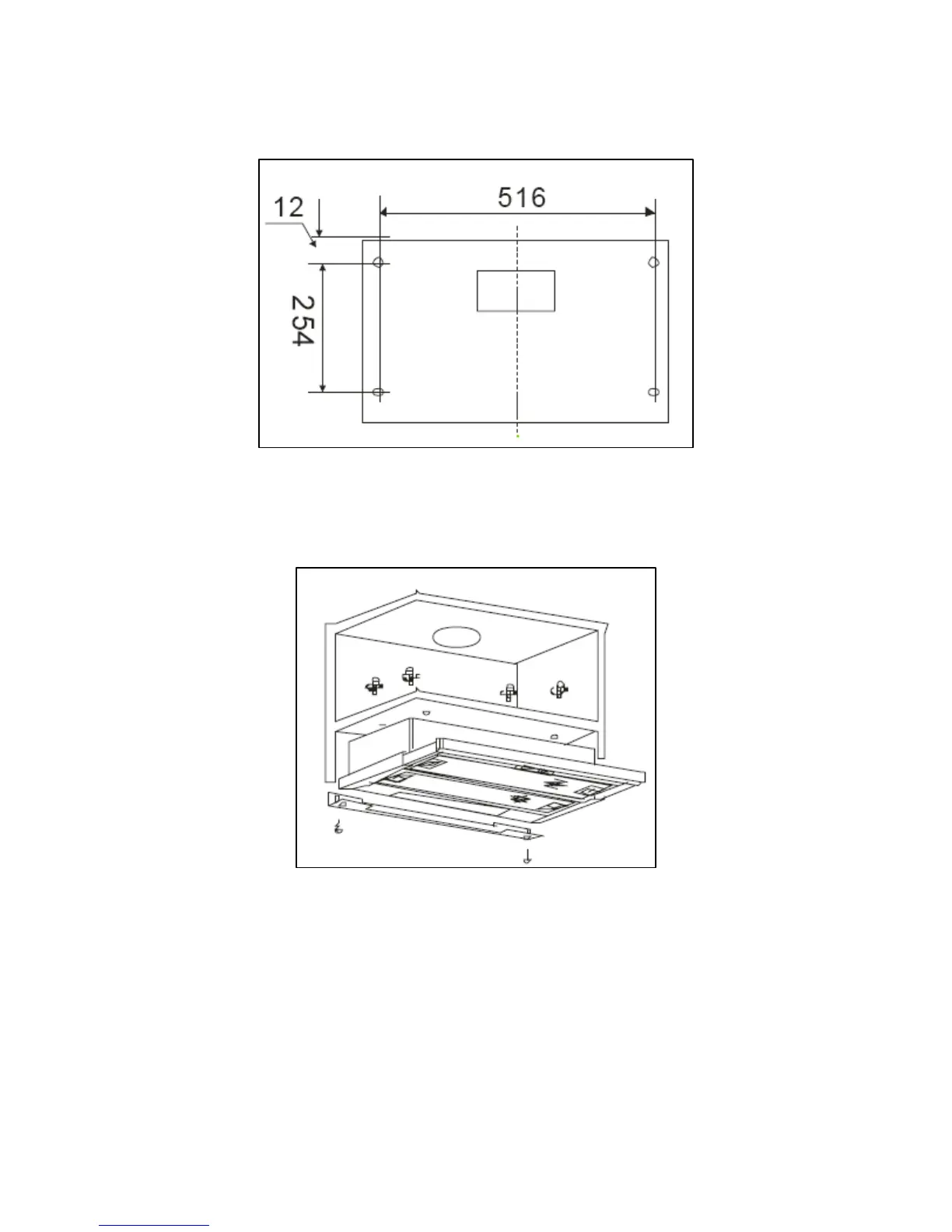

1) Drill holes of 4 mm diameter on the bottom of the cupboard you
wish to hang the hood from in accordance with the diagram
below:
2) Put the one way valve on the cooker hood and then install the
hood on the bottom of the cupboard. Fasten the hood securely in
place by tightening the screws.
3) Install the adjusted board on the bottom of the hood in order to
keep out the gap between the hood back and the cupboard.
19
