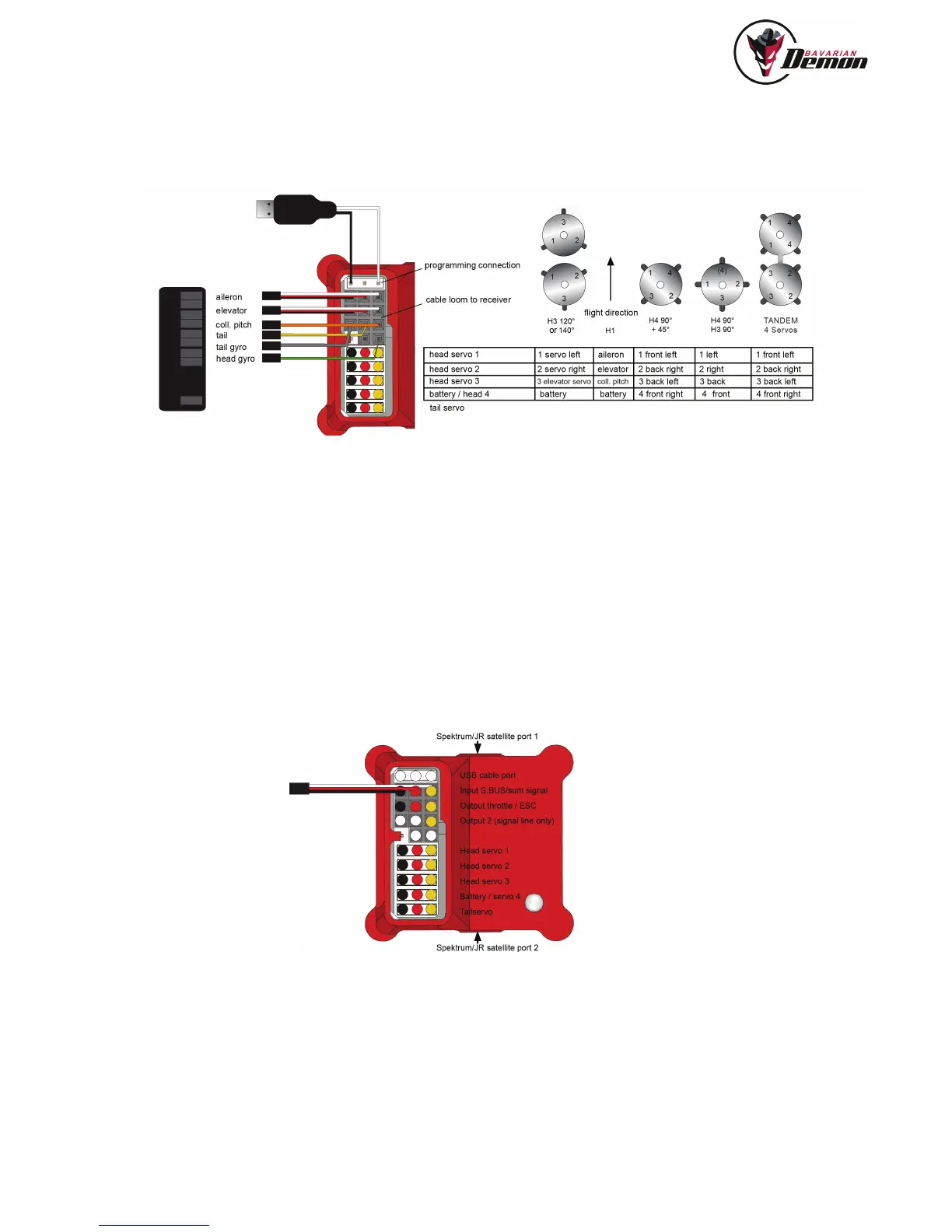

CONNECTION
VIA SERVO OUTPUTS (STANDARD RECEIVER)
VIA FUTABA S.BUS OR SUM SIGNAL (ROBBE, JETI, GRAUPNER, HITEC, ETC.)
If the receiver features a sum signal (PPM pulse or ‚serial PWM‘) output, it can be connected via this output, so only one patch cable is needed. Activating this feature is
done via PC software. In this case, the throttle channel is looped through by the system, its output supplied at the neighboring slot named “Output throttle / ESC”.
A further channel is available, Output2, e.g. for speed controller gain, illumination accessories or retractable gear. This channel supplies only the signal pin. The power
needs to be supplied via a Y-cable from e.g. one of the servo ports.
5
Sum.-/PWM-Signal
VIA SATELLITE RECEIVERS (SPEKTRUM / JR)
Up to 2 (diversity) receivers can be connected, one at each side of the system. See the info texts in the PC software for activation, adjustments and satellite binding. No
main receiver is needed for binding the satellites to the transmitter. The usual input ports for tail gyro and head gyro channel must be idle, i.e. not connected to any signal
source. When using Spektrum/JR satellites, the system needs to be supplied with min. 5,5V. 4,8V batteries (4x NiMH or NC) are not suffi cient, the receivers may fail
under load or not bind at all.
