Baxi 946 - Burner.; Ceramic Coals Installation

! We suggest that you remove the ceramic fuel effect pieces in the reverse order to
that shown in this guide.
Burner.
! The burner surface can be carefully cleaned to remove any loose particles after
taking off the ceramic fuel effect pieces . Make sure that no particles are pushed into the
burner holes.
CERAMIC COALS INSTALLATION
This section is for models supplied with a ‘Coal’ fuel effect only.
For ‘Pebble fuel effect’ see section headed
‘Ceramic pebble installation’.
The ceramic fuel effect may cause staining /
discolouration to decorative surfaces. It is
therefore advisable to protest decorative
surfaces.
1. Place the base coal in the firebox (See figure
4).
2. Install the fourteen loose overlay ceramic
coals as follows. The smooth surfaces of
the ceramic coals should be at the bottom
and back. Place five of the ceramic coals
along the top of the front base coal (See
figure 5). The ceramic coals should be
evenly spaced. Each ceramic coal can be
rotated to give a random effect. Placing the
ceramic coals with flat sides facing
forward will give a very uniform
appearance.
Important : The front ceramic coals
should not cover the opening slots in the
base ceramic coal. If the opening slots in
the base ceramic coal are covered by more than 2 -3 millimetres a poor flame picture
will result (See figure 6).
A gap is required between the outer left hand ceramic coal and the ceramic coal to its
right. This is for pilot viewing.
3.
Place five loose ceramic coals on top of the first row of ceramic coals. These should
Page 9
OWNER GUIDE

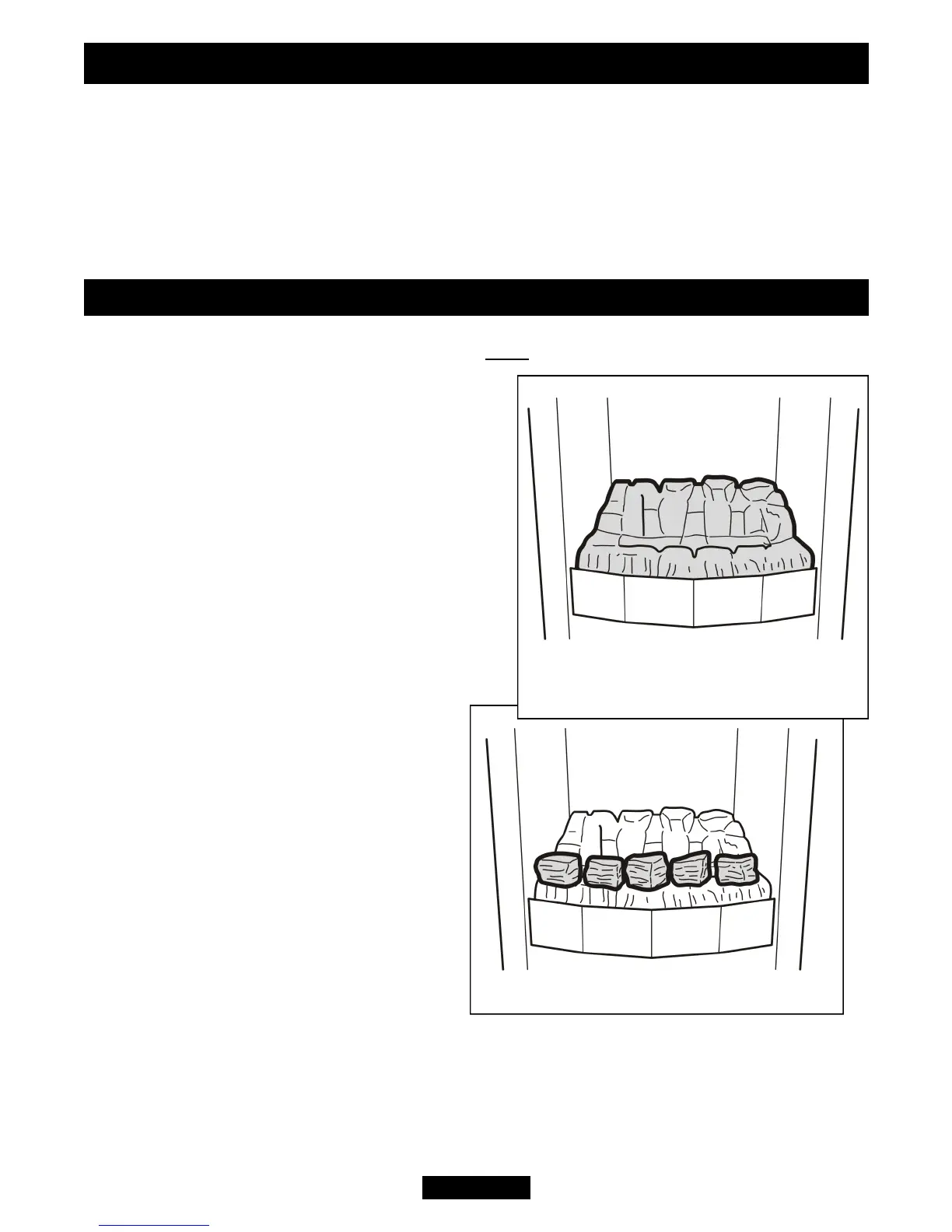

Figure 4. Base coal position
Figure 5. First row of ceramic coals
