Baxi JSGNW 35 - INSTALLATION; 4.1. CHOOSING THE INSTALLATION POSITION

9

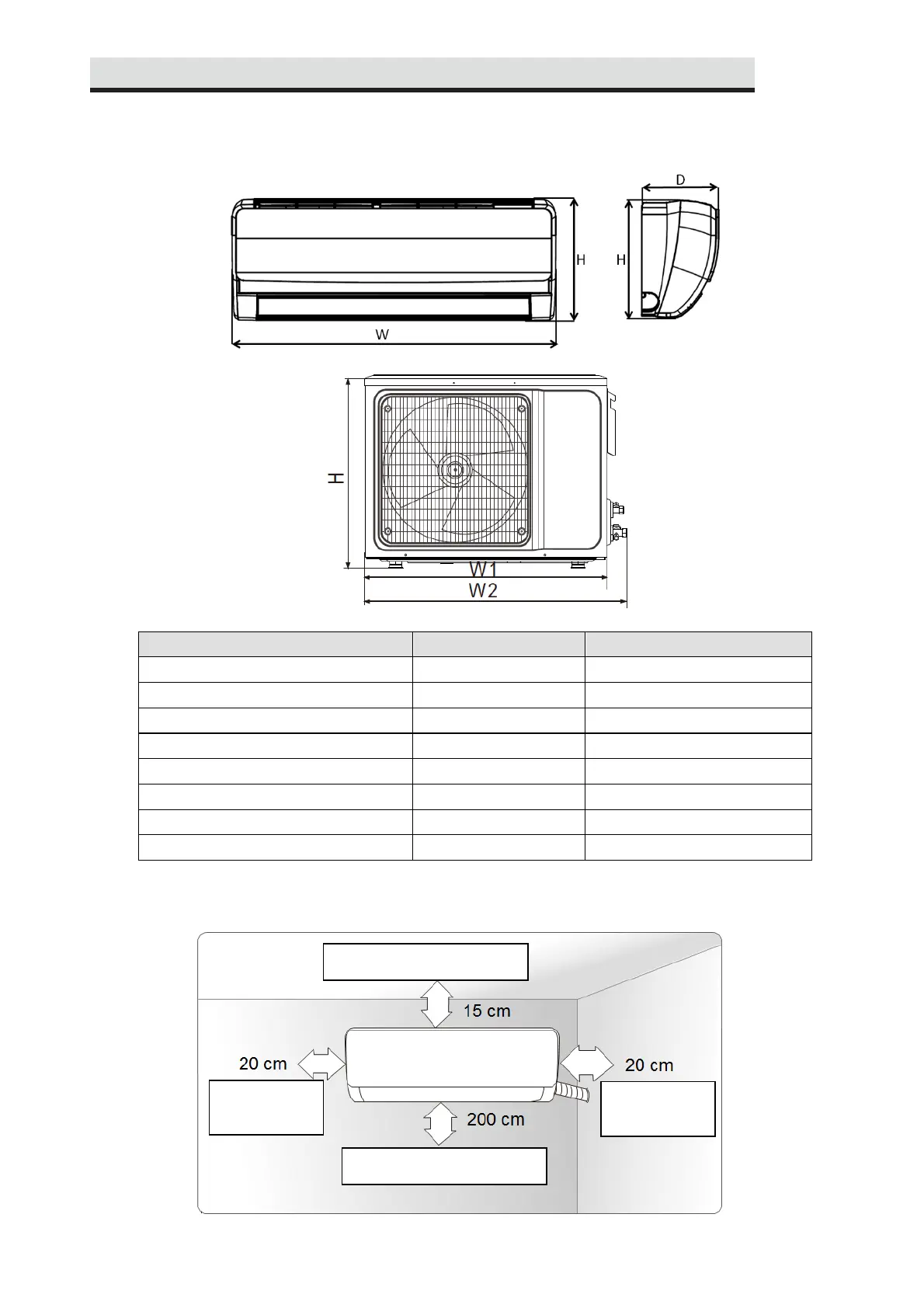

4.1. CHOOSING THE INSTALLATION POSITION
UNIT
MODEL
DIMENSIONS (mm)
INDOOR UNIT (WxHxD)
JSGNW25
792*292*201
OUTDOOR UNIT (W1(W2)xHxD)
LSGT25-S
720(780)*540*260
INDOOR UNIT (WxHxD)
JSGNW35
792*292*201
OUTDOOR UNIT (W1(W2)xHxD)
LSGT35-S
720(780)*540*260
INDOOR UNIT (WxHxD)
JSGNW50
940*316*224
OUTDOOR UNIT (W1(W2)xHxD)
LSGT50-S
802(860)*535*298
INDOOR UNIT (WxHxD)
JSGNW70
1132*330*232
OUTDOOR UNIT (W1(W2)xHxD)
LSGT70-S
900(950)*681*343
INDOOR UNIT
4. INSTALLATION
Space from
the wall
Space from
the wall
Space from the ceiling
Space from the floor
