Page 8 ?)+('-71;%7/:(K*-&'%);&L(2:-/&-(7/::(#MNNNMN!!MOPQP4 Item 64416
BC?9DR ST9>CDFSH GCFHD9HCHU9B9DIT
?%6*+-(C0((T)+'/.:-(C%+(B*22:A(B-'*2
G
A
E
E
H
F
B
Non-lubricated Tools Lubricated Tools
A
B
C
C
D
A

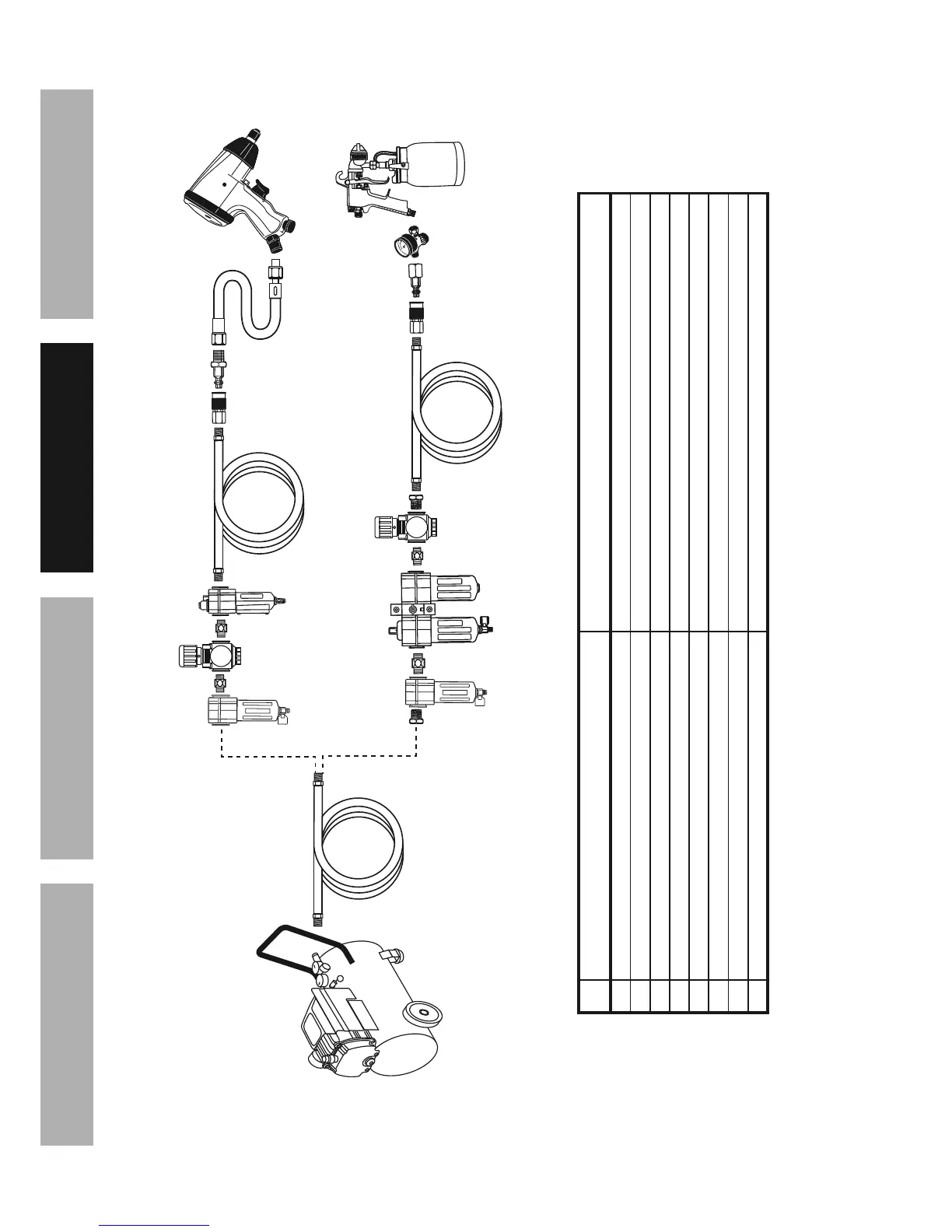

Y-&7+%2'%); ?*;7'%);
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or workpiece
C Regulator Adjusts air pressure to tool D Lubricator (optional) For air tool lubrication
E Coupler and Plug Provides quick connection and release
F Leader Hose (optional) Increases coupler life
G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece
H Air Adjusting Valve (optional) For fine tuning airflow at tool
