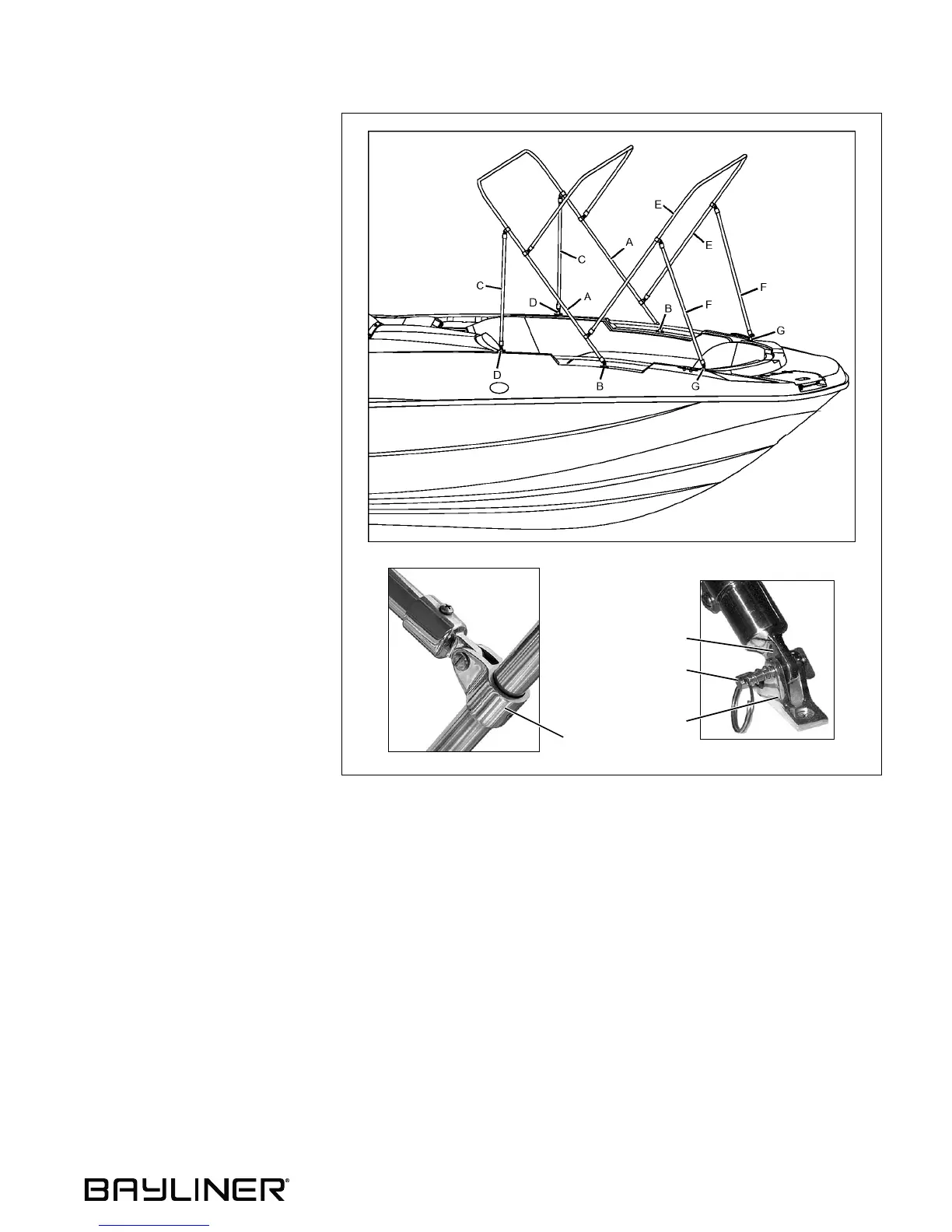

Forward Bimini Top (If Equipped)
1. Insert the end eyes of the main
bow (A) into the deck hinges
(B) and insert the securing pins.
2. Insert the end eyes of the aft
braces (C) into the deck hinges
(D) and insert the securing pins.
3. Pull the secondary bow (E) and
braces (F) forward.
4. Insert the end eyes of the for-
ward braces (F) into the deck
hinges (G) and insert the secur-
ing pins.
• The jaw slides should not need to
be adjusted.
• If you decide to adjust the jaw
slide positions, get the correct
measurements from your selling
dealer.
END EYE
SECURING
PIN
HINGE
JAW SLIDE
