22 CHAPTER 4: SYSTEM DIAGRAMS
Rendezvous Owner’s Manual Supplement

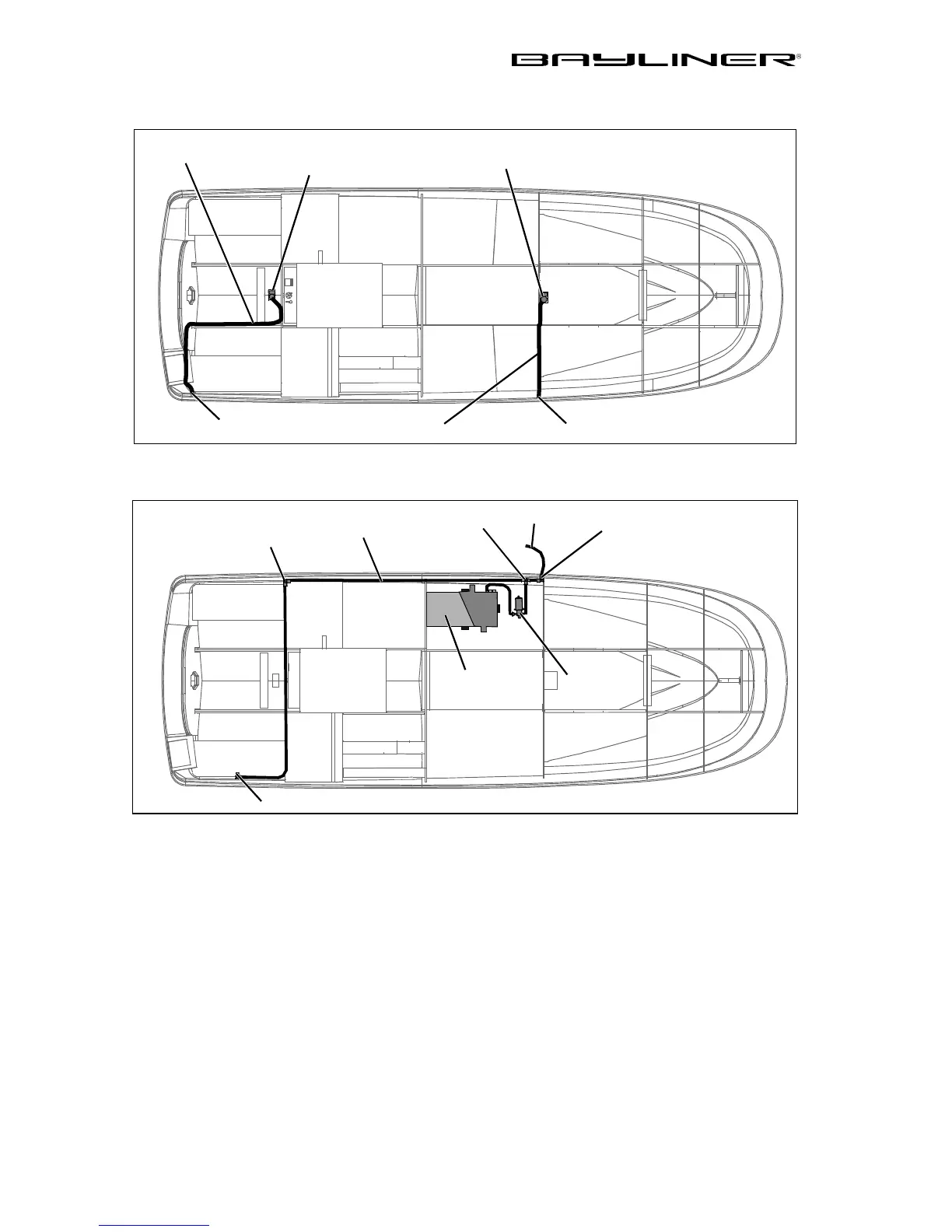

Bilge Pump Routing
Freshwater System Routing
TO THRU-HULL
AFT BILGE PUMP
& FLOAT SWITCH
FORWARD BILGE PUMP
& FLOAT SWITCH
BILGE HOSE
BILGE HOSE
TO THRU-HULL
2459
TO SINK
TO TRANSOM SHOWER
WATER
HOSE
90 DEGREE
ELBOW
90 DEGREE ELBOW
WATER
TANK
WATER
PUMP
T- F I T TIN G
(TYPICAL)
2459
