Bayliner Rendezvous - Engine and Accessory Harnesses

CHAPTER 4: SYSTEM DIAGRAMS 23
Rendezvous Owner’s Manual Supplement

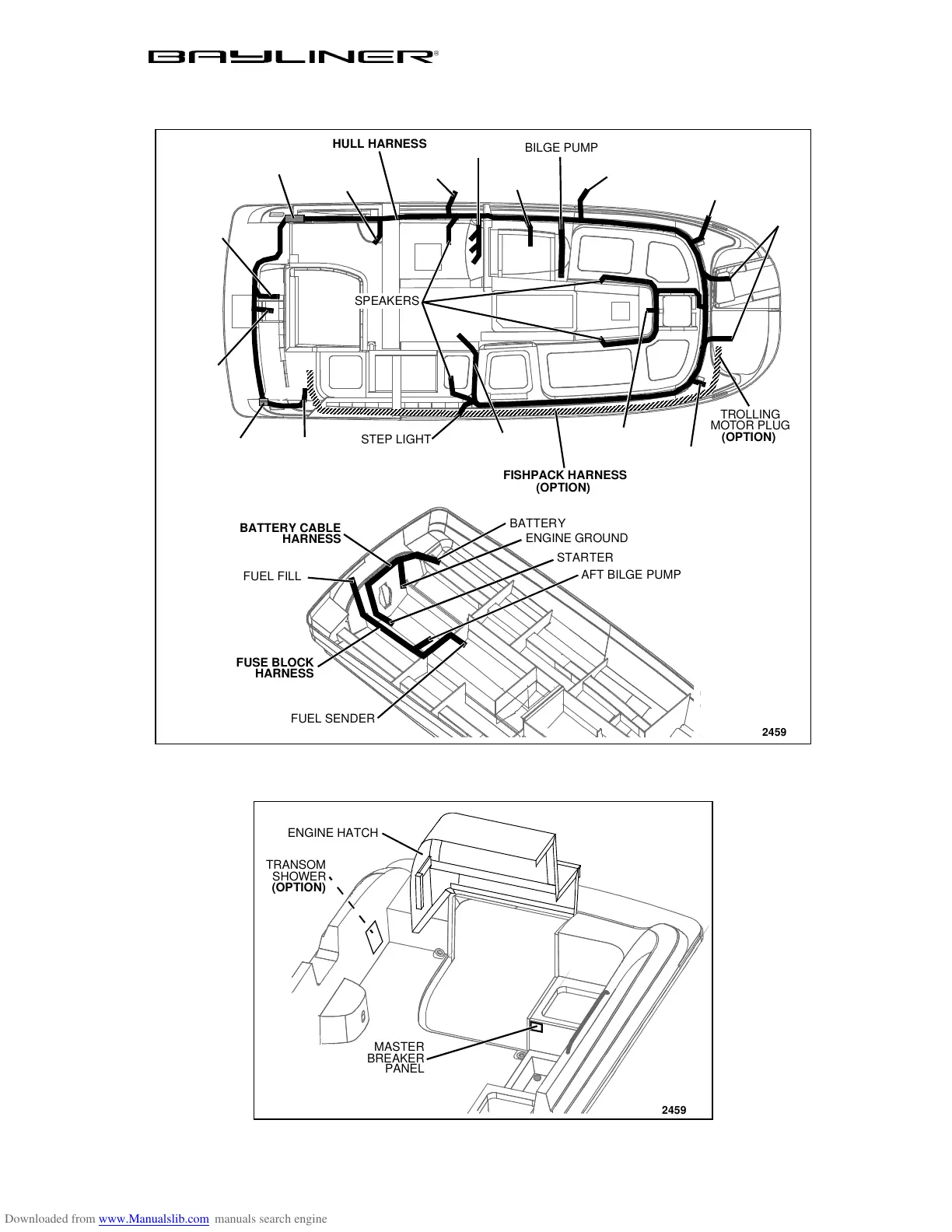

Electrical Harness Routings
Aft Cockpit
FLOOD
LIGHTS
BOW
LIGHT
BOW
LIGHT
COURTESY
LIGHT
LIGHT
IN HEAD
DASH
WATER
PUMP
SHIFTER
STEP
LIGHT
CHAFFE
PROTECTION
ENGINE
HOOKUP
STERN
LIGHT
FUSES
BLOWER
MOTOR
HORN








TROLLING
MOTOR PLUG
BILGE PUMP
STEP LIGHT
FISHPACK HARNESS

SPEAKERS
HULL HARNESS
(OPTION)
FUSE BLOCK
HARNESS
BATTERY CABLE
FUEL FILL
HARNESS
BATTERY
ENGINE GROUND
STARTER
AFT BILGE PUMP
FUEL SENDER
2459
(OPTION)
TRANSOM
MASTER
BREAKER
PANEL
ENGINE HATCH
2459
(OPTION)
SHOWER
