24 CHAPTER 4: SYSTEM DIAGRAMS
Rendezvous Owner’s Manual Supplement

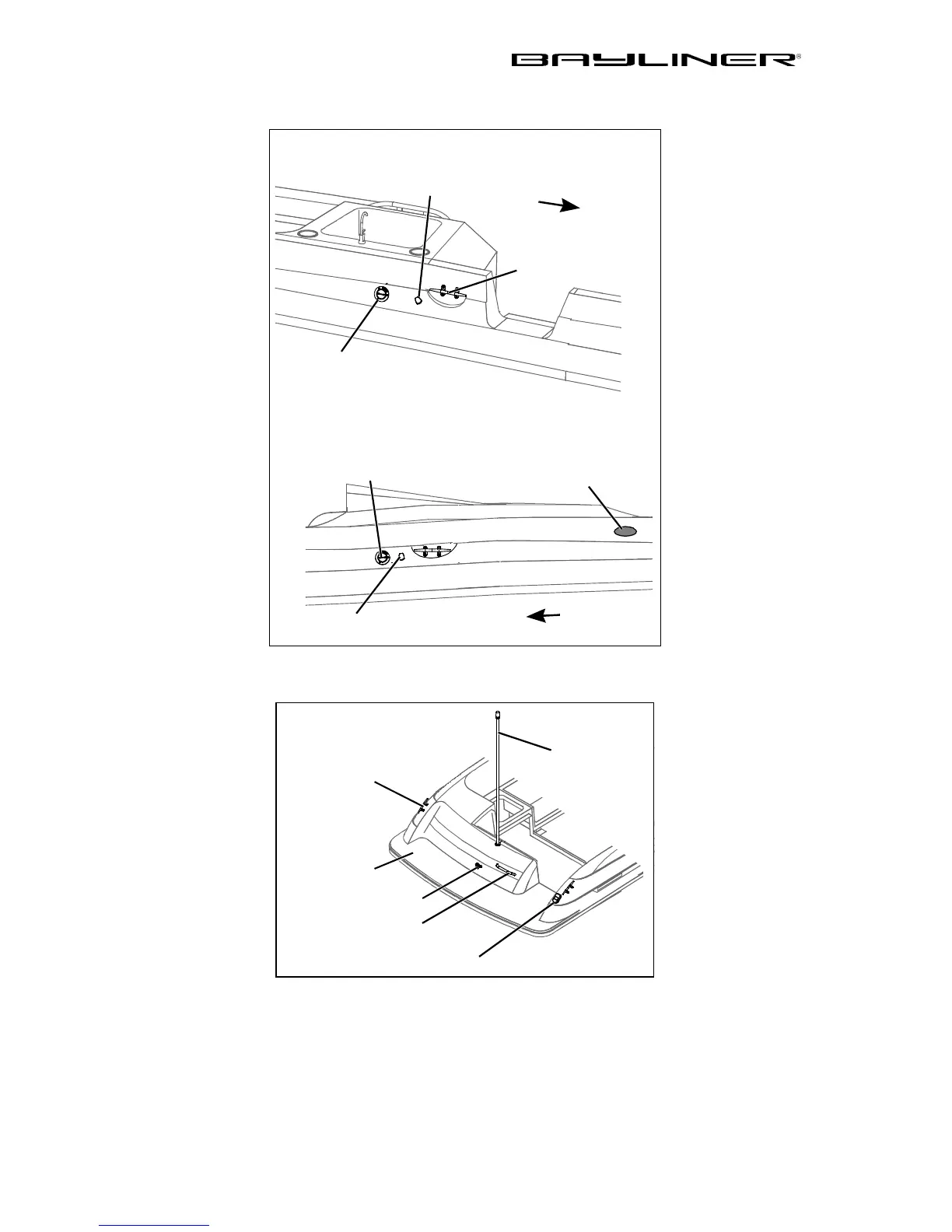

Deck Fill & Pump-out Fittings
Transom Hardware
VIEW OF PORT SIDE DECK
VIEW OF STARBOARD SIDE DECK
VENT (OPTION)
FITTING (OPTION)
WATER TANK FILL
WATER TANK
CLEAT (TYPICAL)
WASTE TANK PUMP-OUT
FITTING (OPTION)
WASTE TANK
VENT (OPTION)
HORN
2459
AFT
AFT
SKI TOW RING
TRANSOM GRAB RAIL
AFT CLEAT
FUEL TANK FILL FITTING
& TANK VENT COMBO
(TYPICAL)
SWIM STEP
2459
STERN LIGHT
