Assembly Instructions
1. Unpack the units and confirm that you have all hardware and required parts.

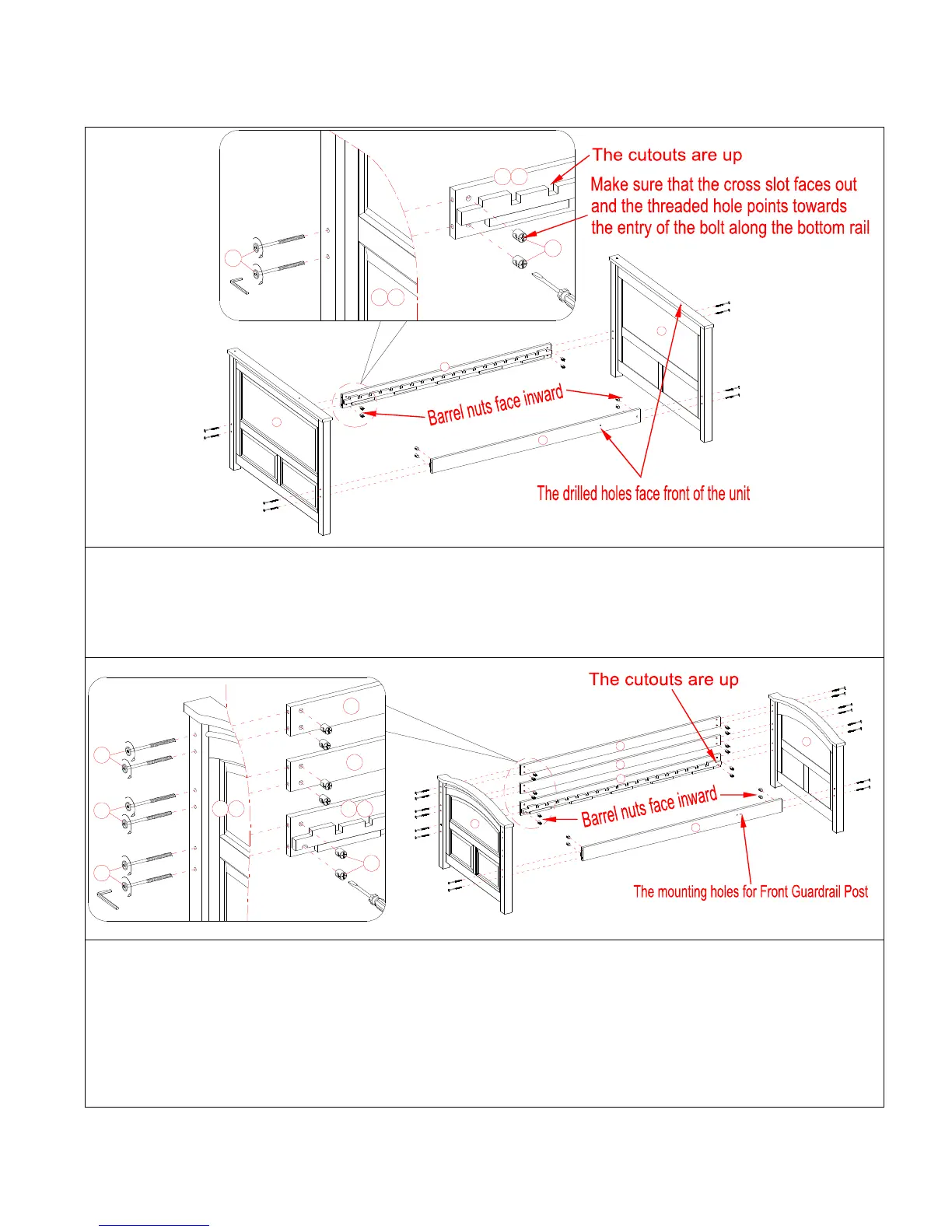

2. Insert two barrel nuts (DD) into each end of the lower side rails (E and F).
3. Bolt the lower side rails (E and F) between the lower headboard and footboard (A and B) using the bolts
(AA) through drilled holes in the posts and screw into the barrel nuts (DD) in the lower side rails.
WARNING LABEL ON HEADBOARD MUST ALWAYS FACE INWARD.
4. Insert two barrel nuts (DD) into each end of the upper side rails (G and H) and long guardrails (I).
5. Bolt the upper mattress side rail (H) and two upper long guardrails (I) between the upper headboard and
footboard (C and D) using the bolts (AA) through drilled holes in the back posts and screw into the inserted
barrel nuts (DD) as shown in the illustration.
6. Attach the upper ladder side rail (G) between the upper headboard and footboard (C and D) using four bolts
(AA). Once all rails are attached, fully tighten all the bolts.
AA
AA
AA
I
I
G H
DD
C
D
G
H
I
I
C D
AA
DD
E F
A B
A
B
E
F
