BAYTEK GAMES SQUIGGLE - Power Supply & Bonus Display Wiring

25

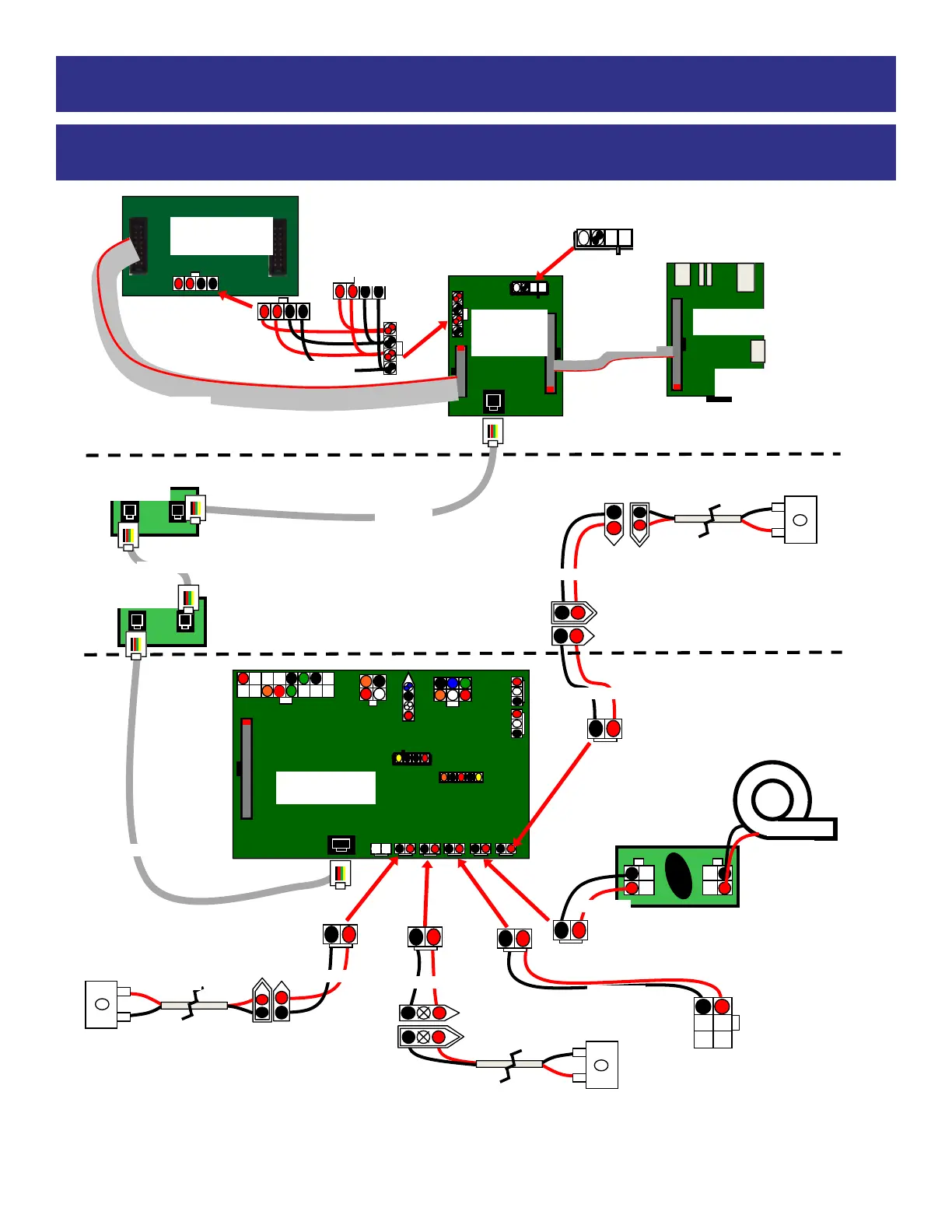

WIRING DIAGRAM
POWER SUPPLY/ BONUS DISPLAY
AACE6547
Yellow Ball Drop Solenoid
4 Ohms
AACB4051-2
Power Supply & Bonus Display Wiring Diagram
A5LD1052
Bonus Display
AACE6533
5 VDC to Display
Driver Board in
marquee
AACB9603
Display Driver
Board
AACE9609
Not Used
AACE6503
Top of the game
Bottom of the game
Brown
Connectors
AACE6521
AACE6548
AACB4051-2
Marquee Board above the game
Top of the game
AACB9601-SQ
I/O Aux Board
AACE6516
AACE6522
AASO6500
Ball Stack Solenoid
4 Ohms
AABL6500
12V yellow
Ball blower
0.8 Ohms
AACB6503
Current Limiter
AACE6515
AACE6518
To AC Driver
Board
Controlling red
balls blower
AACE6526
AACE6531
AACE6532
AASO6501
Ball Sort Solenoid
4 Ohms
AAMBRPI-SQ-M
Rasp Pi Main Board
HD Card
AASD0008A
A5CBL-RBN40-1
5 VDC to
Display
