BAYTEK GAMES SQUIGGLE - LED Wiring - Section 1

26

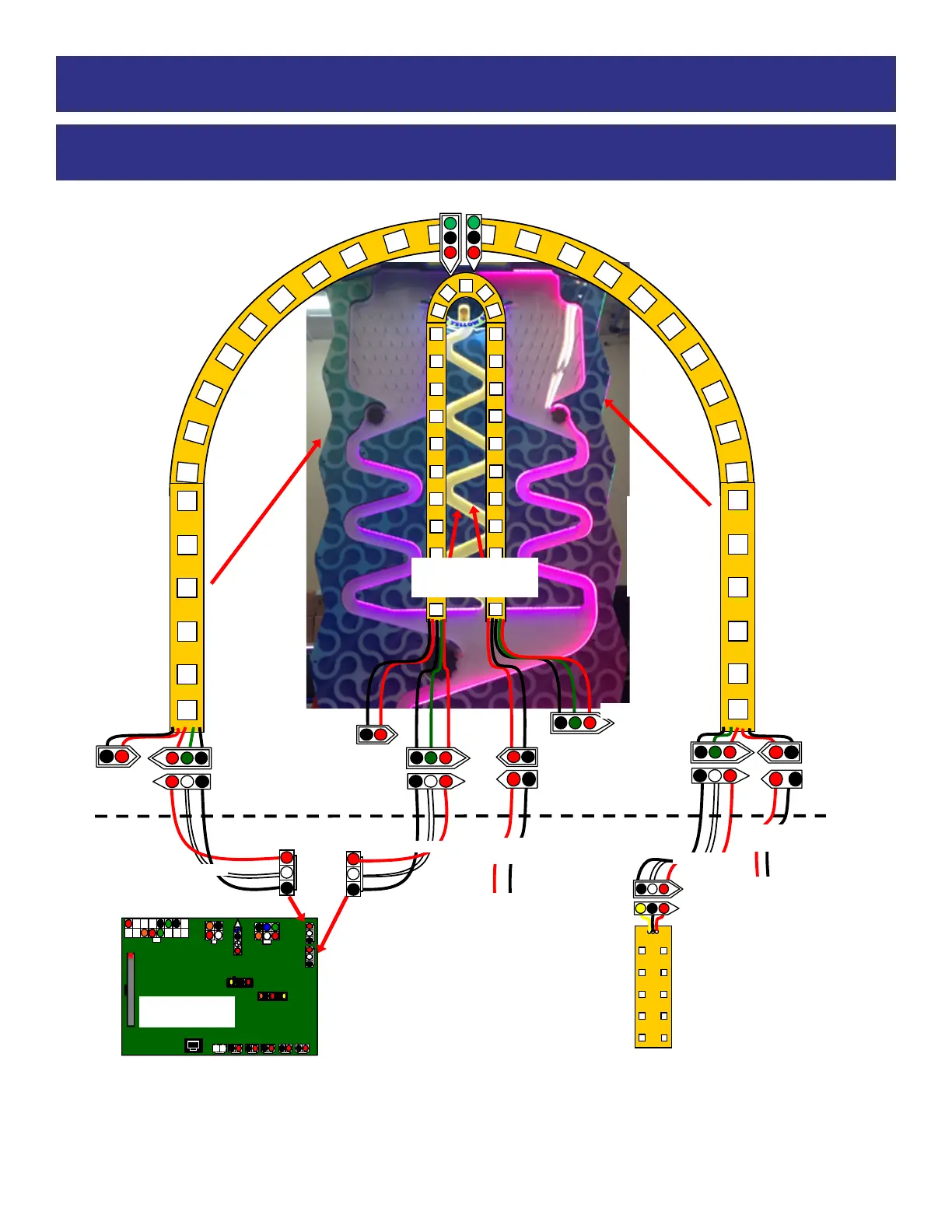

WIRING DIAGRAM
LED
LED
AACE6530
Left Outside
Edge LED’s
Not Used
AACE6510
Black
Connectors
White
Connectors
AACE6552
Ball Light
Board
Top of the game
Bottom of the game
Not Used
Green
Connectors
AACE6507
5 Volts
5 Volts DC
from Power
Distribution
Board
Pink
Connectors
AACE6507
5 Volts
5 Volts DC
from Power
Distribution
Board
AACE6511
AACE6510
AACE6519
Right Outside
Edge LED’s
AACB9601-SQ
I/O Aux Board
Blue
Connectors
Red
Connectors
Not Used
AACE6524
Inside and outside of
inside track LED’s
WIRING DIAGRAM
