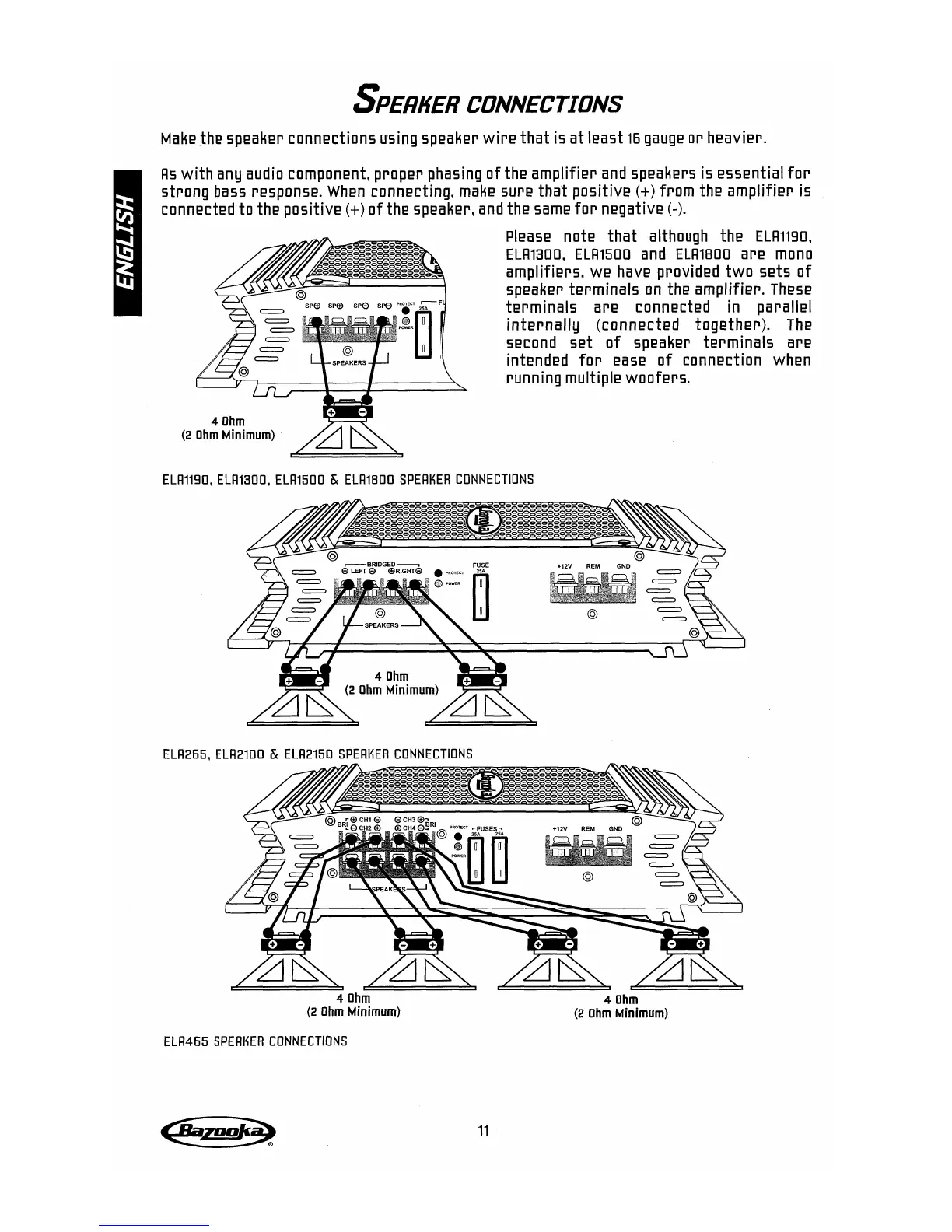

SPERKER CONNECTIONS
Make ,the speaker connections u'sing speaker wire that is at least 16 gauge or heavier.
Rs with any audio component. proper phasing of the amplifier and speakers is essential for
strong bass response. When connecting, make sure that positive (+) from the amplifier is
connected to the positive
(+) of the speaker, and the same for negative (-).
Please note that although the ELR1190,
ELR1300, ELR1500 and ELR1BOO are mono
amplifiers, we have provided two sets of
speaker terminals on the amplifier. These
terminals are connected in parallel
internally (connected together). The
second set of speaker terminals are
intended
for ease of connection when
running multiple woofers.
4 Ohm
(2 Ohm Minimum)
ELR1190, ELR1300, ELR1500 & ELR1800 SPERKER CONNECTIONS
ELR265, ELR2100 & ELR2150 SPERKER CONNECTIONS
4 Ohm
(2 Ohm Minimum)
ELR465 SPERKER CONNECTIONS
11
4 Ohm
(2 Ohm Minimum)
