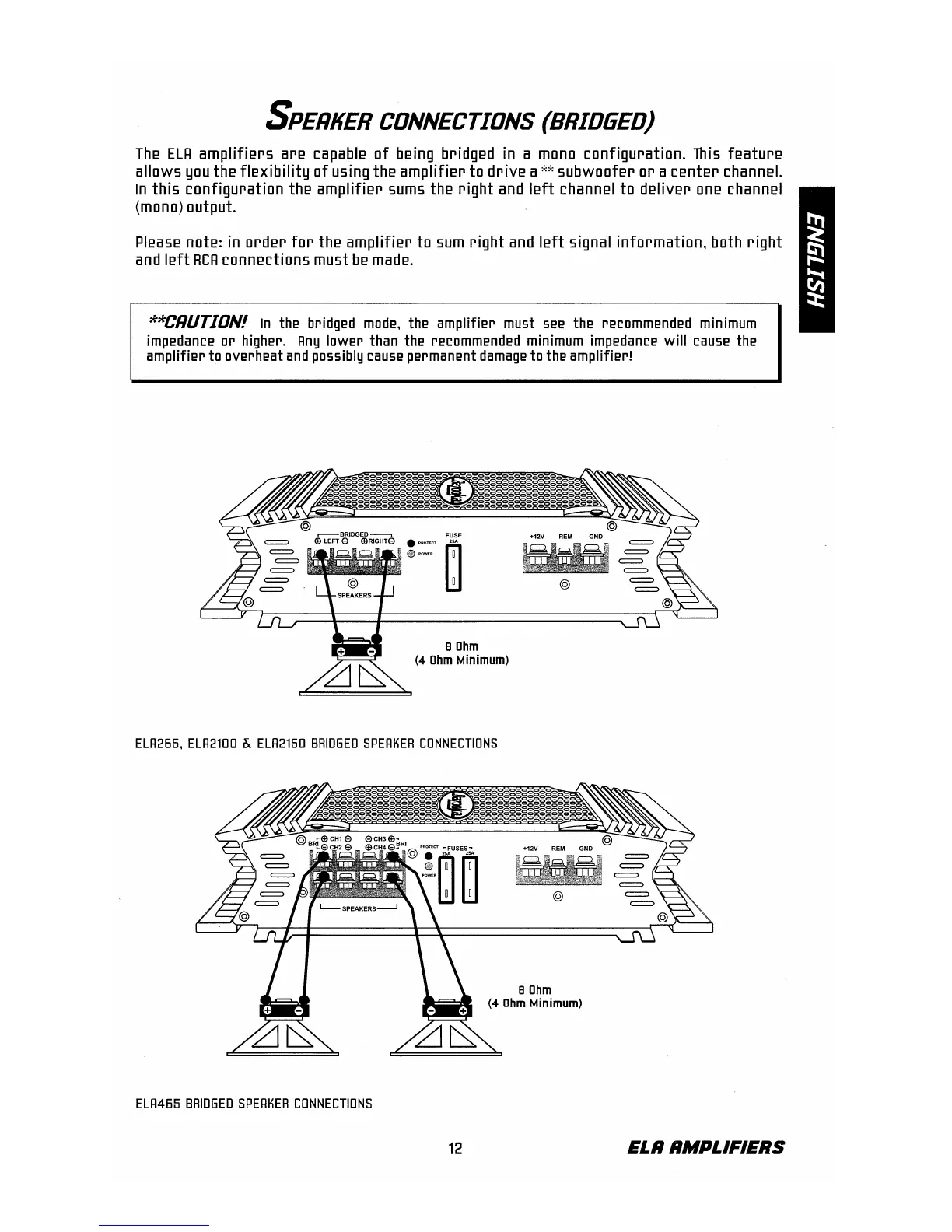

SPERKER
CONNECTIONS
(BRIDGED)
The
ELR
amplifiers
are
capable
of
being bridged in a mono
configuration.
This
feature
allows you the
flexibility
of
using
the
amplifier
to
drive
a
**
subwoofer
or
a
center
channel.
In
this
configuration
the
amplifier
sums the
right
and
left
channel
to
deliver
one channel
(mono) output.
Please note: in
order
for
the
amplifier
to
sum
right
and
left
signal
information,
both
right
and
left
RCR
connections
must
be
made.
**CRUTIONI
In
thE
bridgEd
modE,
thE
amplifiEr must
SEE
thE
rEcommEndEd
minimum
impedancE
or higher.
Rny
lowEr than
thE
rEcommEndEd
minimum
impedancE
will
cause
the
amplifier to oVErheat
and
possibly
caUSE
pErmanEnt
damagE
to
thE
amplifier!
8
Ohm
(4
Ohm
Minimum)
ELR265,
ELR2100
&
ELR2150
BRIDGED
SPERKER
CONNECTIONS
8
Ohm
(4
Ohm
Minimum)
ELFl465
BRIDGED
SPERKER
CONNECTIONS
12
ELR RMPLIFIERS
