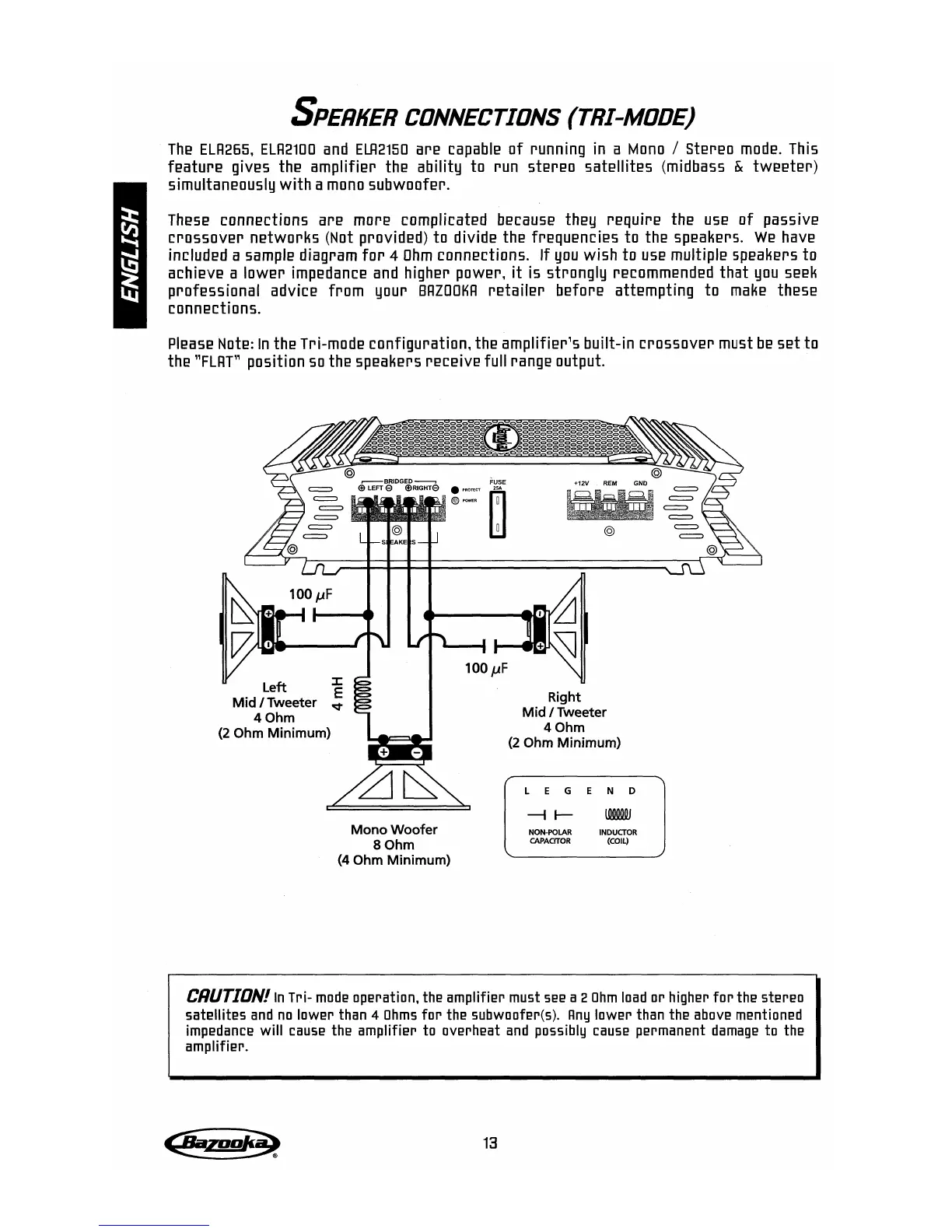

SPERKER
CONNECTIONS
(TRI-MOOE)
The
ELR265,
ELR2100
and
ELR2150
are
capable
of
running
in
a
Mono
/ stereo
mode.
This
feature gives the amplifier the ability to run stereo satellites (midbass
&.
tweeter)
simultaneously
with
a
mono
subwoofer.
These
connections are more complicated because they require the
use
of
passive
crossover networks
(Not
provided) to divide the frequencies to the speakers.
We
have
included a
sample
diagram
for
4
Ohm
connections.
If
you
wish to
use
multiple speakers to
achieve a lower impedance
and
higher power,
it
is strongly recommended that
you
seek
professional advice
from
your
BRZOOKR
retailer
before attempting to
make
these
connections.
Please
Note:
In
the Tri-mode configuration, the amplifier's built-in crossover must
be
set
to
the
"FLRT"
position
so
the speakers receive full range output.
Left
Mid
I Tweeter
40hm
(2
Ohm
Minimum)
Mono
Woofer
80hm
(4 Ohm
Minimum)
Right
Mid
I Tweeter
40hm
(2
Ohm
Minimum)
LEG
END
NON-POLAR
INDUCTOR
CAPACITOR
(COIL)
CRUTIONI
In
Tri-
mode
operation,
the
amplifier
must see a 2
Ohm
load
or
higher
for
the
stereo
satellites
and
no
lower
than 4
Ohms
for
the subwoofer(s).
Rny
lower
than the above mentioned
impedance
will
cause the
amplifier
to
overheat
and possibly cause
permanent
damage
to
the
amplifier.
13
