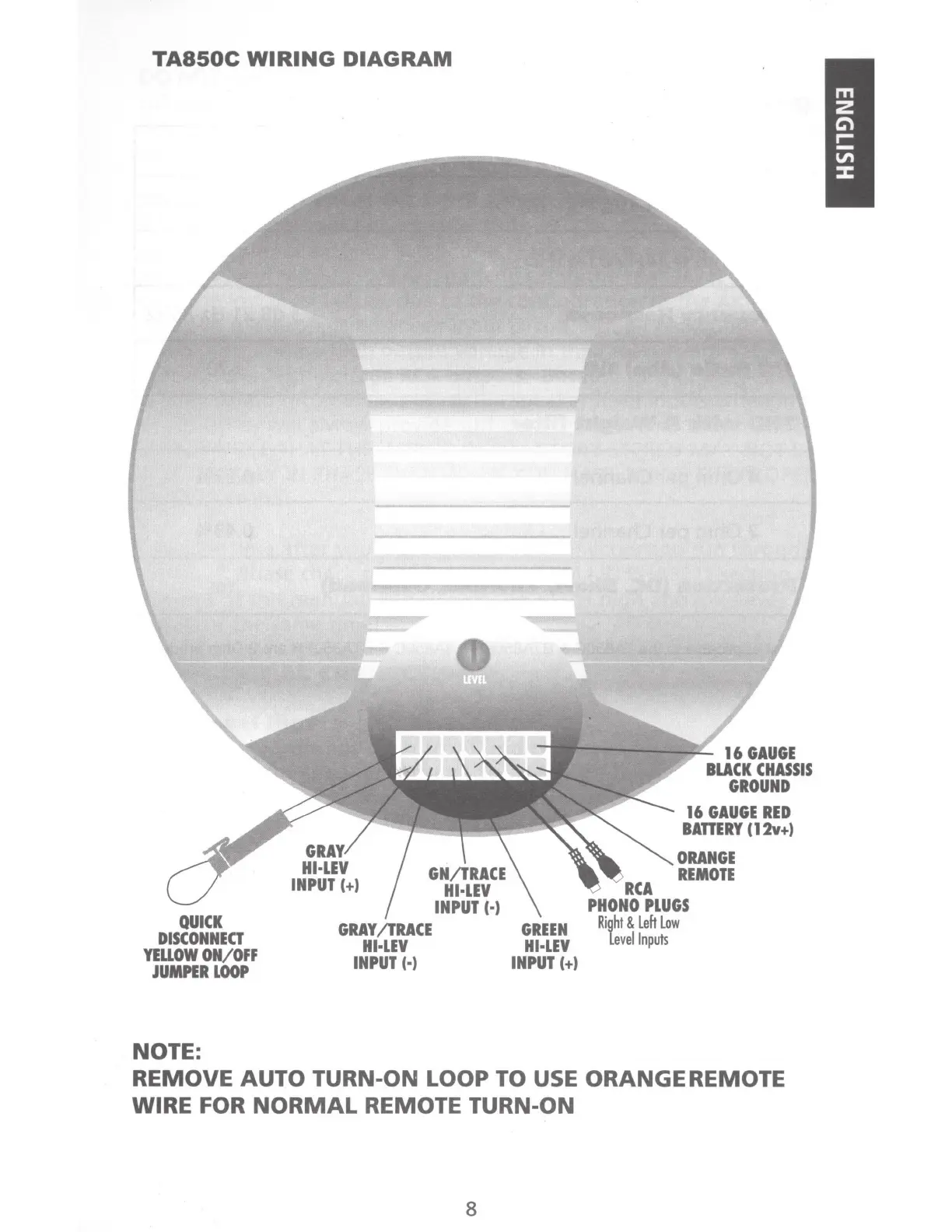

TABSOC WIRING DIAGRAM
QUICK
DISCONNECT
YELLOW ON/OFF
JUMPER LOOP
NOTE:
GN/TRACE
HI·LEY
INPUT(-)
GRAY/TRACE
HI· LEV
INPUT(-)
GREEN
HI·LEV
INPUT(+)
16 GAUGE
BLACK CHASSIS
GROUND
16 GAUGE RED
BAnERY (12¥+)
ORANGE
REMOTE
RCA
PHONO PLUGS
Right & left low
level Inputs
REMOVE AUTO TURN-ON LOOP TO USE ORANGE REMOTE
WIRE FOR
NORMAL REMOTE TURN-ON
8
Remote Turn-On is
Actually Blue/White
The GN & GN/TRACE wires shown
are actually WHITE & WHITE/TRACE
