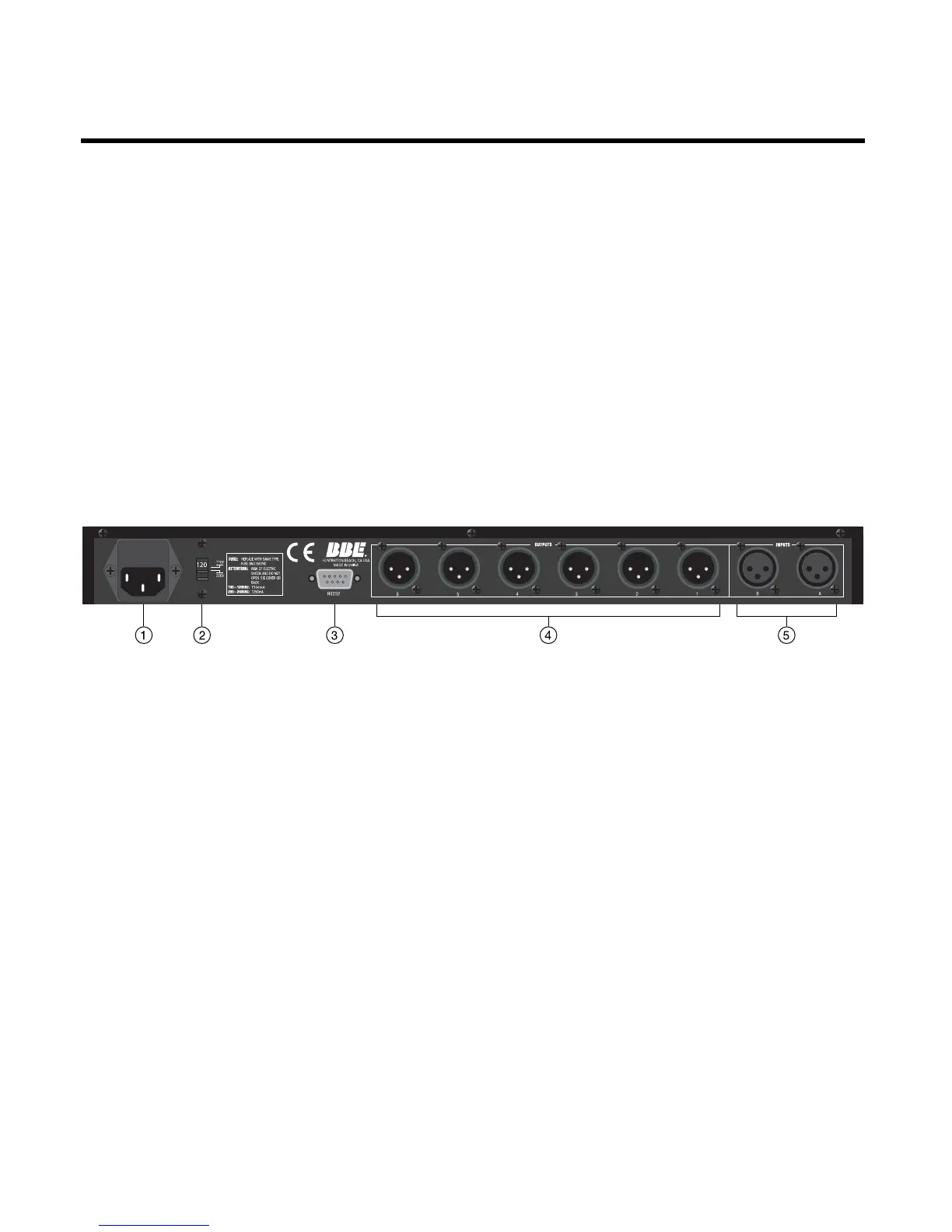

REAR PANEL
1. Power Jack
This accepts a standard IEC type AC bayonet plug.
2. RS232 Interface
Connect this to the serial port on a PC using the included cable or other standard DB-9
type cable. With the software installed, the PC can now monitor and program the
DS24/DS26.
3. XLR Input
These are balanced (Pin 2 Hot) XLR inputs that accept the signal from the (usually main)
outputs of the mixer.
4. XLR Output
These are balanced (Pin 2 Hot) XLR outputs. Depending on the model, there will either be
4 or 6 outputs.
