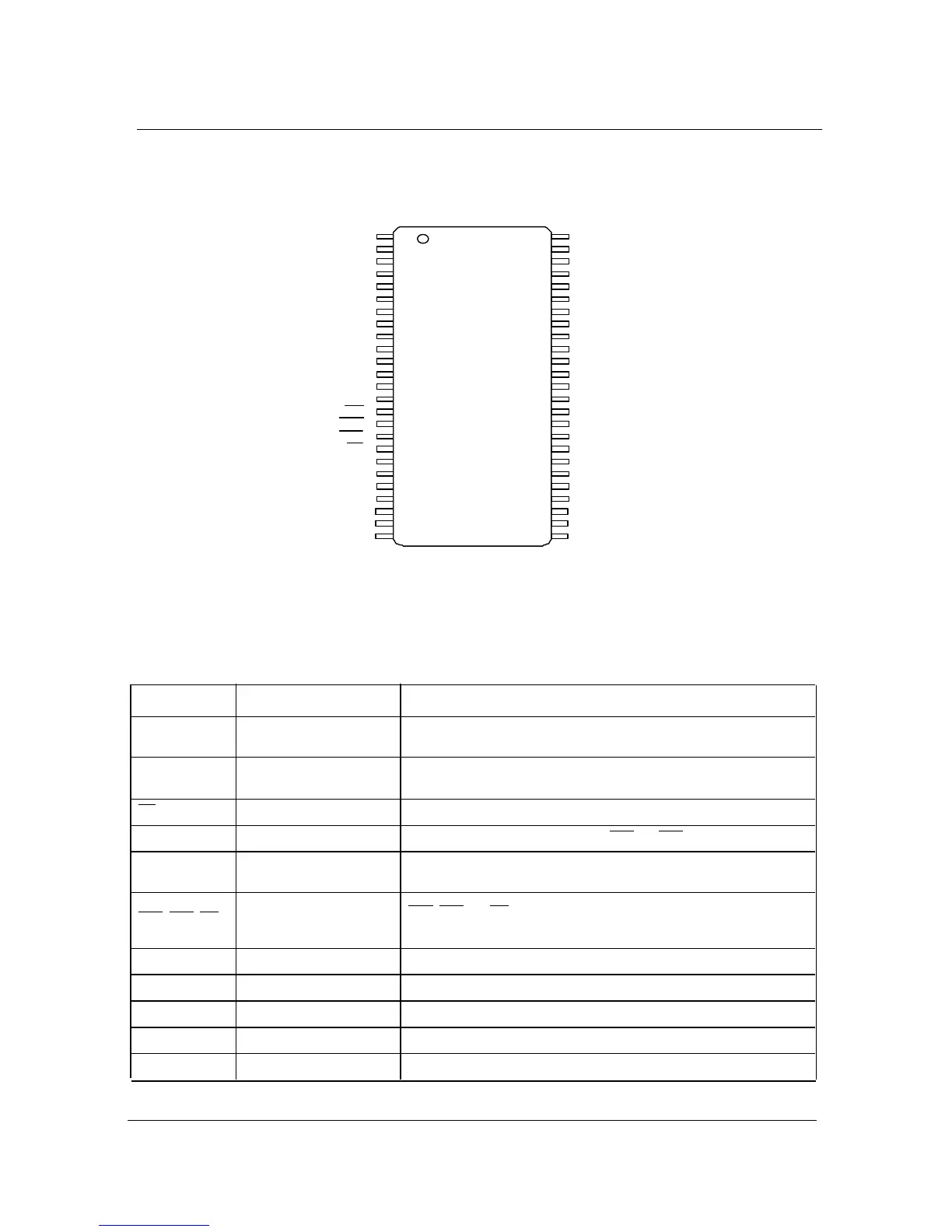

PIN CONFIGURATION
PIN DESCRIPTION
PIN PIN NAME DESCRIPTION
CLK Clock
The system clock input. All other inputs are referenced to the SDRAM on the
rising edge of CLK.
CKE Clock Enable
Controls internal clock signal and when deactivated, the SDRAM will be one
of the states among power down, suspend or self refresh.
CS Chip Select Command input enable or mask except CLK, CKE and DQM
BA Bank Address Select either one of banks during both RAS and CAS activity.
A0 ~ A10 Address
Row Address : RA0 ~ RA10, Column Address : CA0 ~ CA7
Auto-precharge flag : A10
RAS, CAS, WE
Row Address Strobe,
Column Address Strobe,
Write Enable
RAS, CAS and WE define the operation.
Refer function truth table for details
LDQM, UDQM Data Input/Output Mask DQM control output buffer in read mode and mask input data in write mode
DQ0 ~ DQ15 Data Input/Output Multiplexed data input / output pin
V DD/VSS Power Supply/Ground Power supply for internal circuit and input buffer
V DDQ/VSSQ Data Output Power/Ground Power supply for DQ
NC No Connection No connection
VSS
DQ15
DQ14
VSSQ
DQ13
DQ12
VDDQ
DQ11
DQ10
VSSQ
DQ9
DQ8
VDDQ
NC
UDQM
CLK
CKE
NC
A9
A8
A7
A6
VDD
DQ0
DQ1
VSSQ
DQ2
DQ3
VDDQ
DQ4
DQ5
VSSQ
DQ6
DQ7
VDDQ
LDQM
WE
CAS
RAS
CS
A11
A10
A0
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
50pin TSOP-II
400mil x 825mil
0.8mm pin pitch
A2
A3
VDD
A5
A4
VSS
23
24
25
28
27
26
