LCD TV Service Manual

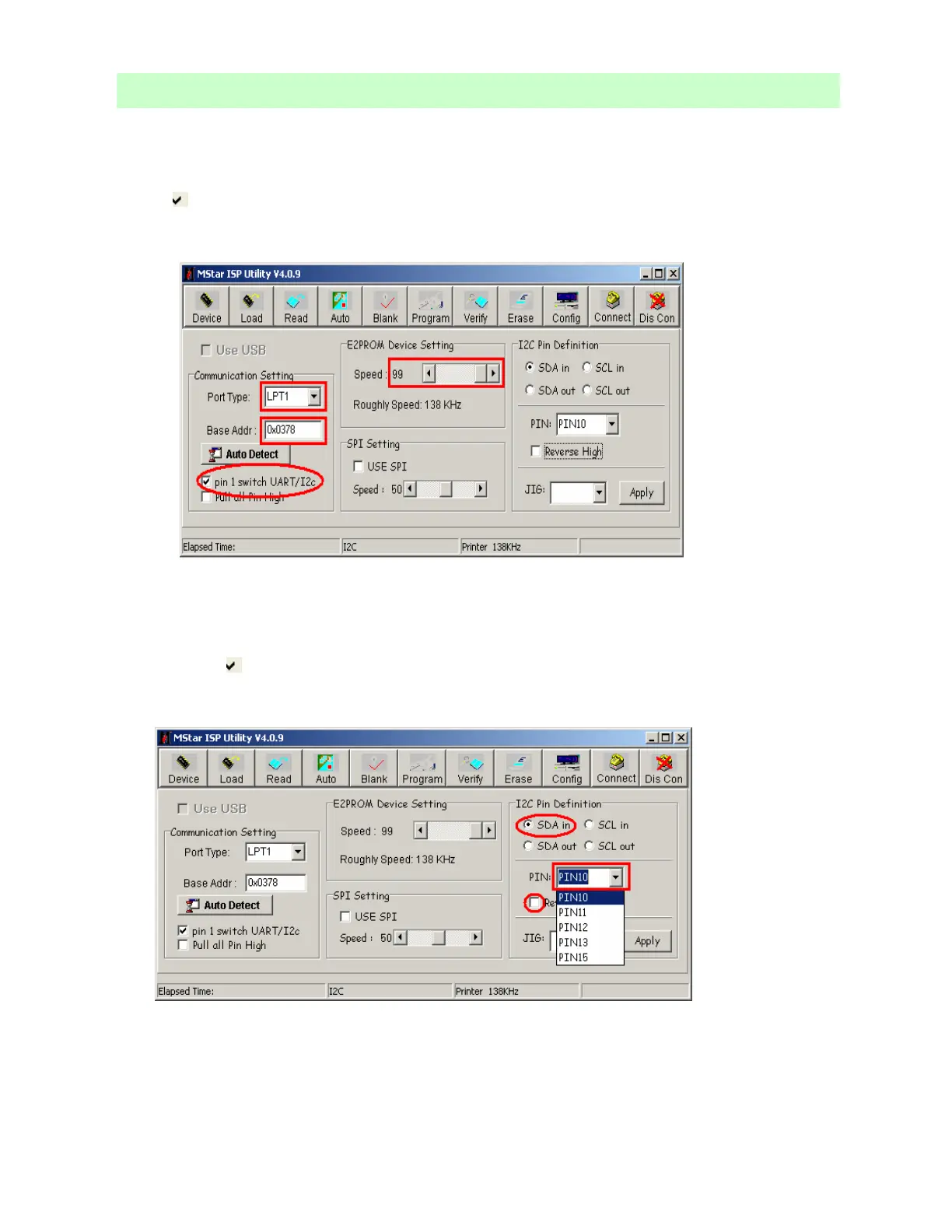

Click the Config button. And then a dialog window will show as below.
Port Type setting is LPT1
Base Addr setting is 0x378
Draw on the front of “pin 1 switch UART/I2c”
Speed setting is 99
As following
Choose“SDA in”and setting “PIN” is “PIN10”。
Notes:
Do not draw on the front of “Reverse High”。
As following
To Next Page
